Overview

This integration allows your users to sign in to Fiddler using their existing PingOne account, without needing a separate Fiddler password. Users are automatically provisioned on their first successful login — no manual invitations required.

​
Prerequisites

Before starting, ensure you have:
  • PingOne Administrator Access: Permissions to create and configure applications in your PingOne environment.
  • Fiddler AuthN Administrator Access: Org Owner role in Fiddler’s AuthN management console.
  • Deployment Information: The hostname of your Fiddler deployment, e.g. idpexample.dev.fiddler.ai.

​
Configuring PingOne and Fiddler for Integration

1

Fiddler AuthN Console Sign-in

The URL to the Fiddler AuthN management console is your Fiddler instance base URL prepended with authn-. For example, if your Fiddler base URL is https://idpexample.dev.fiddler.ai then you will access the AuthN management console at https://authn-idpexample.dev.fiddler.ai.
Sign in using the AuthN console Org Owner user account credentials provided by your Fiddler representative.Fiddler AuthN console sign-in page
2

Select Your Organization

Ensure your organization is selected in the dropdown. You may see the fiddler organization, but this is reserved for system use and should not be edited. Here we are using the idpexample organization.Fiddler AuthN console home page
3

Navigate to Identity Providers in Settings

Select Settings tab from the top menu and then select Identity Providers from the left navigation menu.Fiddler AuthN console add provider page
4

Add and Configure New SAML Provider

  1. Select the SAML option in the Add provider section, which brings up the Sign in with SAML form.
  2. Enter a name for the integration. This name is displayed on the SSO login button on the Fiddler sign-in page, so choose one your users will recognize.
  3. Paste the following placeholder value into the Metadata XML text area. AuthN needs it to generate the URLs used when you create the PingOne app integration; you will replace it in a later step.
File: Placeholder Metadata XML value
PD94bWwgdmVyc2lvbj0iMS4wIj8+DQo8bWQ6RW50aXR5RGVzY3JpcHRvciB4bWxuczptZD0idXJuOm9hc2lzOm5hbWVzOnRjOlNBTUw6Mi4wOm1ldGFkYXRhIg0KICAgICAgICAgICAgICAgICAgICAgdmFsaWRVbnRpbD0iMjAyNS0wOC0zMFQxMzo0NToxM1oiDQogICAgICAgICAgICAgICAgICAgICBjYWNoZUR1cmF0aW9uPSJQVDYwNDgwMFMiDQogICAgICAgICAgICAgICAgICAgICBlbnRpdHlJRD0iaHR0cDovL2xvY2FsaG9zdDo4MDgwIj4NCiAgICA8bWQ6U1BTU09EZXNjcmlwdG9yIEF1dGhuUmVxdWVzdHNTaWduZWQ9ImZhbHNlIiBXYW50QXNzZXJ0aW9uc1NpZ25lZD0iZmFsc2UiIHByb3RvY29sU3VwcG9ydEVudW1lcmF0aW9uPSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6cHJvdG9jb2wiPg0KICAgICAgICA8bWQ6TmFtZUlERm9ybWF0PnVybjpvYXNpczpuYW1lczp0YzpTQU1MOjEuMTpuYW1laWQtZm9ybWF0OnVuc3BlY2lmaWVkPC9tZDpOYW1lSURGb3JtYXQ+DQogICAgICAgIDxtZDpBc3NlcnRpb25Db25zdW1lclNlcnZpY2UgQmluZGluZz0idXJuOm9hc2lzOm5hbWVzOnRjOlNBTUw6Mi4wOmJpbmRpbmdzOkhUVFAtUE9TVCINCiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBMb2NhdGlvbj0iaHR0cDovL2xvY2FsaG9zdDo4MDgwL2NvbnN1bWUvZGF0YSINCiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBpbmRleD0iMSIgLz4NCiAgICAgICAgDQogICAgPC9tZDpTUFNTT0Rlc2NyaXB0b3I+DQo8L21kOkVudGl0eURlc2NyaXB0b3I+

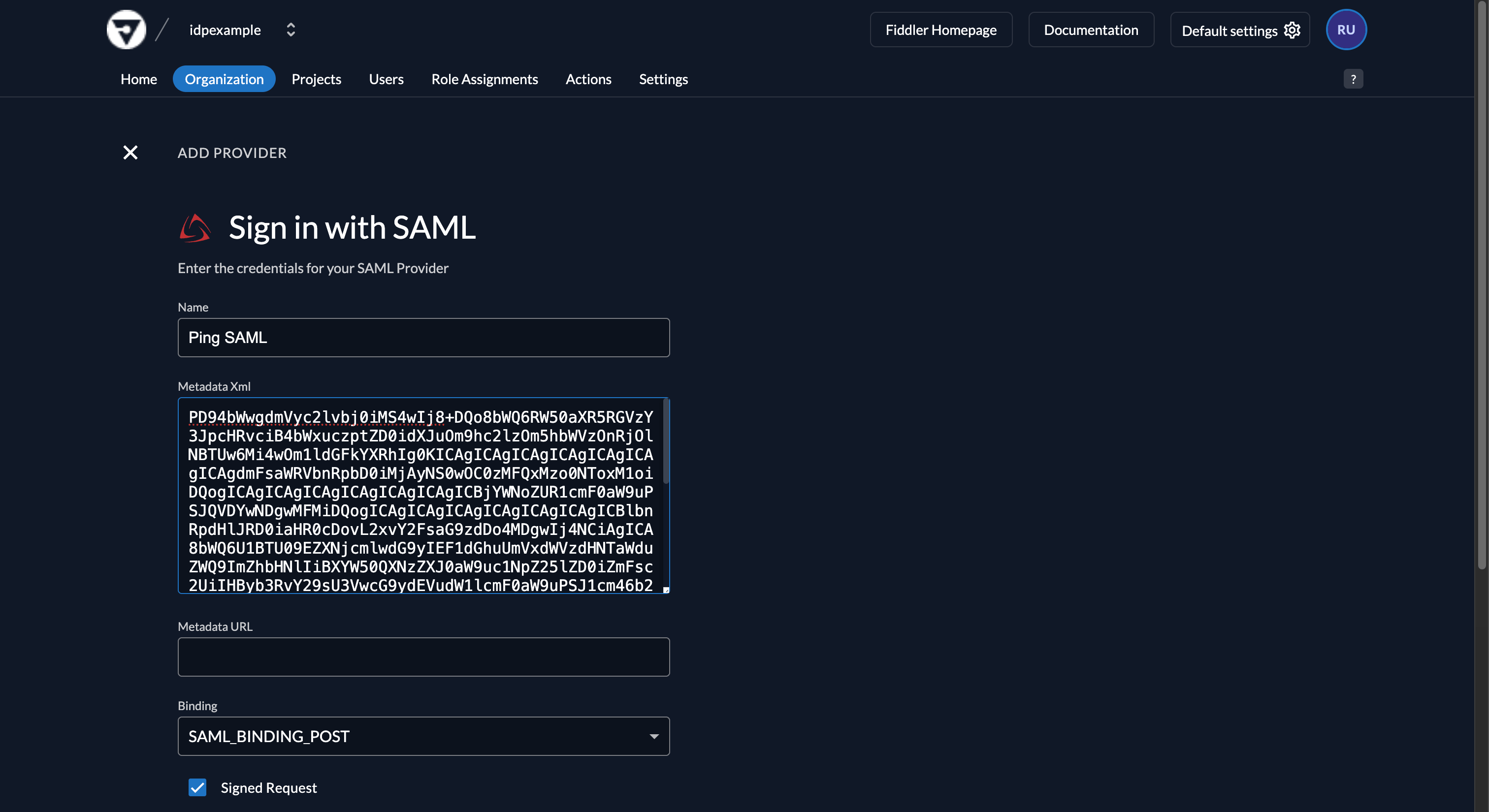

Fiddler AuthN console new SAML configuration
5

Save the SAML Provider

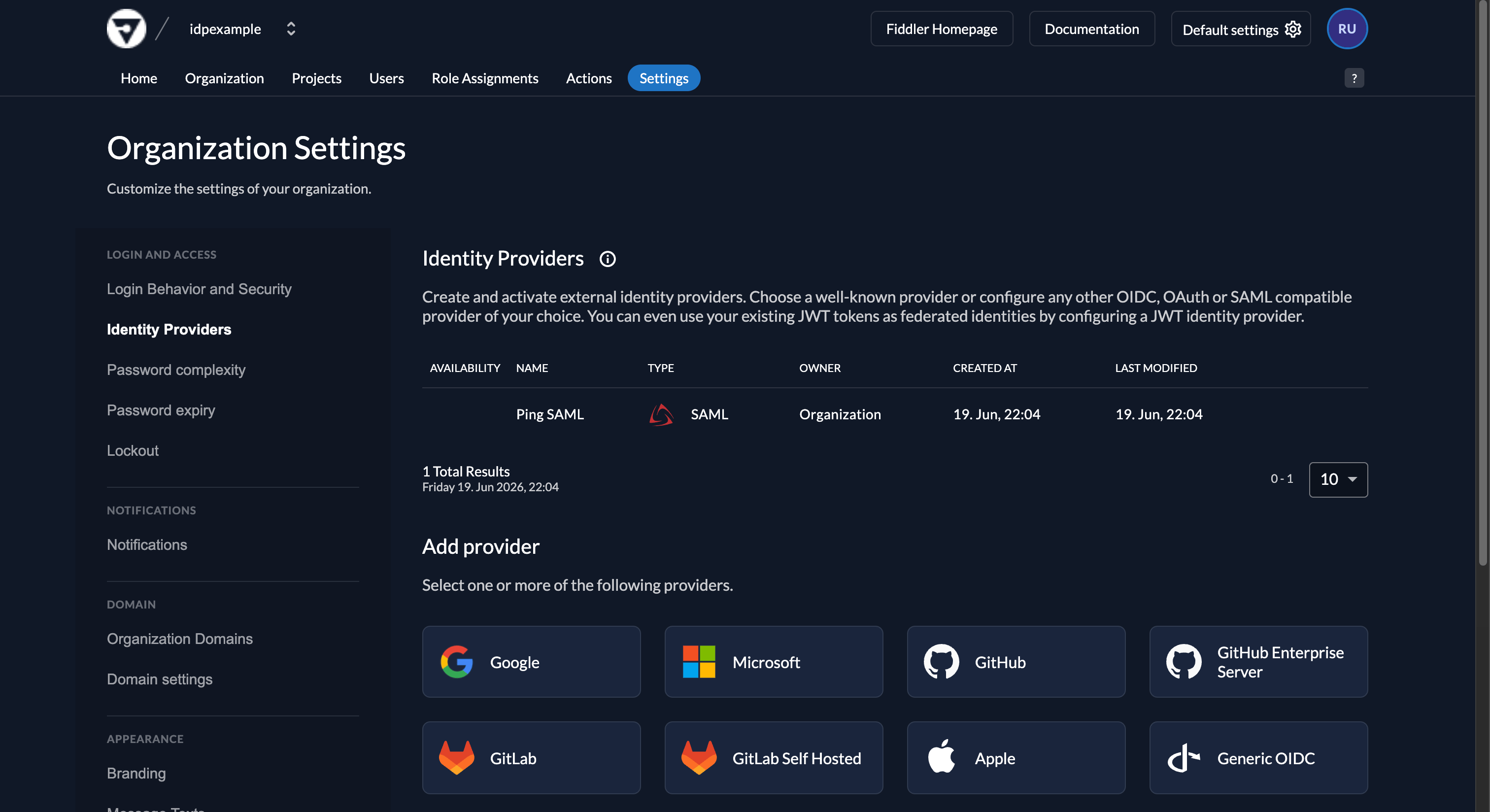

Select the Create button and then select the Save button. You will be returned to the Organization Settings page.Fiddler AuthN console saving new SAML IdP
6

Copy the SAML URLs

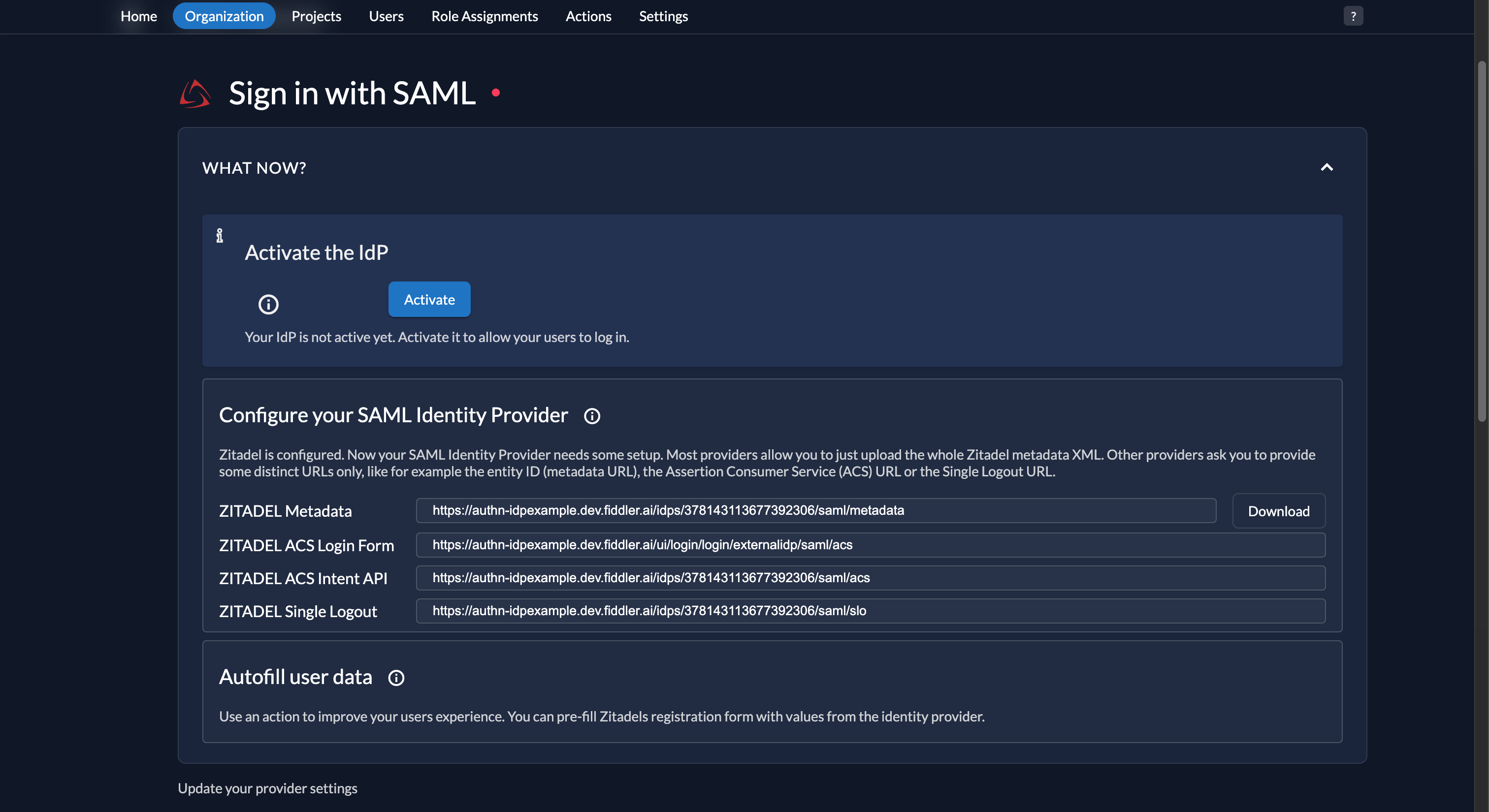

Select your IdP from the list. Four URLs are displayed — copy the following three for the PingOne app integration steps:
  • ZITADEL Metadata URL
  • ZITADEL ACS Login Form URL
  • ZITADEL ACS Intent API URL Fiddler AuthN console SAML IdP URLs required for PingOne configuration
7

Create the PingOne App

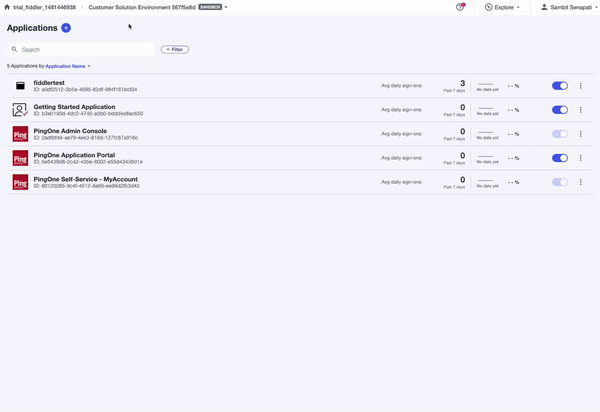

  1. In the PingOne admin console, navigate to Applications and select the + icon.

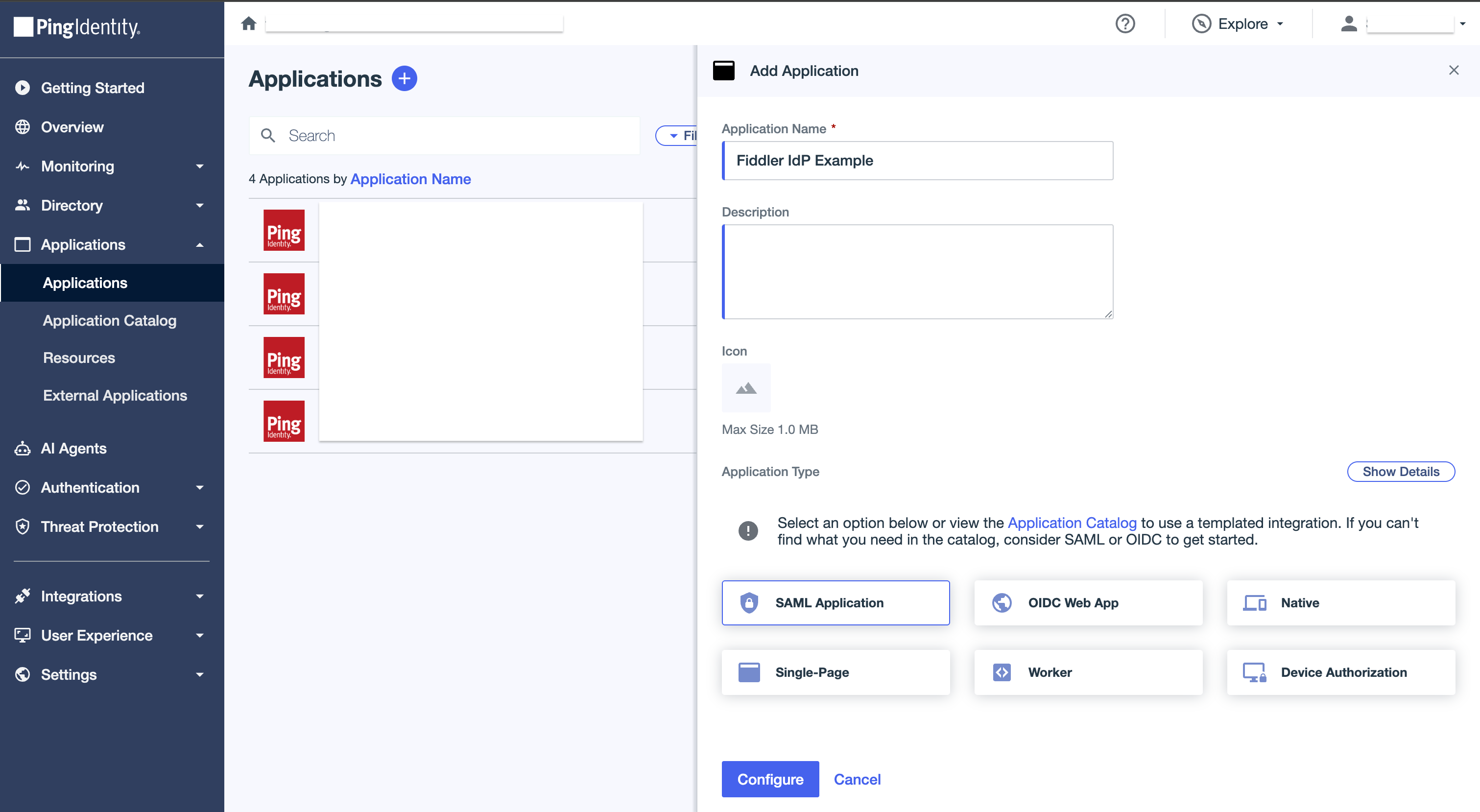

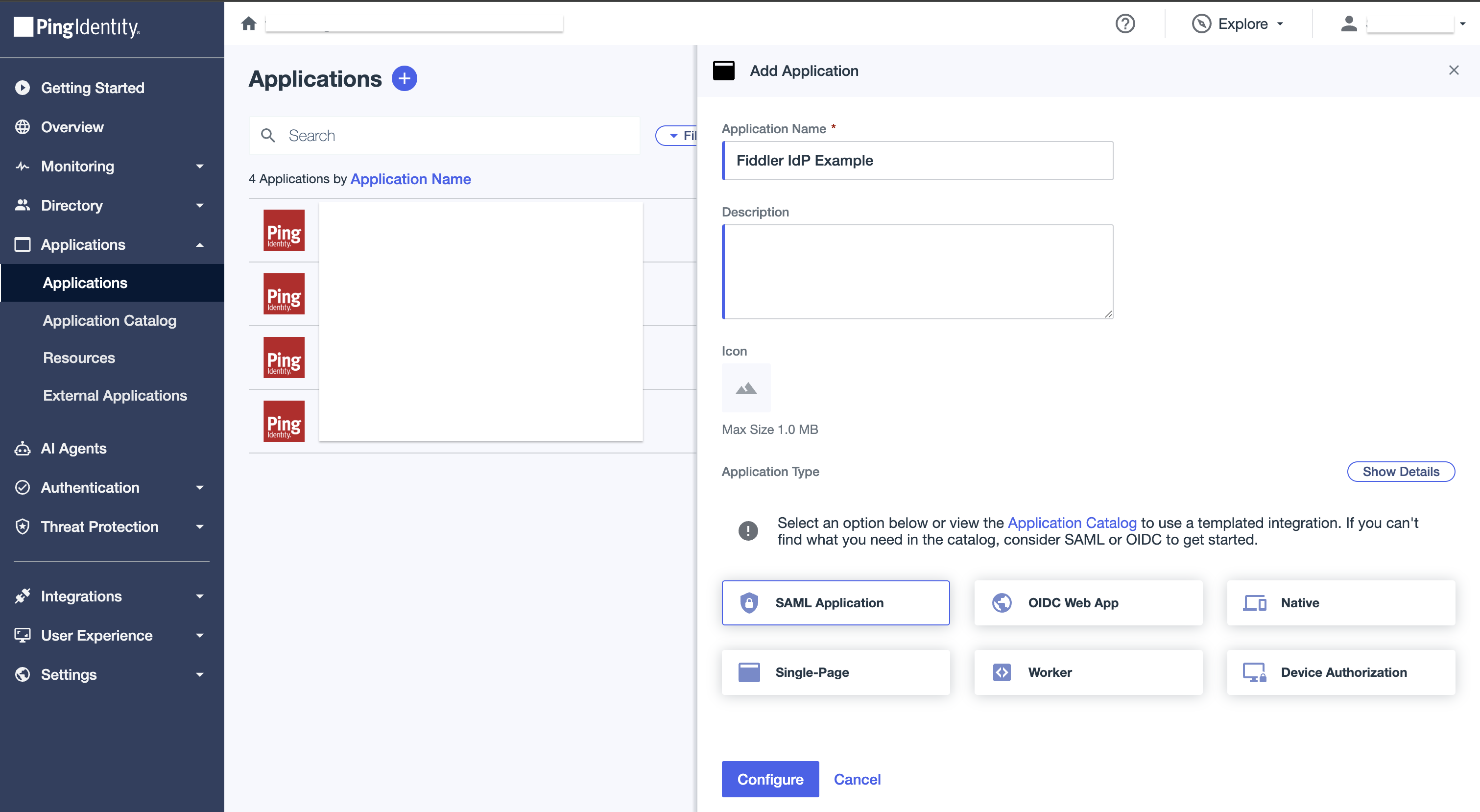

  2. Enter a name for your application, e.g. Fiddler IdP Example, select SAML Application, then select Configure. PingOne admin console SAML application name and type
8

Configure the PingOne App

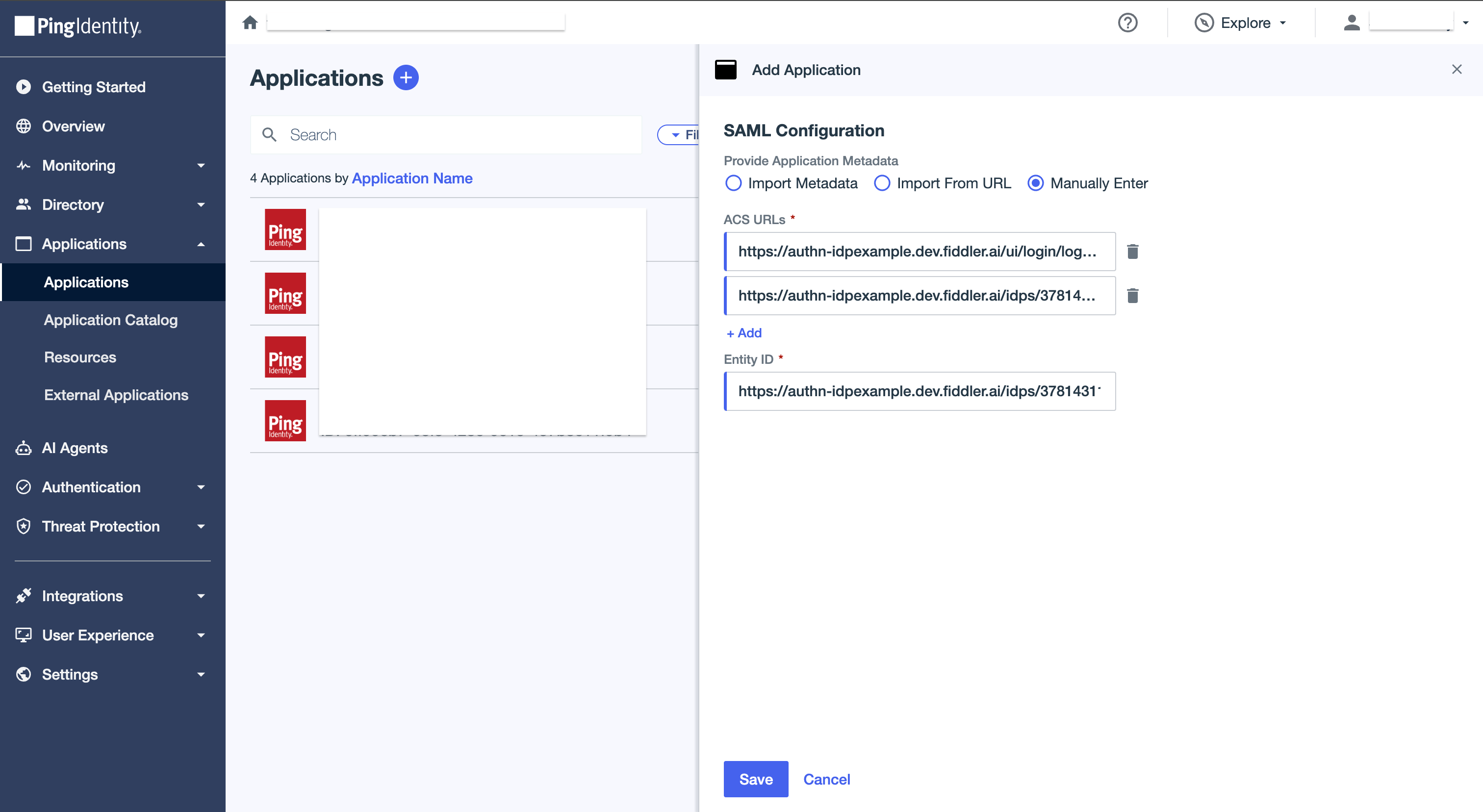

  1. Under Provide Application Metadata, select Manually Enter.
  2. Enter the ZITADEL ACS Login Form URL into the ACS URL text box.
  3. Add the ZITADEL ACS Intent API URL as a second ACS URL.
  4. Enter the ZITADEL Metadata URL into the Entity ID text box.
  5. Select Save. PingOne admin console SAML configuration
9

Configure the Application Settings

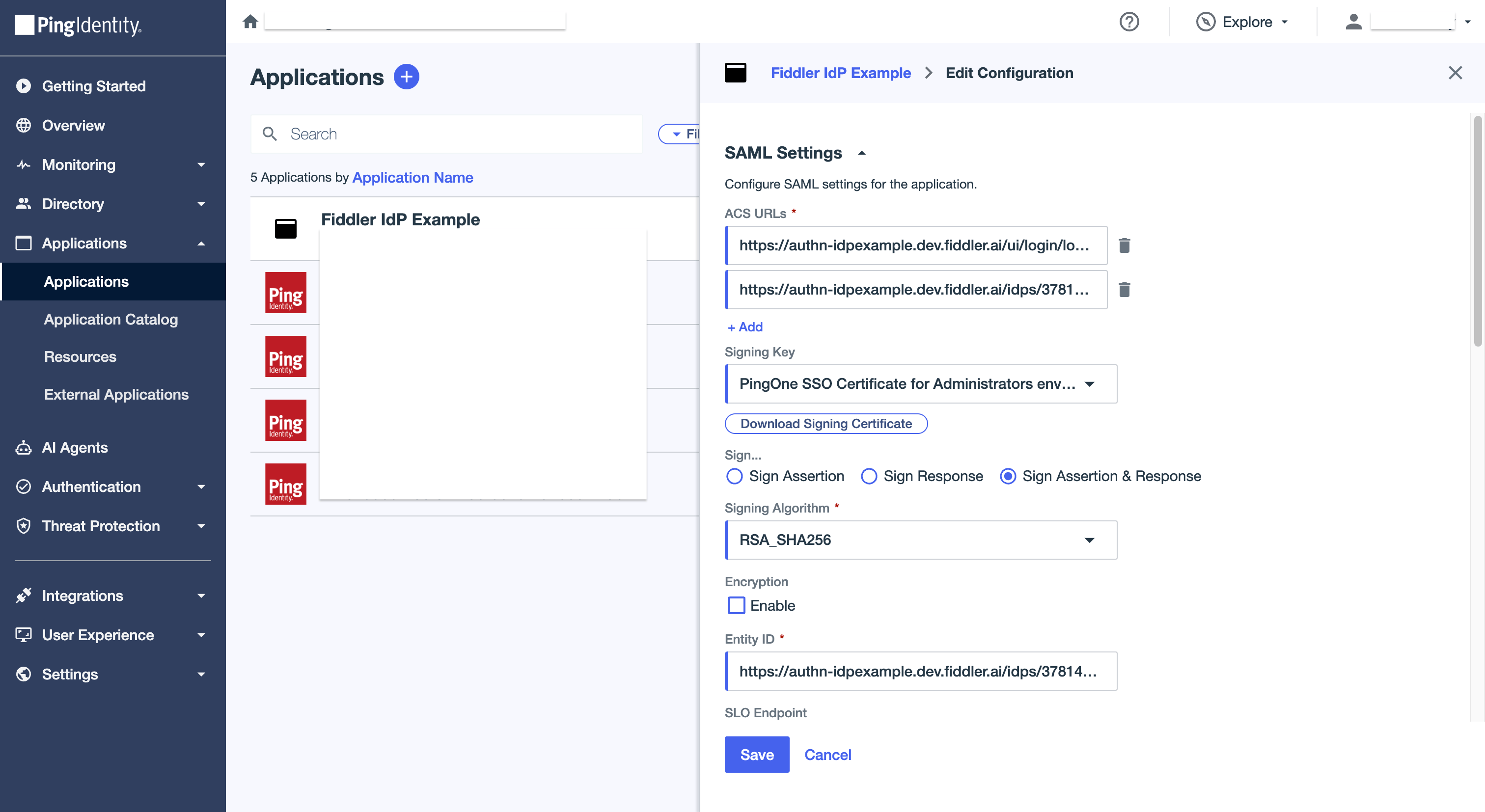

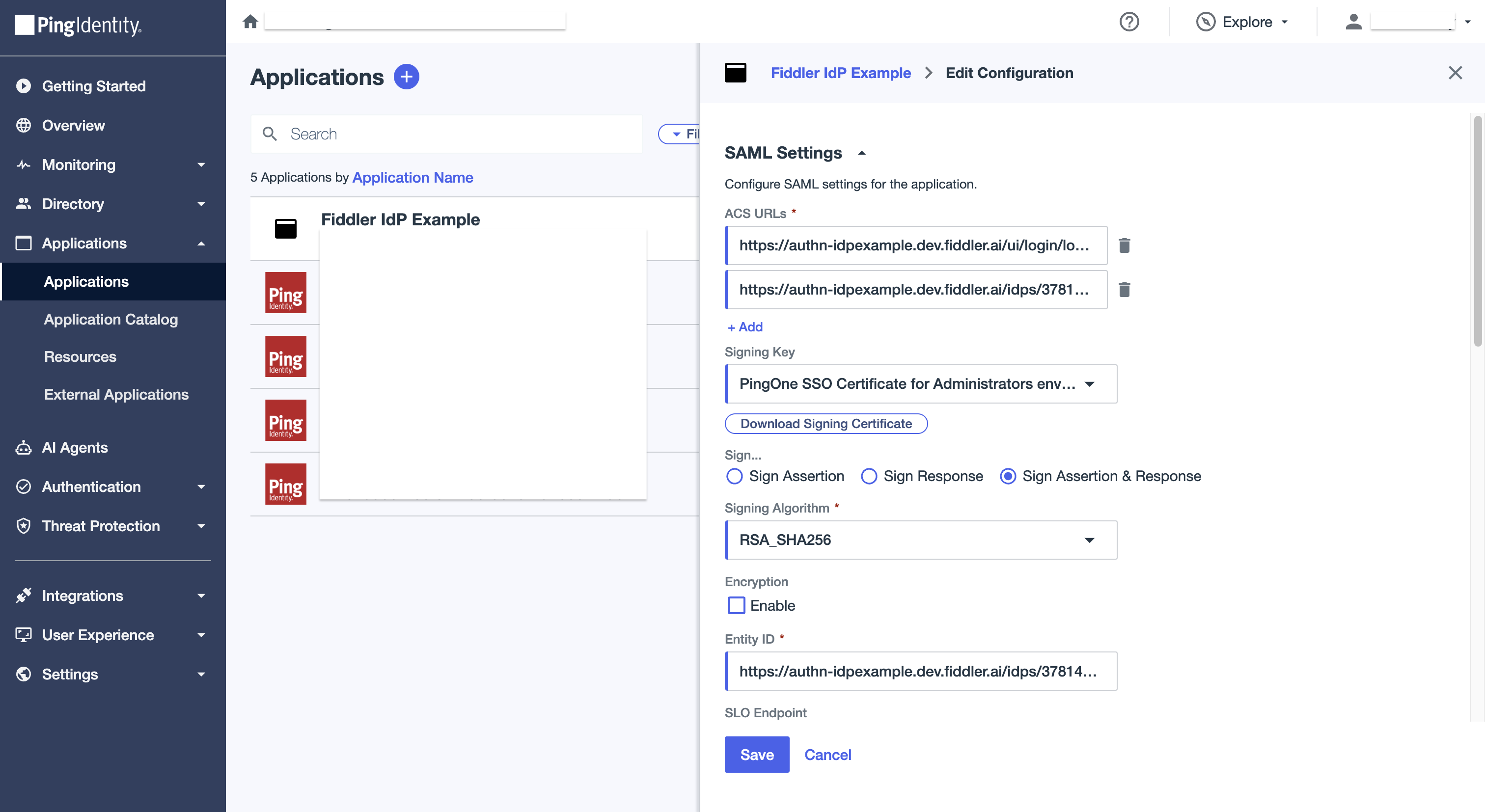

  1. Open the created application and go to the Configuration section. Select the edit icon and ensure Sign Assertion and Response is selected, then select Save. PingOne admin console sign assertion and response setting

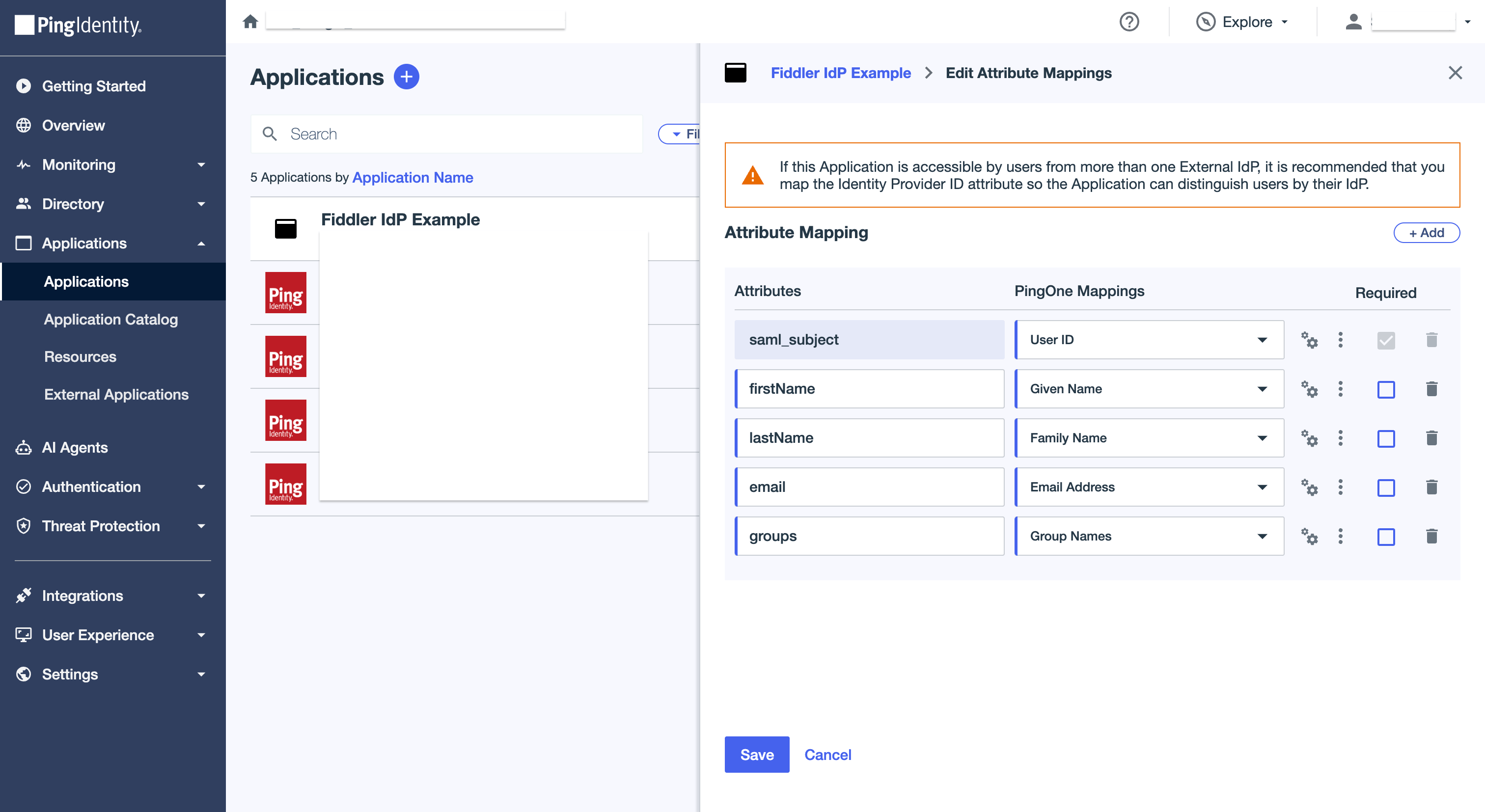

  2. Go to the Attribute Mappings section. Select the edit icon and add the following mappings, then select Save:
    1. Name=email, Value=Email Address
    2. Name=firstName, Value=Given Name
    3. Name=lastName, Value=Family Name
    4. Name=groups, Value=Group Names
    PingOne admin console SAML attribute mappings
  3. At the top of the application, toggle it to Active.

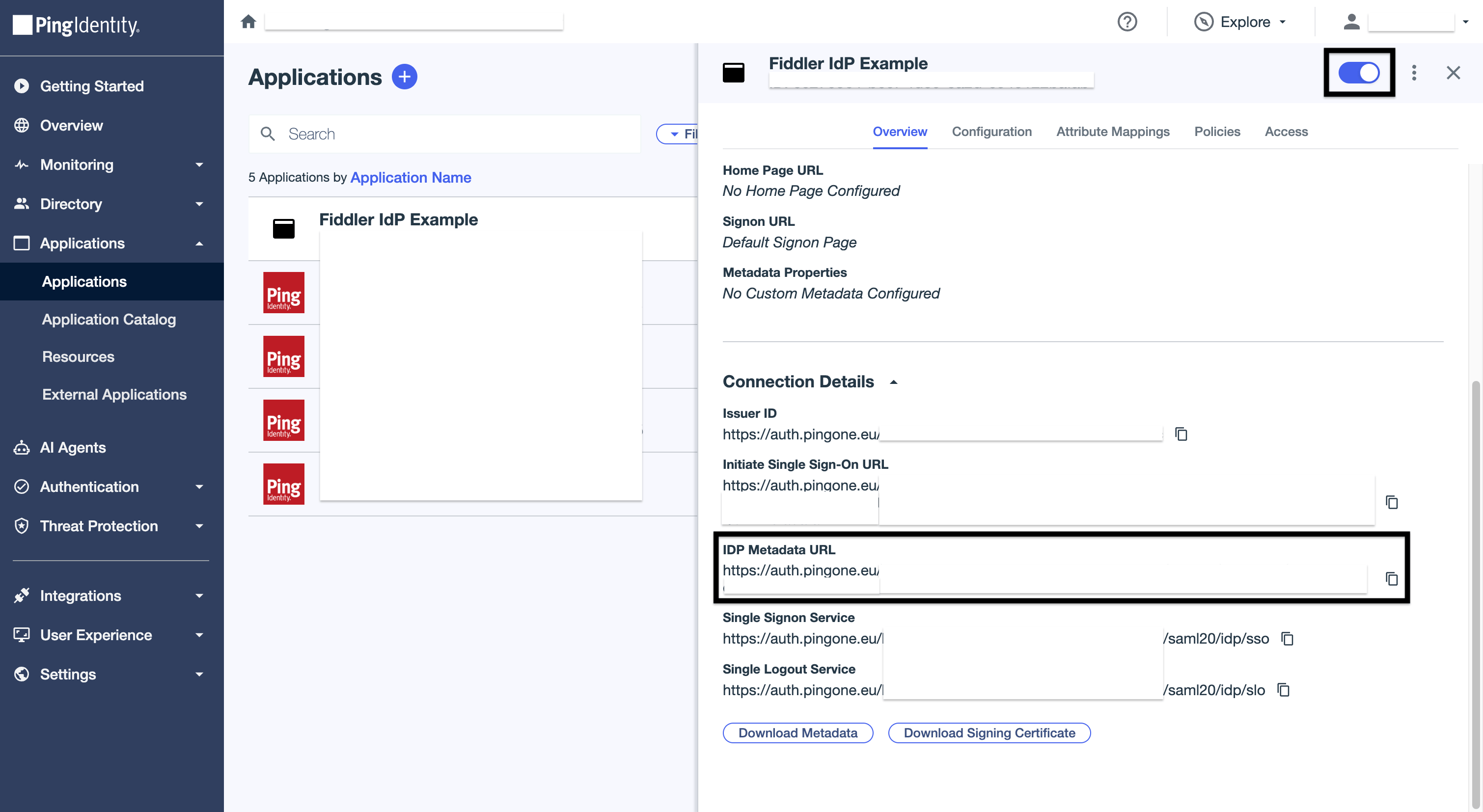

  4. Go to the Overview section, then under Connection Details, copy the IDP Metadata URL. PingOne admin console application overview with IDP Metadata URL
10

Replace the Placeholder Metadata XML

  1. Return to the identity provider form in the Fiddler AuthN console (where you left off in step 4 — Add and Configure New SAML Provider).
  2. Clear the Metadata XML text area.

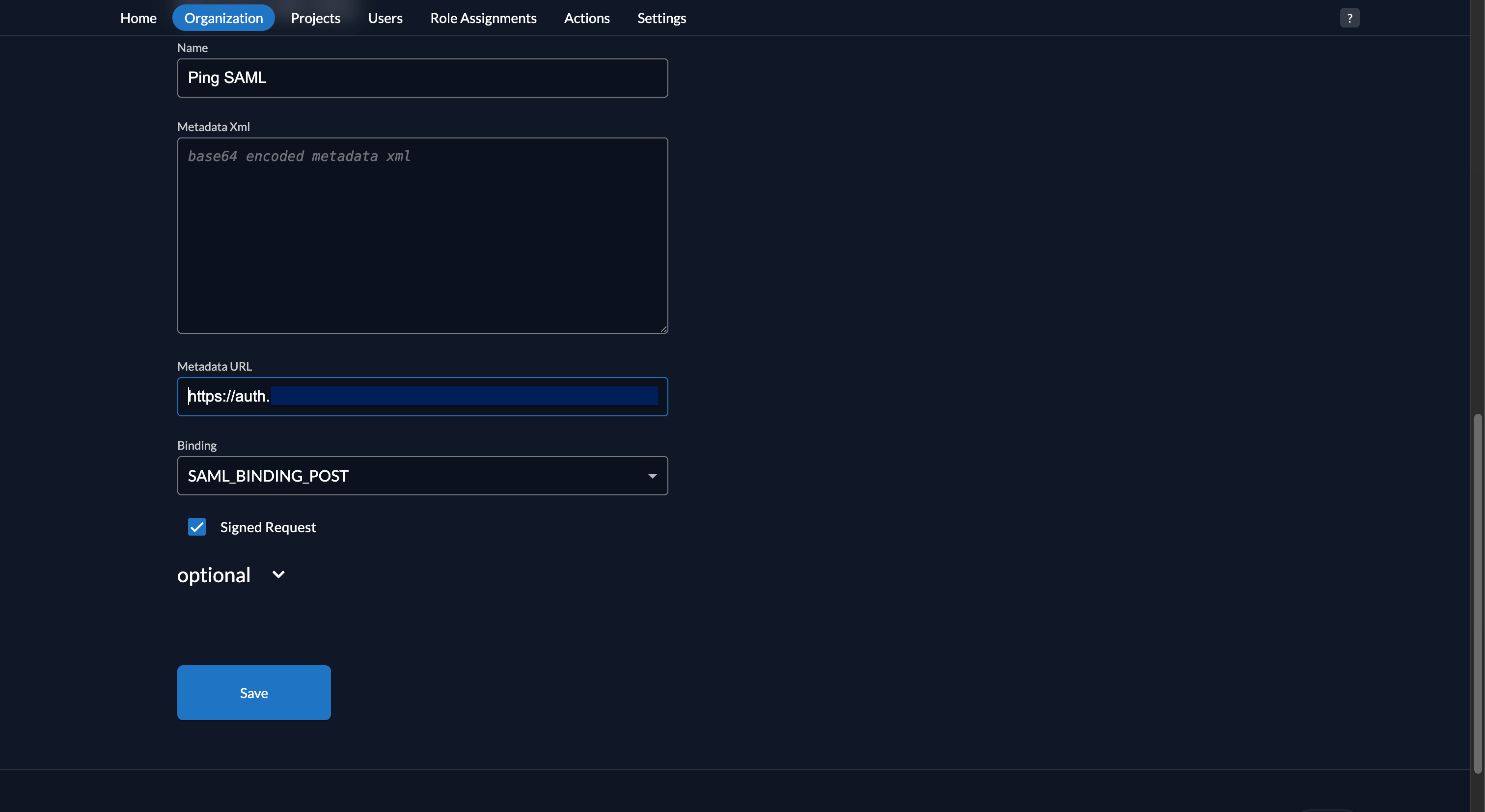

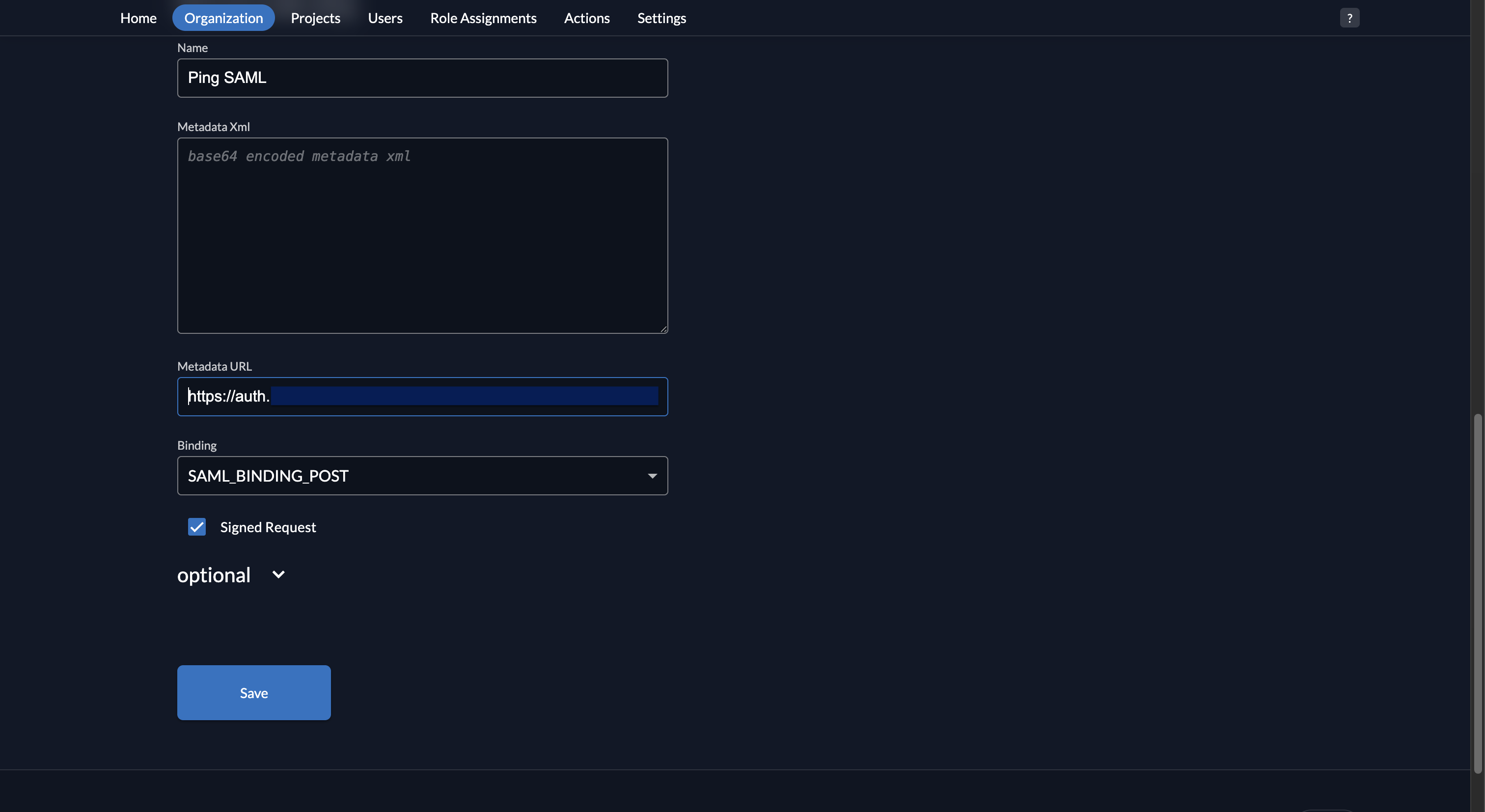

  3. Paste the IDP Metadata URL copied from PingOne into the Metadata URL text box. Fiddler AuthN console Metadata URL
11

Configure Additional Parameters

  1. Expand the optional section.
  2. Ensure the Automatic create and Automatic update checkboxes are selected.
  3. Set the Determines whether an identity will be prompted to be linked to an existing account dropdown to Check for existing Username. Fiddler AuthN console automatic create/update and check existing username settings
12

Save the Configuration Changes

Select the Save button. You will be returned to the Organization Settings page.Fiddler AuthN console with newly created PingOne SAML IdP
13

Activate the PingOne SAML IdP

  1. Select your IdP from the list and select the Activate button on the identity provider page. Fiddler AuthN console activate new PingOne SAML IdP
  2. Close the settings and then select Login Behavior and Security from the left nav menu and ensure the External login allowed checkbox is selected. Fiddler AuthN console allow external login behavior
  3. Select the Save button. Fiddler AuthN console external login allowed
14

Create a Custom Action

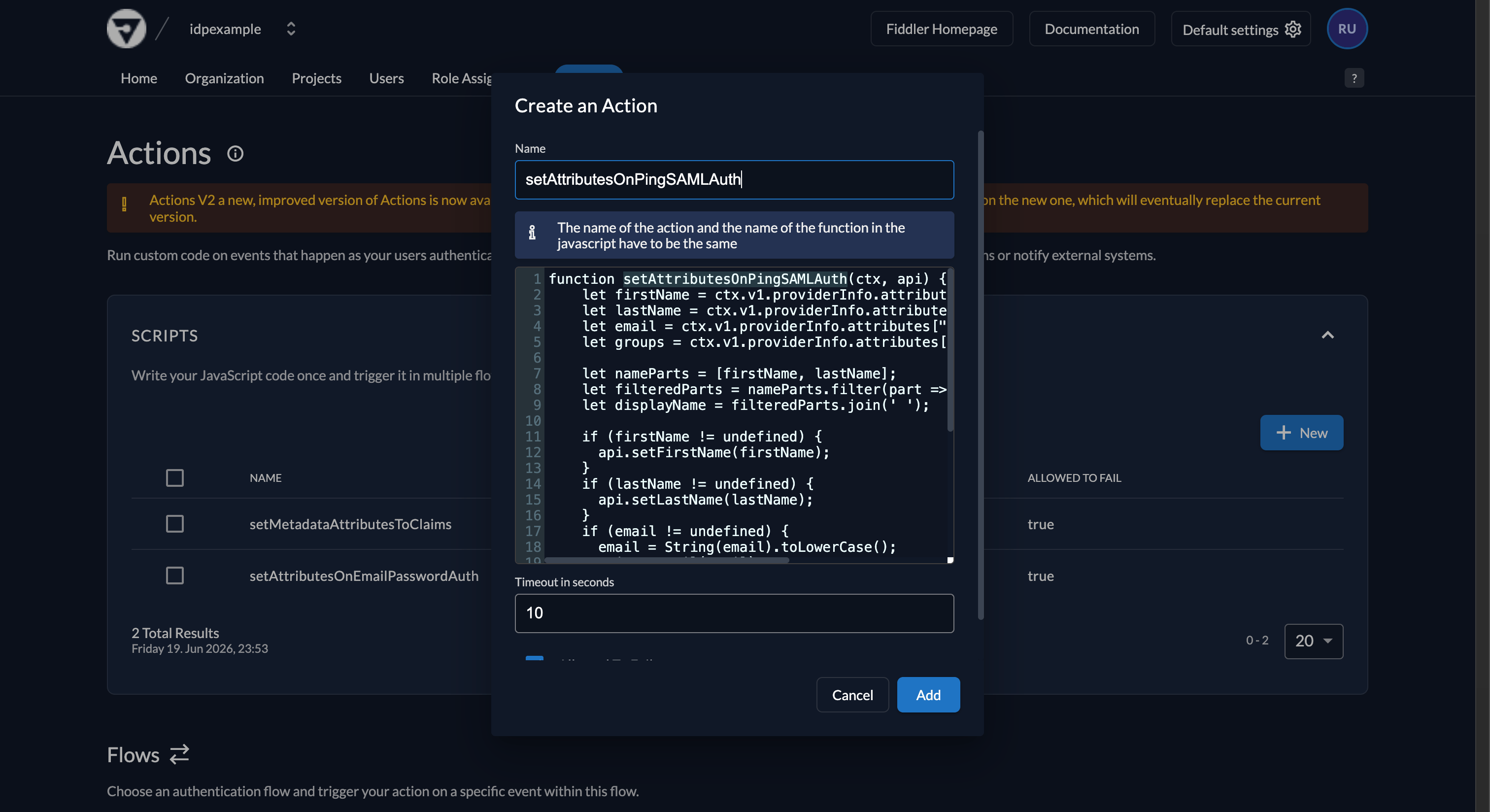

Select the Actions tab from the top menu.Fiddler AuthN console new custom Action script
  1. Select the New button in the Scripts section to create a new action script.
  2. Copy the PingOne SAML Action Script below and paste it into the script text area.
  3. Enter setAttributesOnPingSAMLAuth in the Name text box.
  4. Select the Add button.
File: PingOne SAML Action Script
function setAttributesOnPingSAMLAuth(ctx, api) {
    let firstName = ctx.v1.providerInfo.attributes["firstName"];
    let lastName = ctx.v1.providerInfo.attributes["lastName"];
    let email = ctx.v1.providerInfo.attributes["email"];
    let groups = ctx.v1.providerInfo.attributes["groups"];

    let nameParts = [firstName, lastName];
    let filteredParts = nameParts.filter(part => part);
    let displayName = filteredParts.join(' ');

    if (firstName != undefined) {
      api.setFirstName(firstName);
    }
    if (lastName != undefined) {
      api.setLastName(lastName);
    }
    if (email != undefined) {
      email = String(email).toLowerCase();
      api.setEmail(email);
      api.setEmailVerified(true);
      api.setPreferredUsername(email);
    }
    if (displayName) {
      api.setDisplayName(displayName);
    }

    api.v1.user.appendMetadata('fiddler_authentication_type', 'SSO:PING:SAML');
    if (groups === null || groups === undefined) {
      groups = []
    }
    api.v1.user.appendMetadata('fiddler_groups', groups);
}
15

Configure the Action Trigger

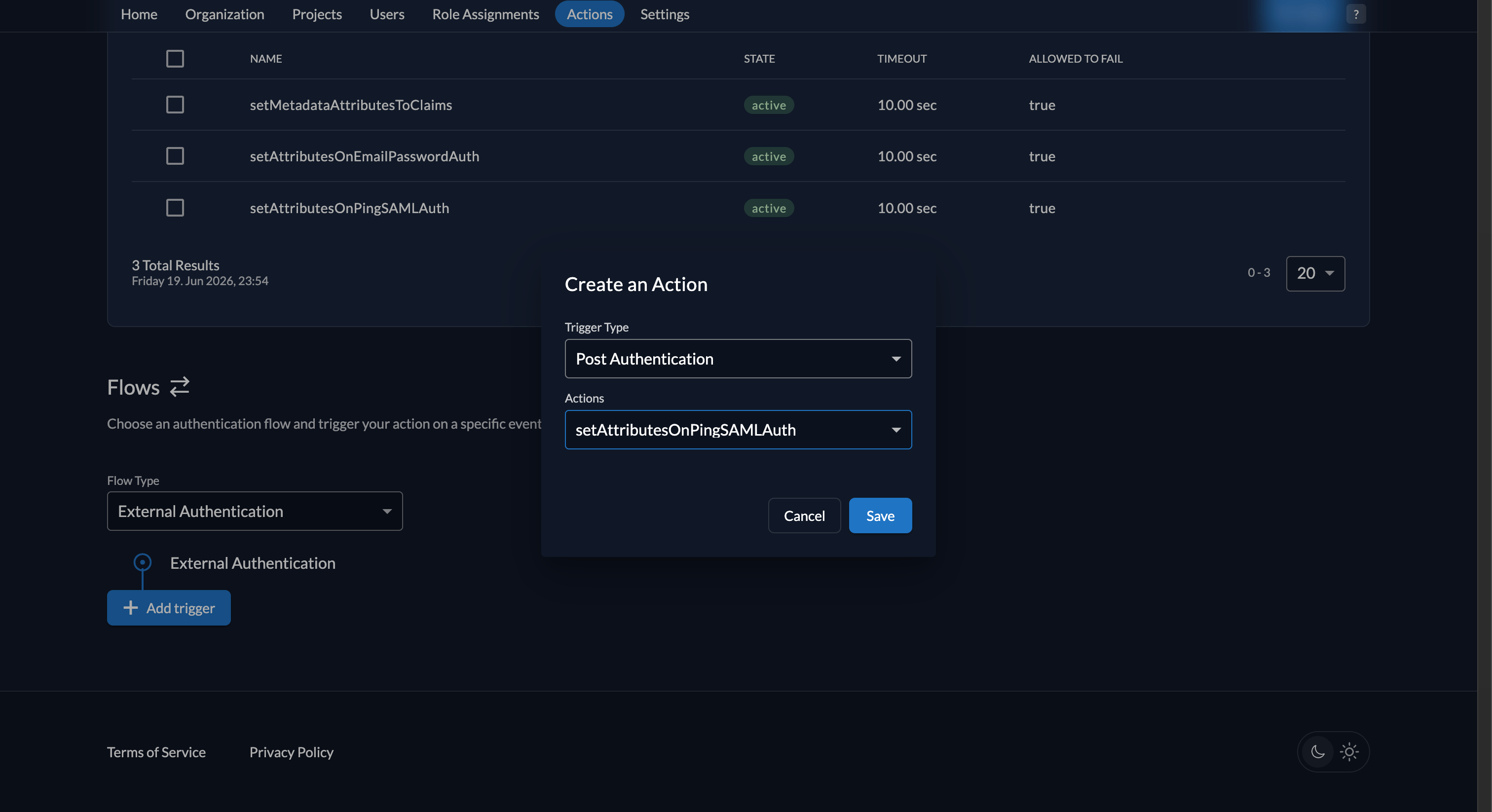

Scroll down to the Flows section.Fiddler AuthN console new Action trigger creation
  1. Select the External Authentication option for the Flow Type dropdown.
  2. Select the + Add trigger button.
  3. Select the Post Authentication option for the Trigger Type dropdown.
  4. Select the setAttributesOnPingSAMLAuth option for the Actions dropdown.
  5. Select the Save button.
16

Set the Organization SSO Authentication Type

Add an organization metadata key so Fiddler can correctly identify and process this SSO connection. Set this once during setup.
  1. Go to the Metadata section and select Edit. Fiddler AuthN console organization metadata section

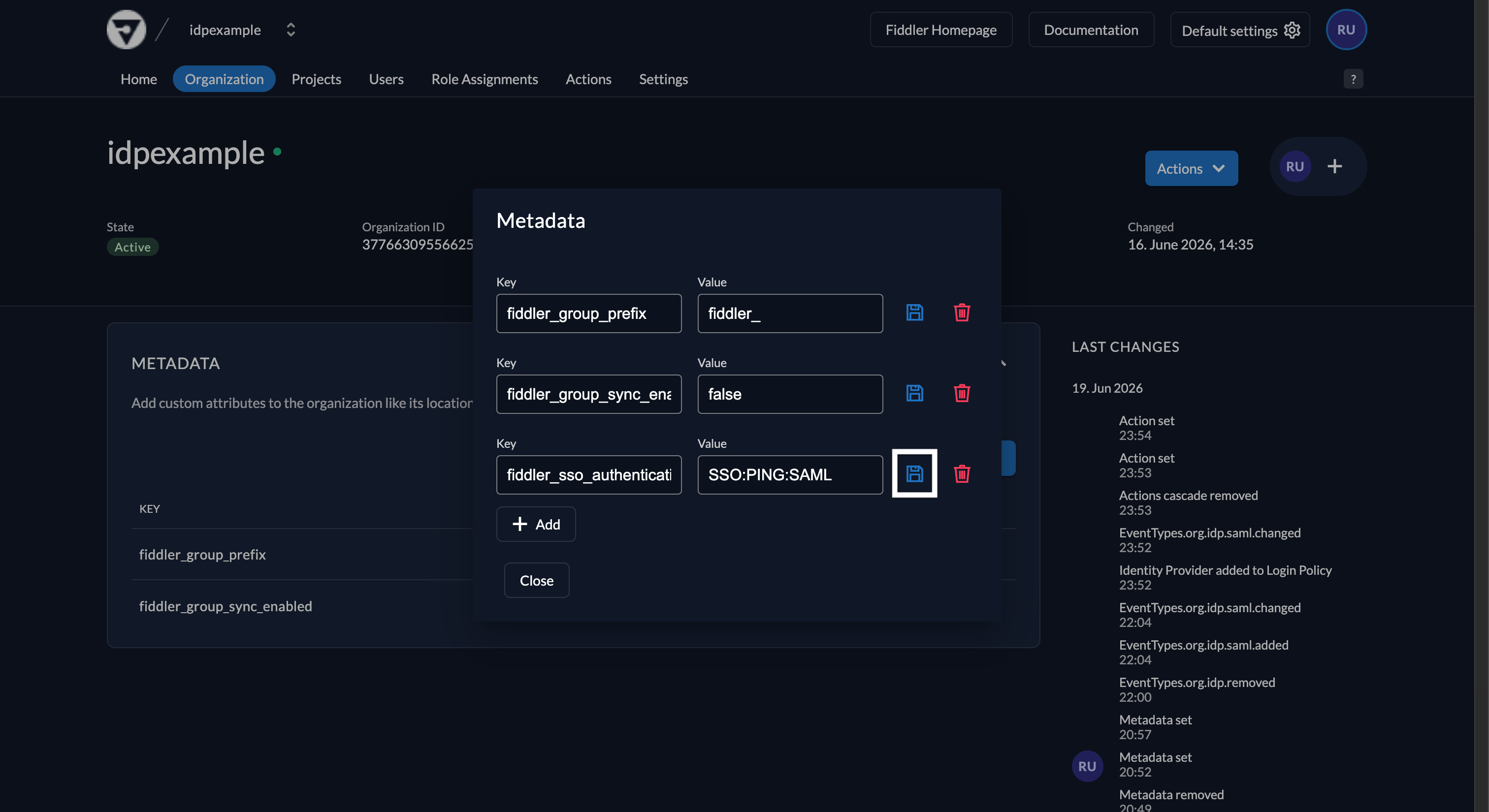

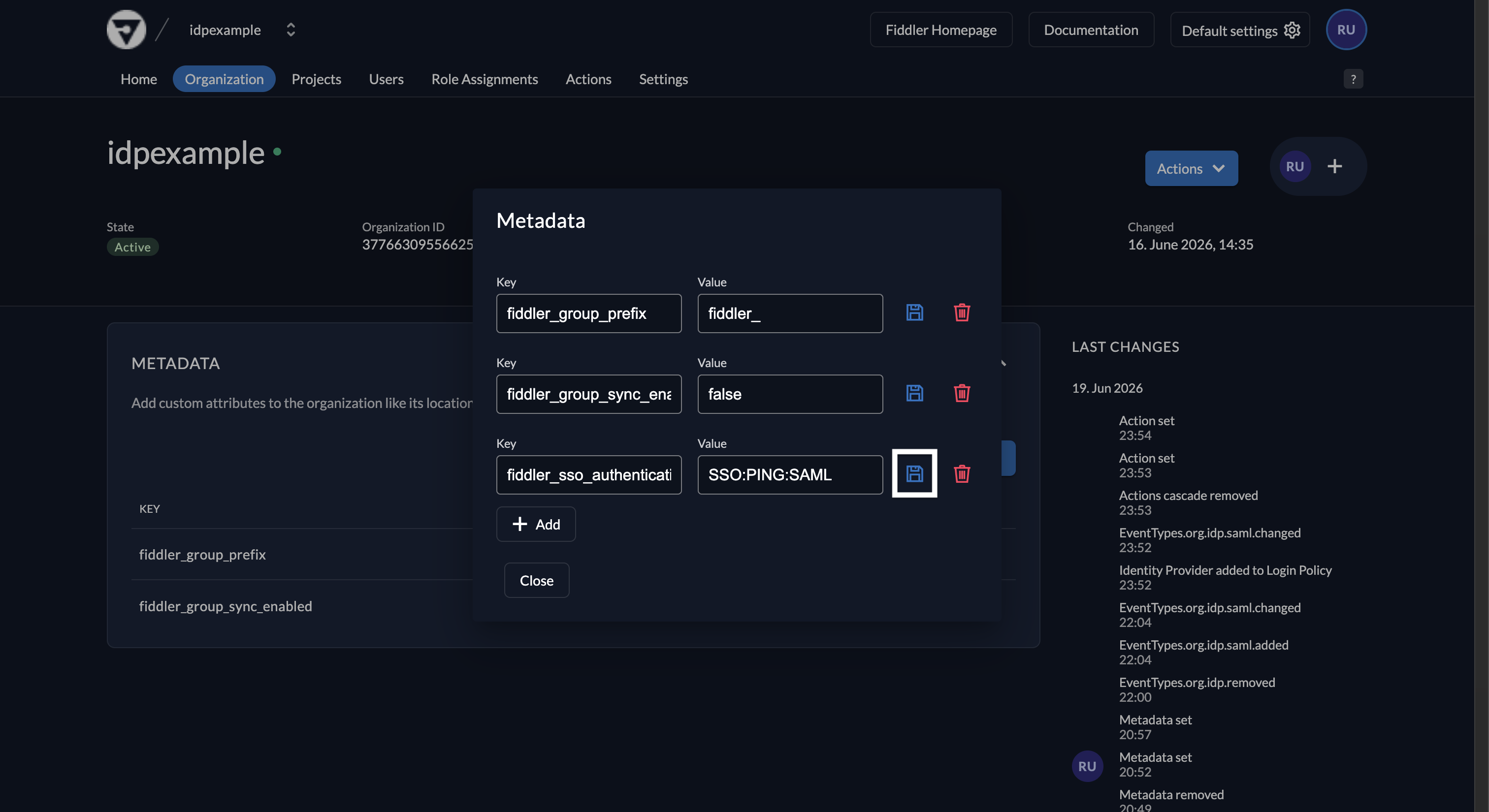

  2. Select the Add button, then enter the key fiddler_sso_authentication_type with the value SSO:PING:SAML. Fiddler AuthN console organization metadata with PingOne SAML authentication type
  3. Select the Save button next to the new entry.
17

Validate the Integration

Before validating, ensure your PingOne user account is assigned to the new PingOne application you created.
  1. Open your Fiddler URL (e.g. https://idpexample.dev.fiddler.ai).

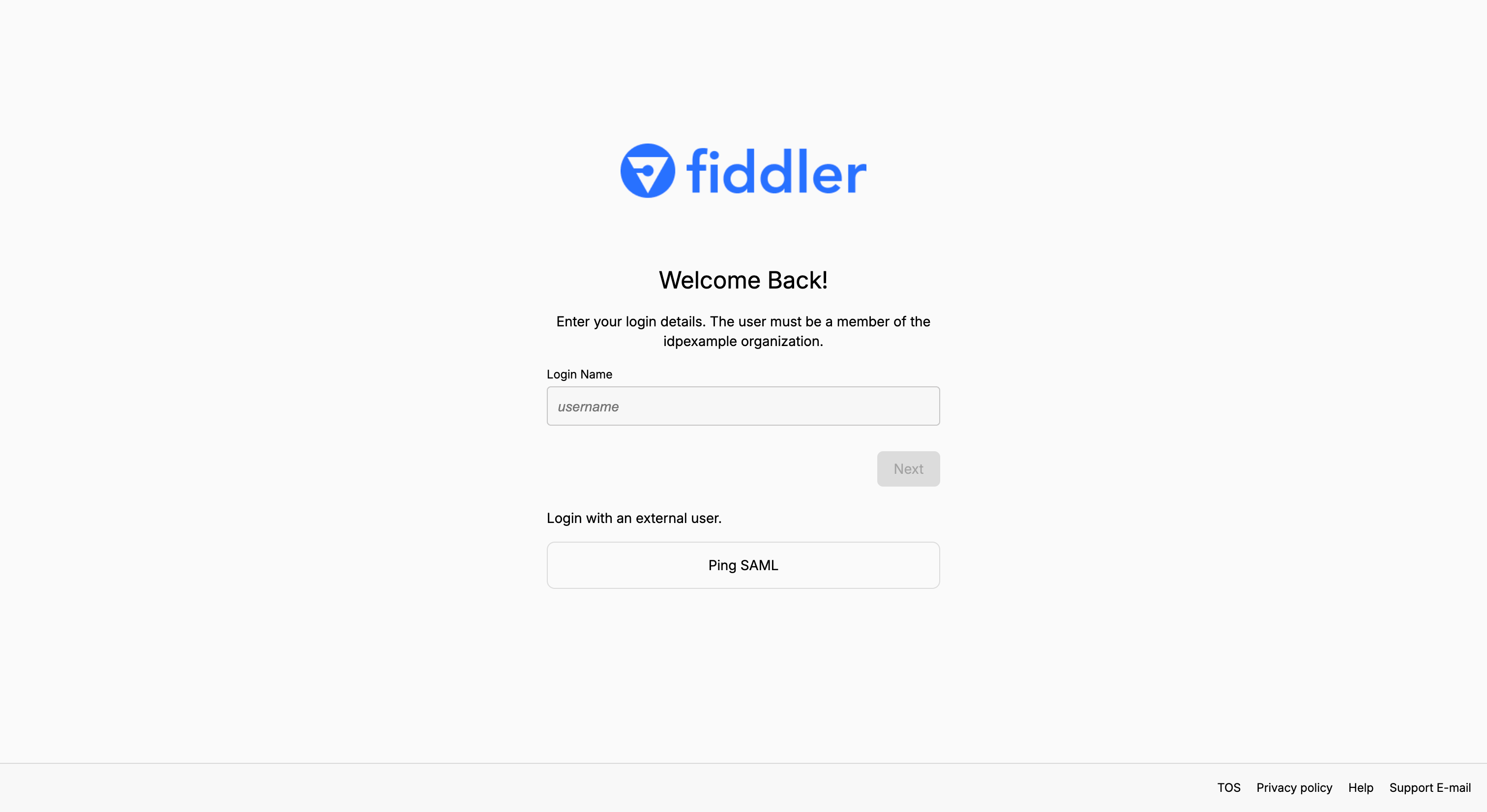

  2. Ensure you see the Fiddler sign-in page and that it displays an SSO login button labeled with the name you configured (e.g. PingOne SAML). Fiddler application homepage displaying the new SSO login method in addition to the email sign-in form
  3. Select the button and confirm that the Fiddler application loads. Fiddler application landing page
The first user to sign in to the Fiddler application is automatically assigned the Fiddler Org Admin role; subsequent members are Org Members by default.

​
Getting Help

If sign-in fails, check the PingOne Audit Log (Monitoring → Audit) for the failed attempt and its reason. For Fiddler-side issues, see the SSO Authentication Guide. If the issue persists, contact your Fiddler representative with the specific error message.

​
Important Notes

  • Data Storage: Fiddler stores the following profile attributes from PingOne: first name, last name, display name, email address, and group memberships (used to map users to Fiddler teams).
  • API Access: For programmatic API access, users create an API key from the Credentials tab in Fiddler’s Settings page.
  • Single Authentication Method: Users can only authenticate via either SSO or email authentication, not both.

​
Next Steps

After successful integration:
  • Train Users: Provide guidance on accessing Fiddler through PingOne SSO.
  • Configure Teams: Map your identity provider groups to Fiddler teams — see Mapping AD Groups to Fiddler Teams.
  • Test Group Sync: Verify automatic group synchronization is working as expected.
  • Monitor Usage: Review authentication logs and user access patterns.
