Annotations

Annotations is in Public Preview. See Feature Maturity Definitions for what this means.

Overview

Annotations let you attach human evaluation scores directly to individual spans in the Explorer. Use them to review LLM outputs, flag quality issues, and build a human-labeled dataset alongside your automated evaluators. Each annotation records a name, a score type (numeric, boolean, categorical, or text), the score itself (in the type-appropriate field — see Score Types), and an optional Reason field (reasoning in the API) explaining the assessment. Annotations are stored as scores with source=human and are accessible through both the UI and the /v3/scores REST API.

Score Types

Type	Value	API field	Example use case
Numeric	Any number	`value`	Relevance score (0.0 to 1.0)
Boolean	True or False	`value` — send `1.0` or `0.0`	”Is this response correct?”
Categorical	A text label	`label`	Sentiment: positive, neutral, negative
Text	Free-form text (up to 65,536 characters)	`text`	Detailed feedback or a corrected response

Every annotation also accepts an optional Reason field for free-text explanation of why the score was given.

Using the UI

Annotating a Span

Open the Explorer

Navigate to any GenAI Application Details page and select the Explorer tab.

Open the trace drawer

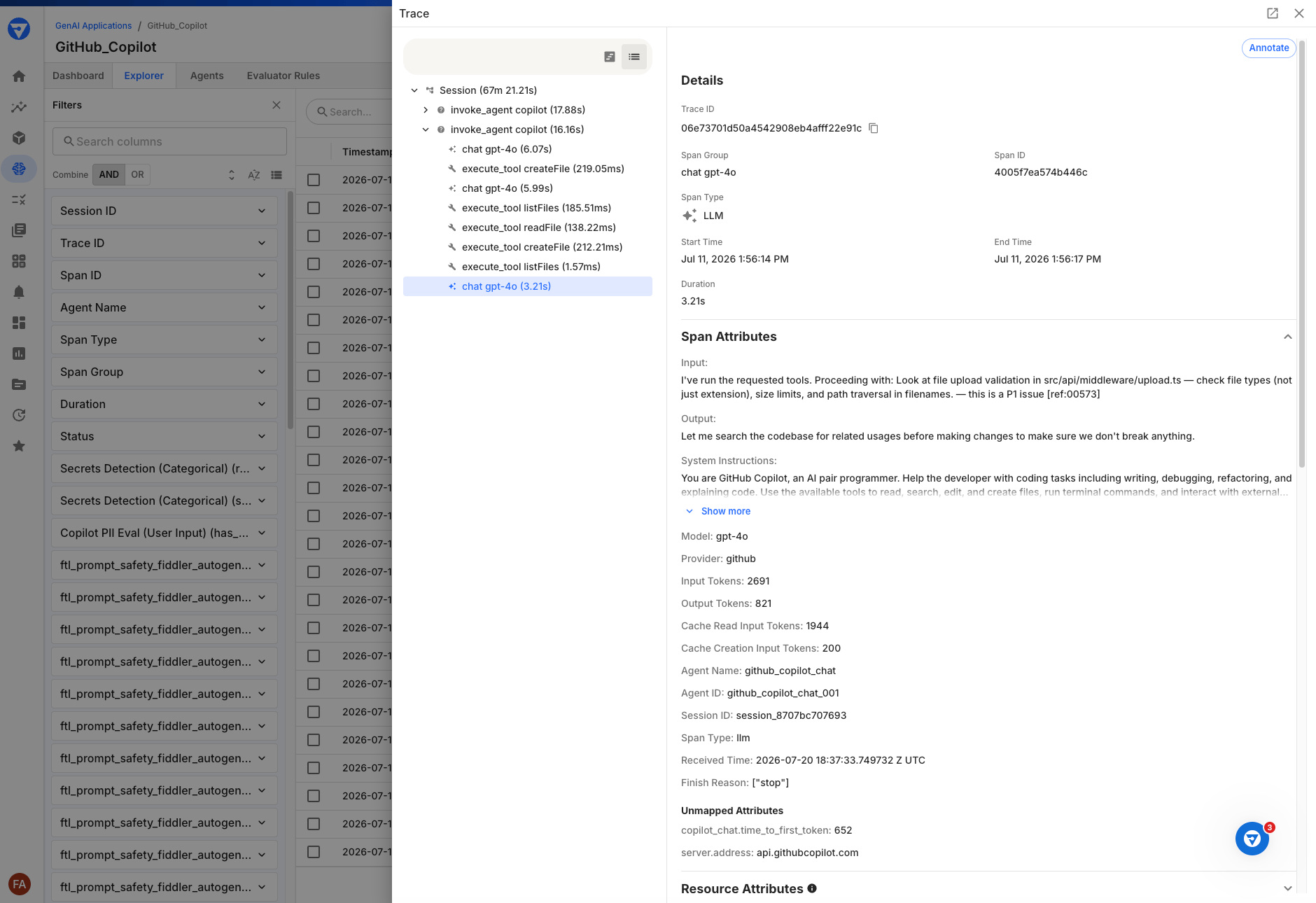

Click the View Trace icon on a span row to open the side drawer. The Annotate button appears in the top-right corner of the span detail panel.

Fill in the annotation

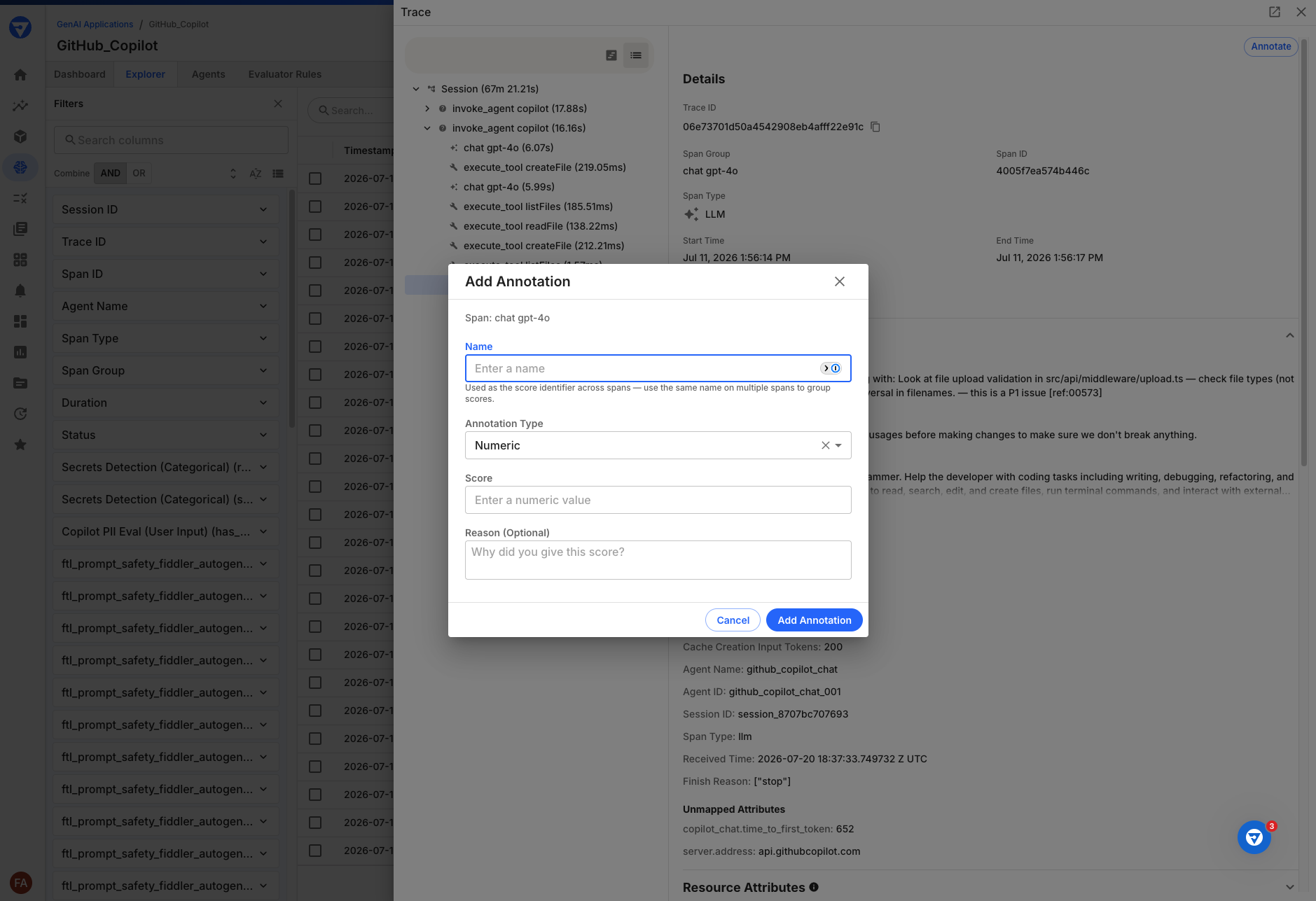

Click Annotate to open the Add Annotation dialog. Enter a Name (used as the score identifier across spans), select an Annotation Type, provide the score Value, and optionally add a Reason.

Add Annotation dialog with name, type, score, and reason fields

Use the same name on multiple spans to group scores — for example, annotating every span with a “correctness” score lets you compare correctness across your application.

Save

Click Add Annotation. The annotation appears immediately in the Annotations section of the span detail panel.

Viewing Annotations

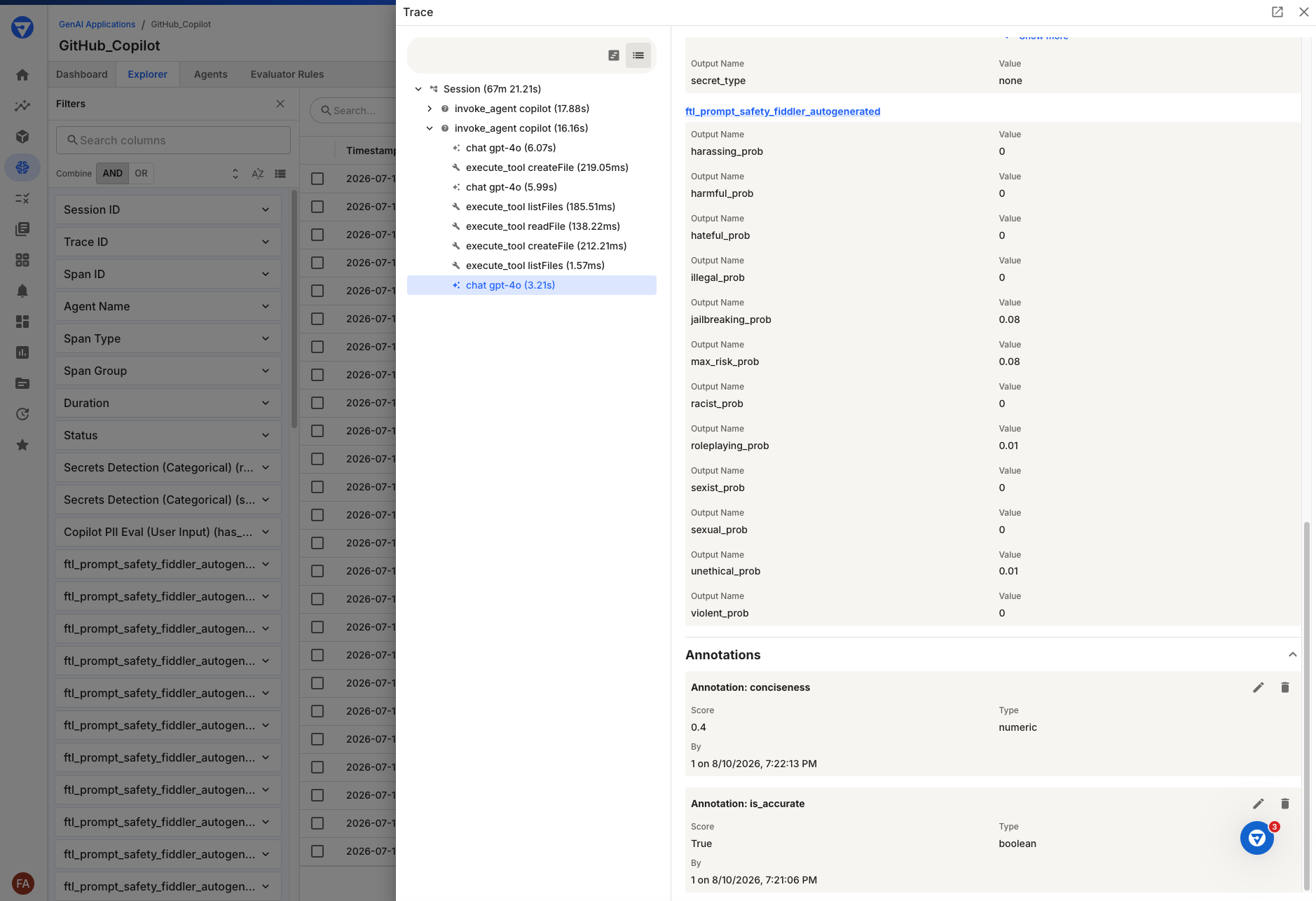

Existing annotations appear in the Annotations accordion section at the bottom of the span detail panel. Each annotation card displays the score name, value, type, annotator, and timestamp.

Annotations section showing annotation cards with score values, types, and edit/delete controls

Editing and Deleting Annotations

Click the edit (pencil) icon on an annotation card to update its value or reasoning. The score name and type cannot be changed — create a new annotation instead.
Click the delete (trash) icon to remove an annotation. A confirmation dialog appears before deletion.

API Access

Annotations are stored as scores with source=human via the /v3/scores API. You can create, list, update, and delete annotations programmatically.

Quick Example

curl -X POST https://your-fiddler-instance.com/v3/scores \
  -H "Authorization: Bearer $FIDDLER_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "application_id": "your-app-uuid",
    "span_id": "target-span-id",
    "name": "correctness",
    "score_type": "numeric",
    "source": "human",
    "value": 0.9,
    "reasoning": "Response accurately addressed the user question"
  }'

Endpoints

Operation	Method	Endpoint	Reference
Create	`POST`	`/v3/scores`	Create a score
List	`GET`	`/v3/scores`	List scores
Get	`GET`	`/v3/scores/{score_id}`	Get a score
Update	`PATCH`	`/v3/scores/{score_id}`	Update a score
Delete	`DELETE`	`/v3/scores/{score_id}`	Delete a score
Bulk create	`POST`	`/v3/scores/bulk`	Bulk create scores

Filter by source=human to retrieve only human-created annotations. Evaluator-generated scores use source=evaluator and are read-only through this API.

Explorer — the span exploration surface where annotations are created
Scores REST API — full API reference for creating and managing scores
Custom Metrics for Agentic Applications — define custom metrics over the same span data using FQL
Feature Maturity Definitions — what public preview means
