Azure AD OIDC SSO Integration

Learn how to integrate Fiddler with Microsoft Entra ID (formerly Azure AD) for seamless Single Sign-On (SSO) authentication using the OpenID Connect (OIDC) protocol.

Overview

This integration allows your users to access Fiddler using their existing Microsoft Entra ID credentials. Users are automatically provisioned in Fiddler on their first successful login, eliminating the need for manual user invitations. This guide also covers group synchronization for automated access control.

Prerequisites

Before starting, ensure you have:

  • Microsoft Entra ID Administrator Access: Permissions to register applications and configure API permissions

  • Fiddler Administrator Access: "Org Owner" or "Org User Manager" role in Fiddler's authentication management console

  • Deployment Information: Your Fiddler deployment base URL

  • Tenant Information: Access to your Microsoft Entra ID tenant details

Step 1: Configure Microsoft Entra ID Application

Register Application in Entra ID

  1. Navigate to Identity > Applications > App registrations

  2. Click New registration

  3. Configure the application:

    • Name: Enter a descriptive name (e.g., "Fiddler SSO")

    • Supported account types: Select "Accounts in this organizational directory only"

    • Redirect URI: Select "Web" and enter {base_url}/api/sso/azuread/callback (replace {base_url} with your Fiddler deployment URL)

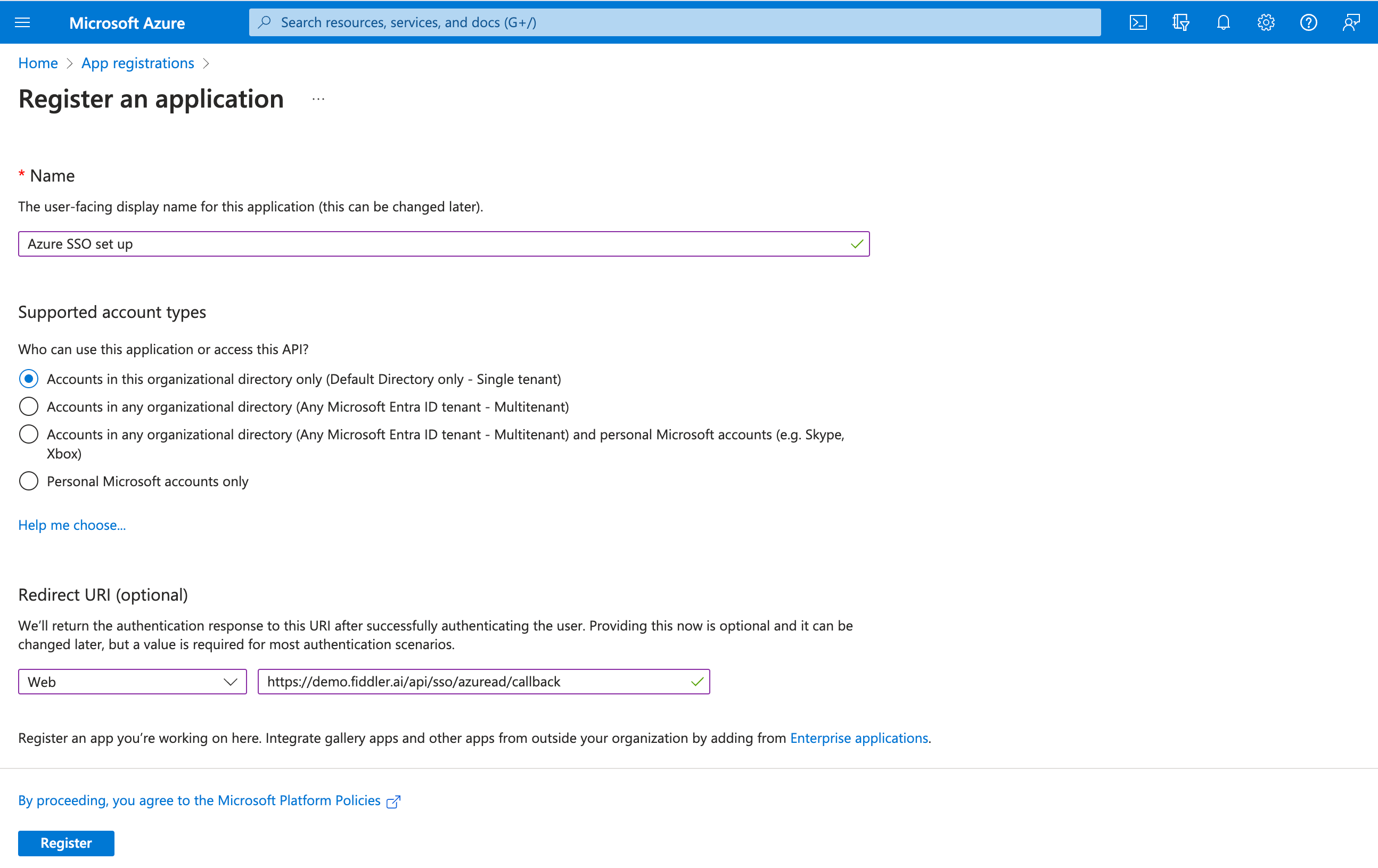

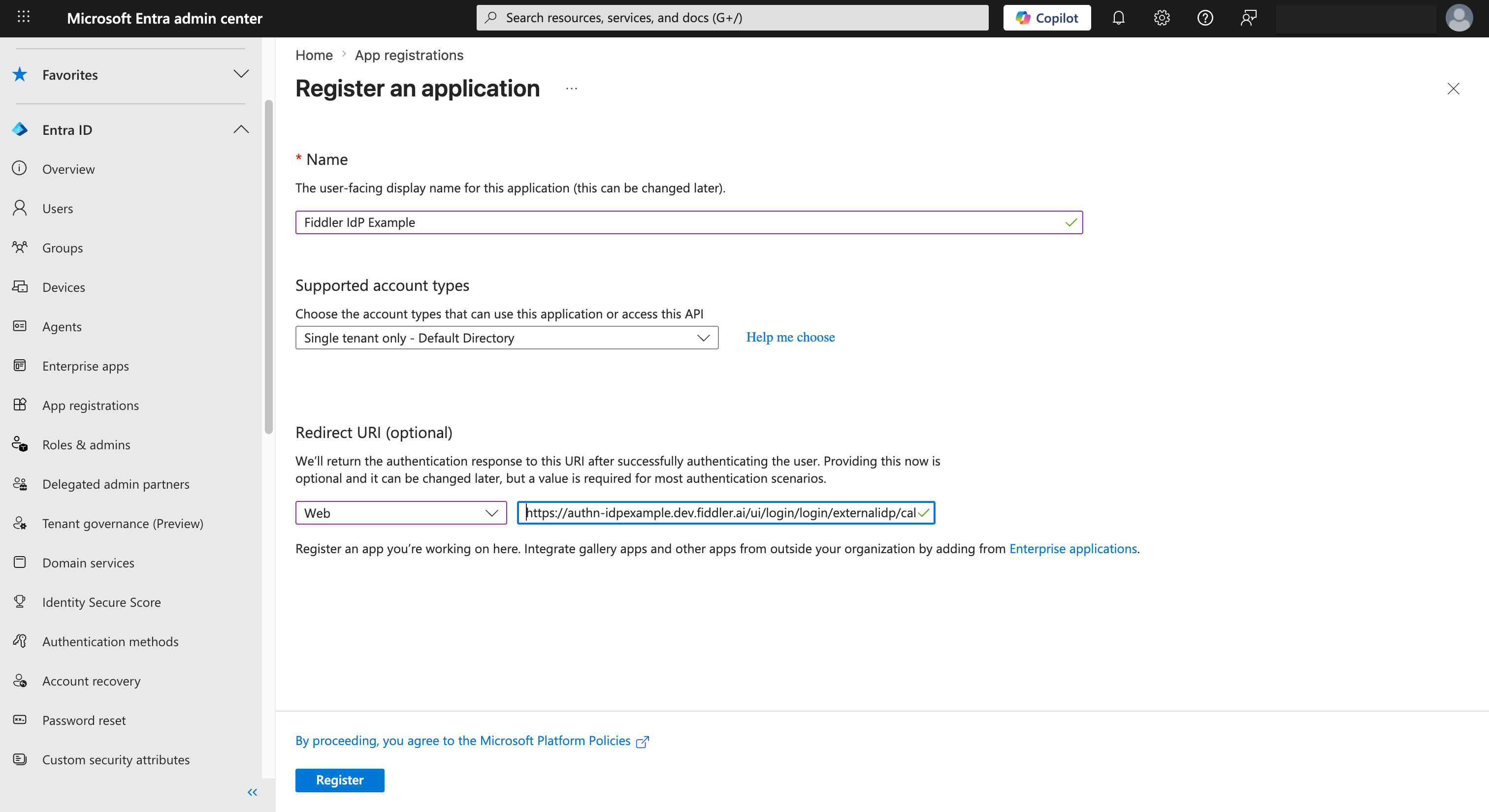

register an application - screenshot
  1. Click Register to create the application

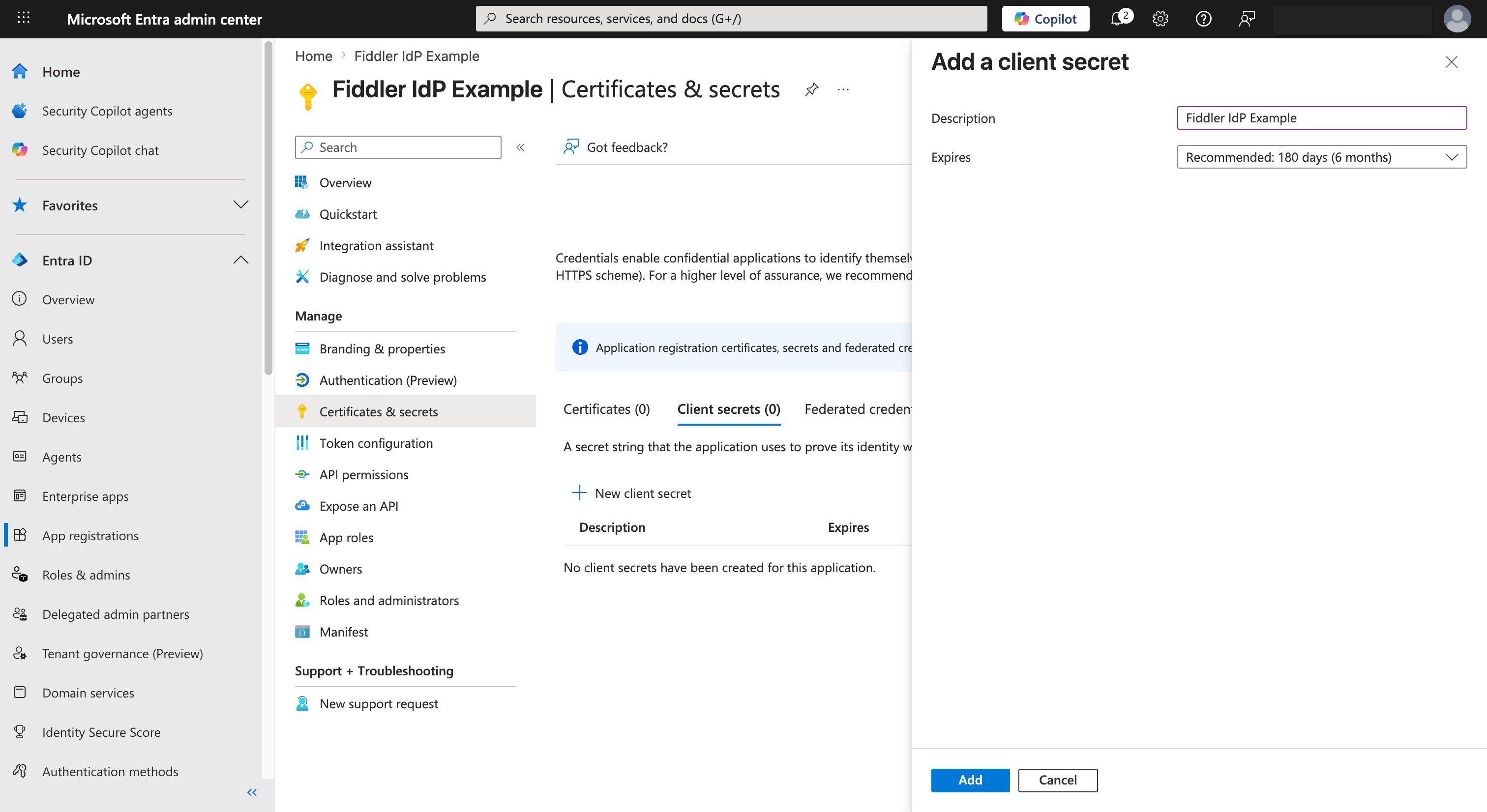

Create Client Secret

  1. In your registered application, go to Certificates & secrets

  2. Click New client secret

  3. Add a description and select an expiration period (recommend 24 months maximum)

  4. Click Add

  5. Important: Copy the secret value immediately—it won't be displayed again

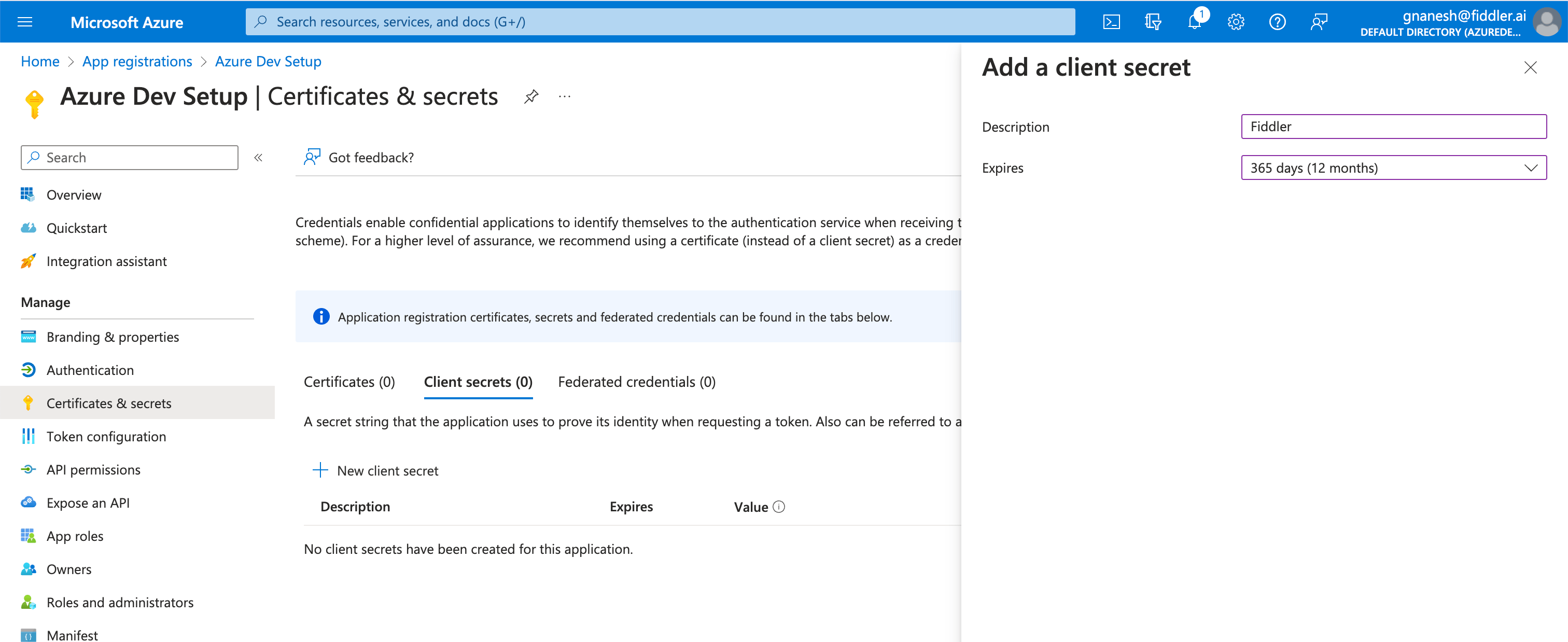

create a new client secret - screenshot

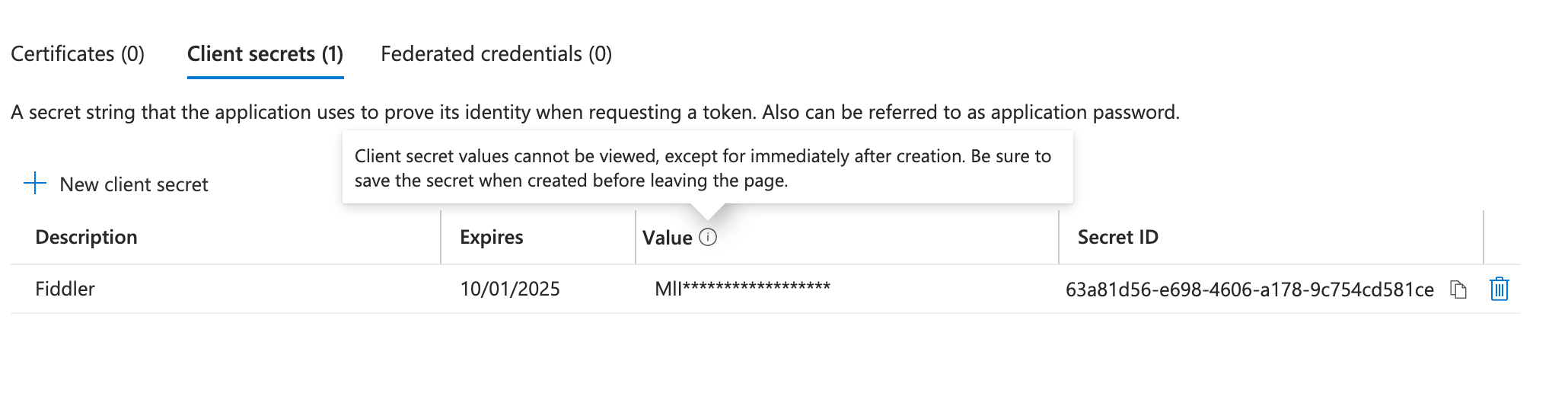

Masked client secret value

Configure API Permissions

  1. Navigate to API permissions in your application

  2. Click Add a permission

  3. Select Microsoft Graph

  4. Choose Delegated permissions

  5. Add these permissions:

    • openid (Sign users in)

    • profile (View users' basic profile)

    • email (View users' email address)

    • offline_access (Maintain access to data you have given it access to)

    • User.Read (Sign in and read user profile)

    • GroupMember.Read.All (Read group memberships - for group sync)

    • Directory.Read.All (Read directory data - for group sync)

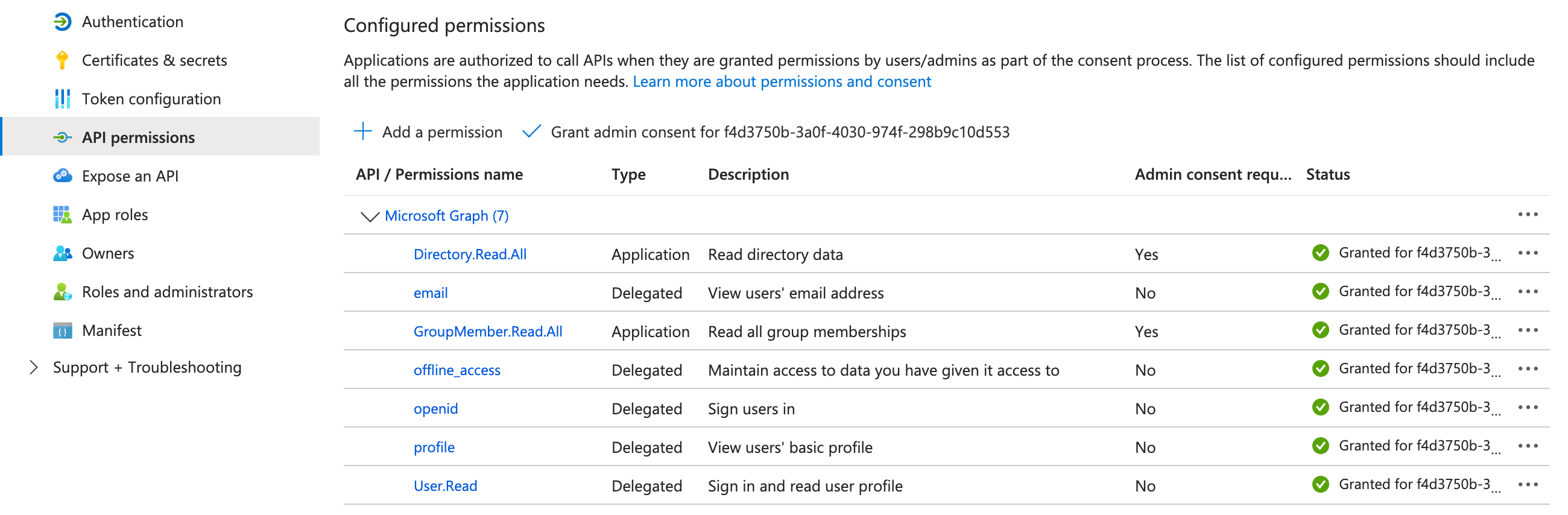

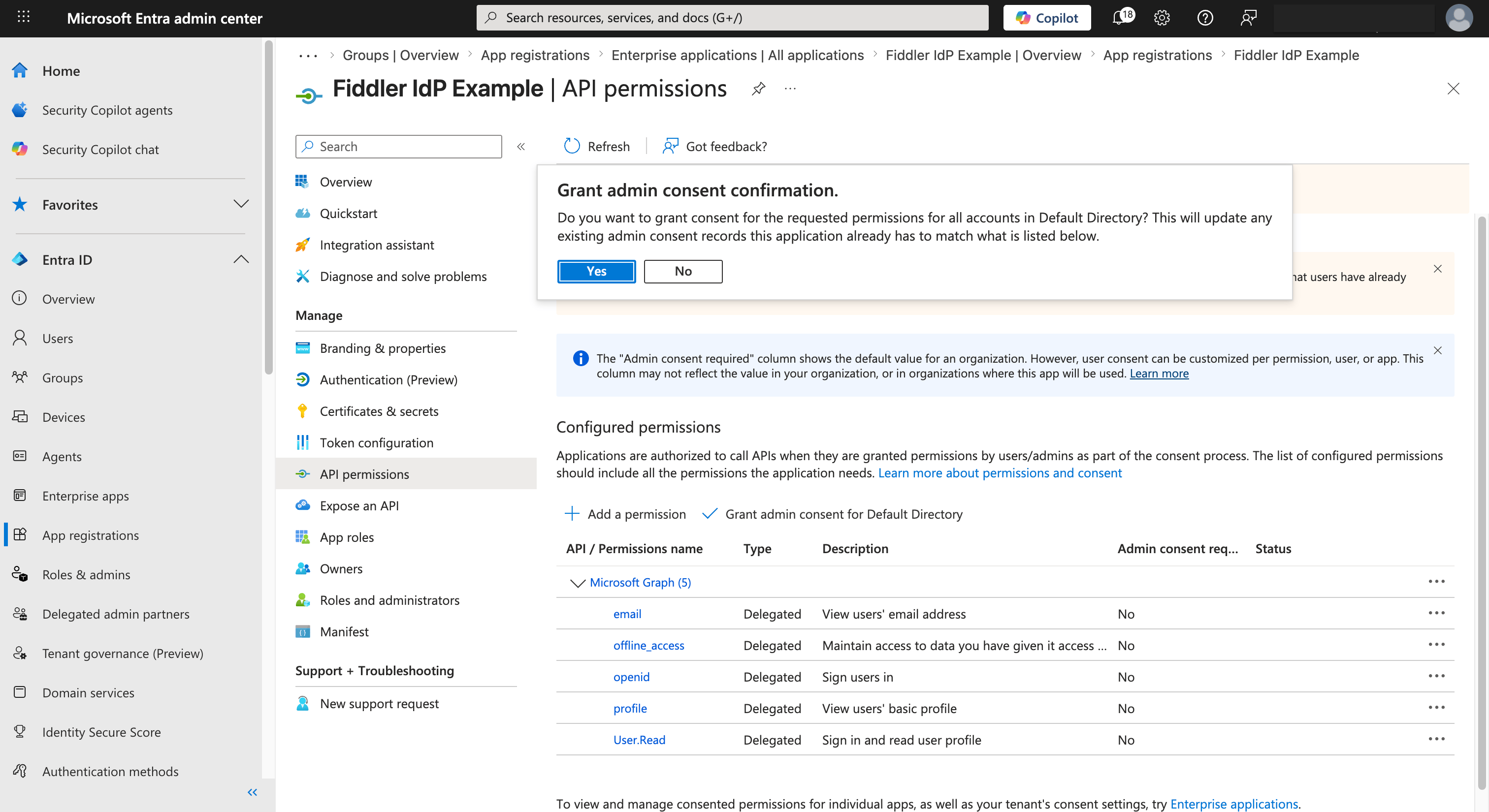

Configured API Permissions includes Directory.Read.All, email, GroupMember.Read.All, offline_access, openid, profile and User.Read
  1. Click Grant admin consent for your organization

Configure Authentication Settings

  1. Go to Authentication in your application

  2. In Implicit grant and hybrid flows, enable:

    • Access tokens

    • ID tokens

  3. Ensure Supported account types is set to "Accounts in this organizational directory only"

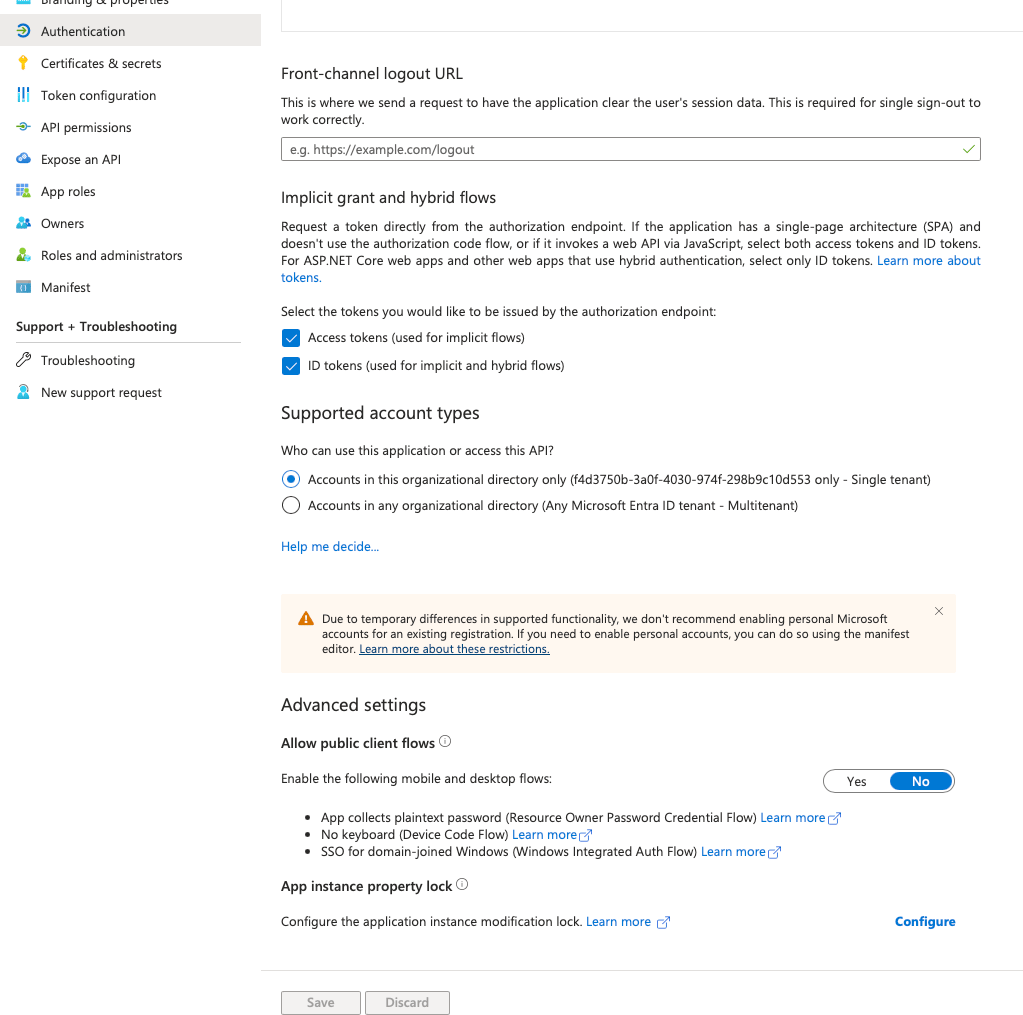

Under Implicit Grant and Hybrid Flows, 'Access tokens' and 'ID tokens' are enabled. Under Supported Account Types, 'Accounts in this organizational directory only' is selected.

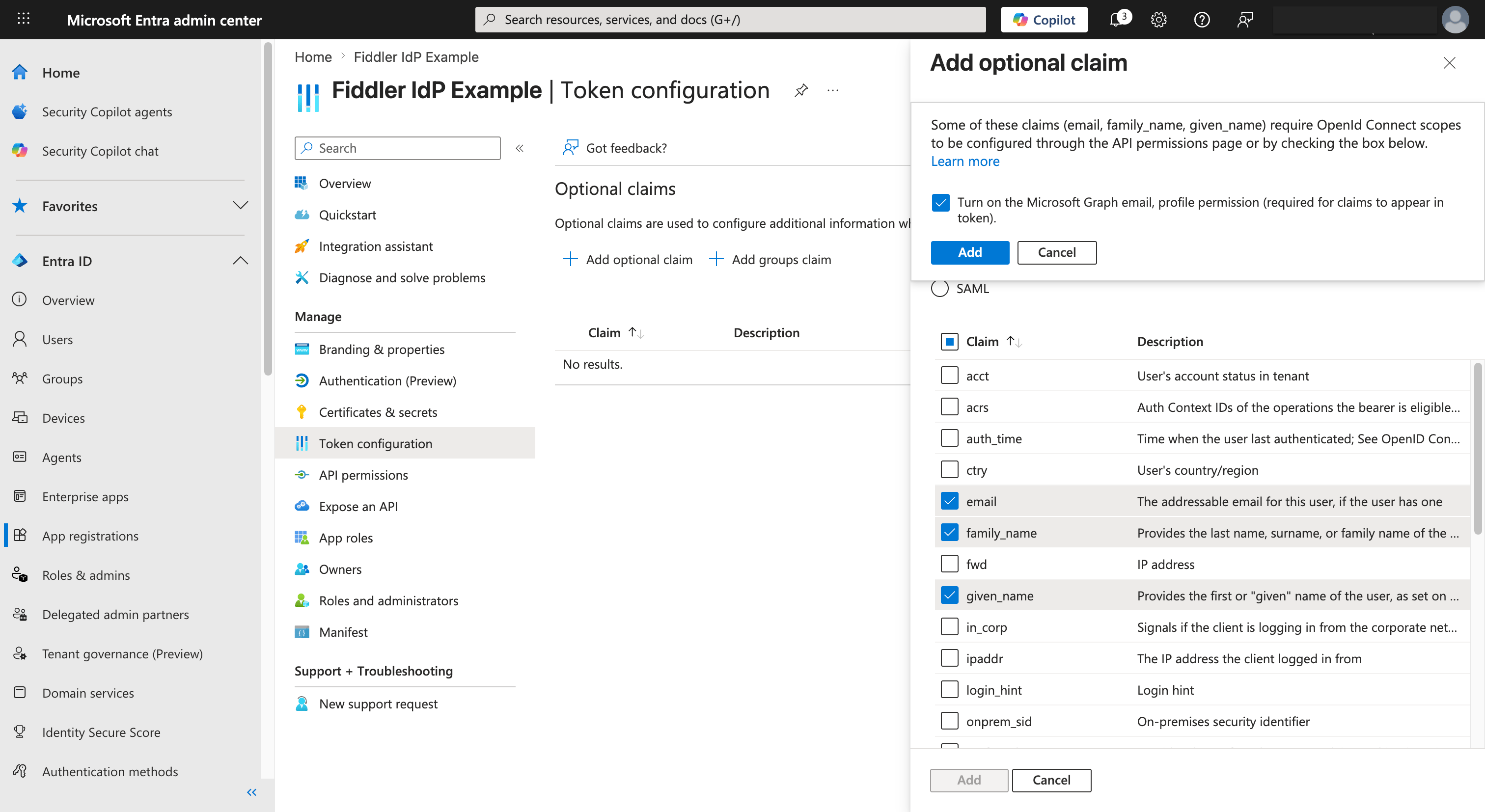

Configure Token Configuration (Optional - for group sync)

For group synchronization with Fiddler teams:

  1. Go to Token configuration in your application

  2. Click Add optional claim

  3. Select ID token type

  4. Add these claims:

    • email

    • family_name

    • given_name

    • groups (for group synchronization)

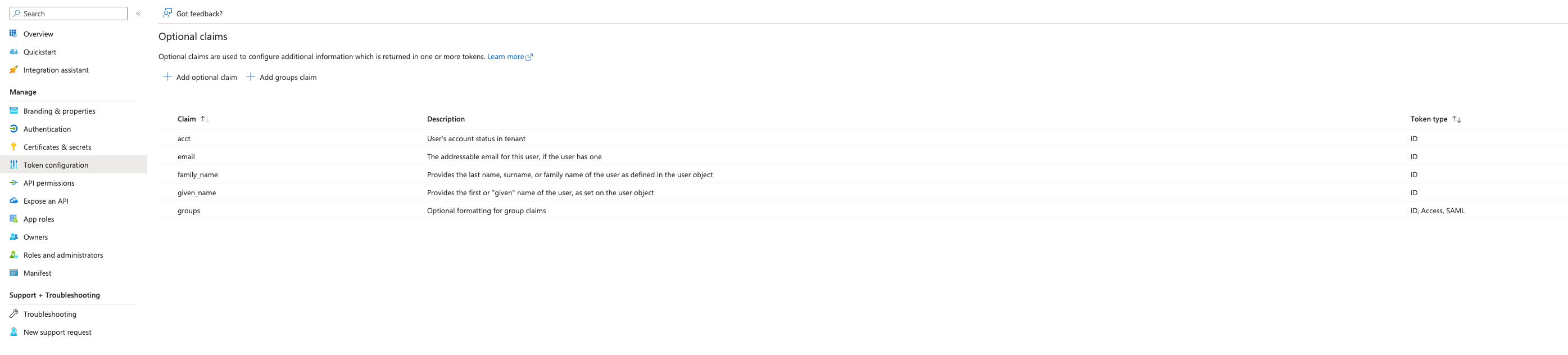

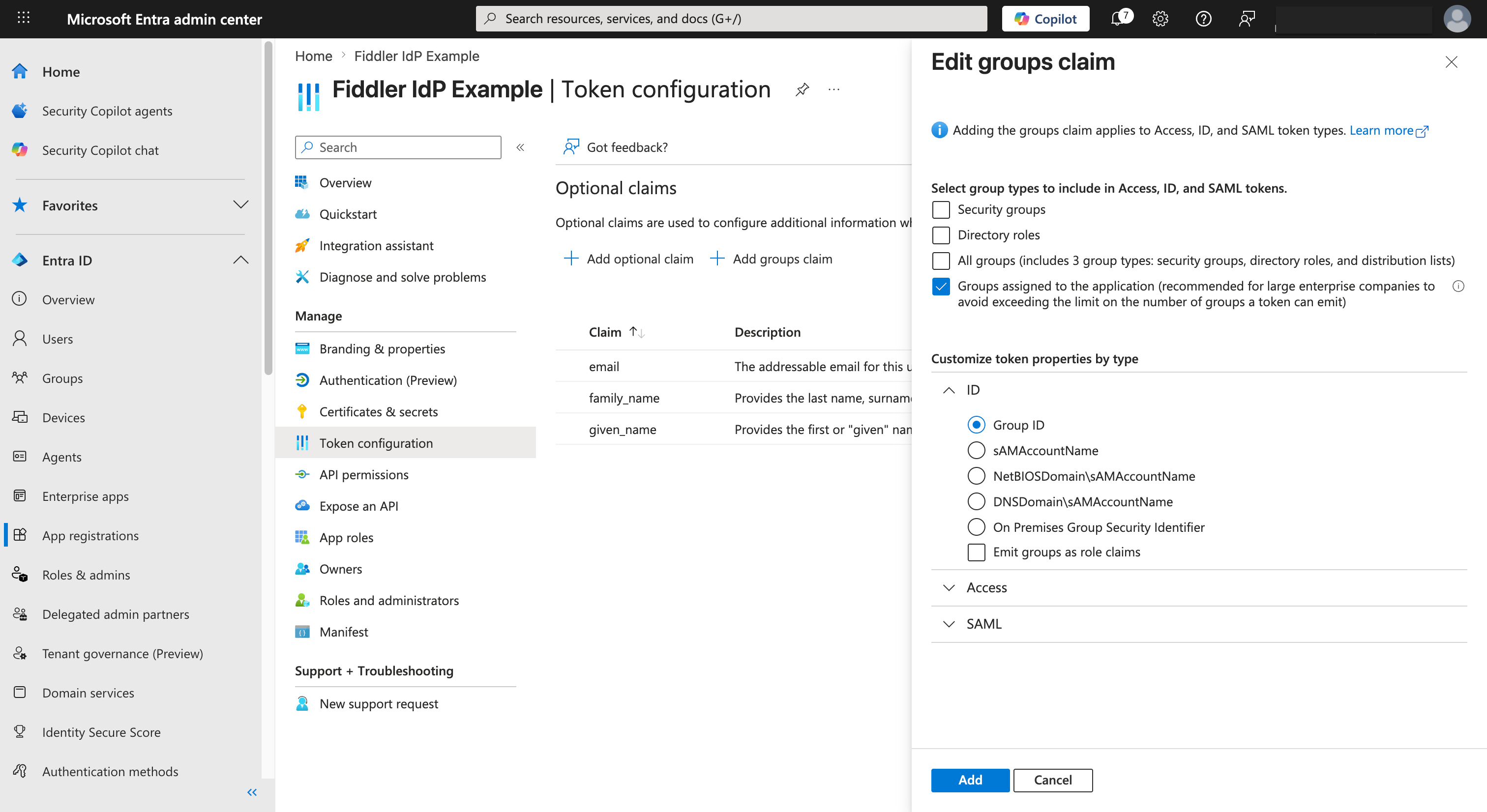

Configured Token Permissions includes acct, email, family_name, given_name and groups

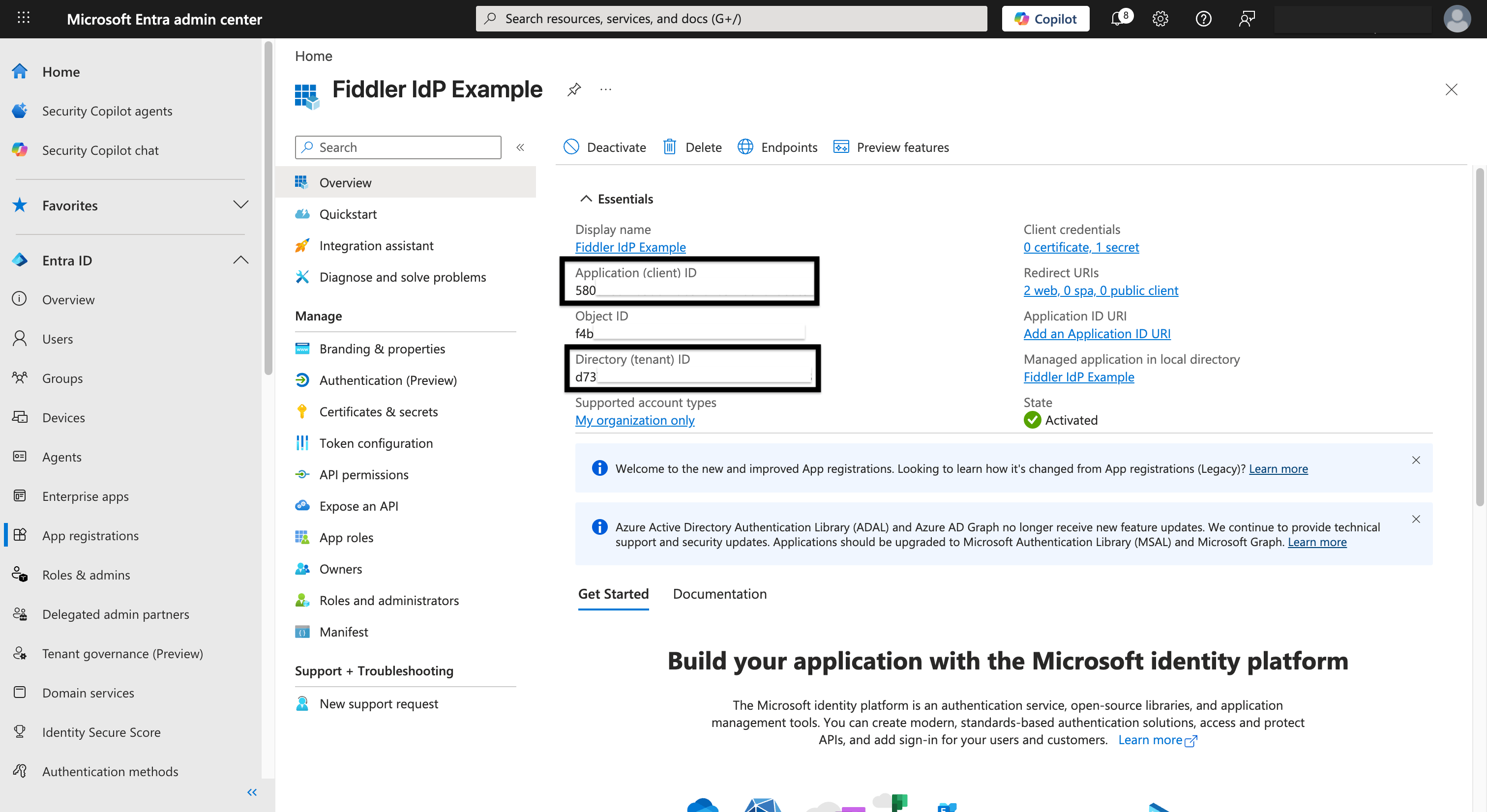

Collect Required Information

From your registered application's Overview page, collect:

  • Application (client) ID: Found in the "Essentials" section

  • Directory (tenant) ID: Found in the "Essentials" section

  • Client secret: The secret value you created earlier

  • OpenID Connect metadata document: Available under Endpoints

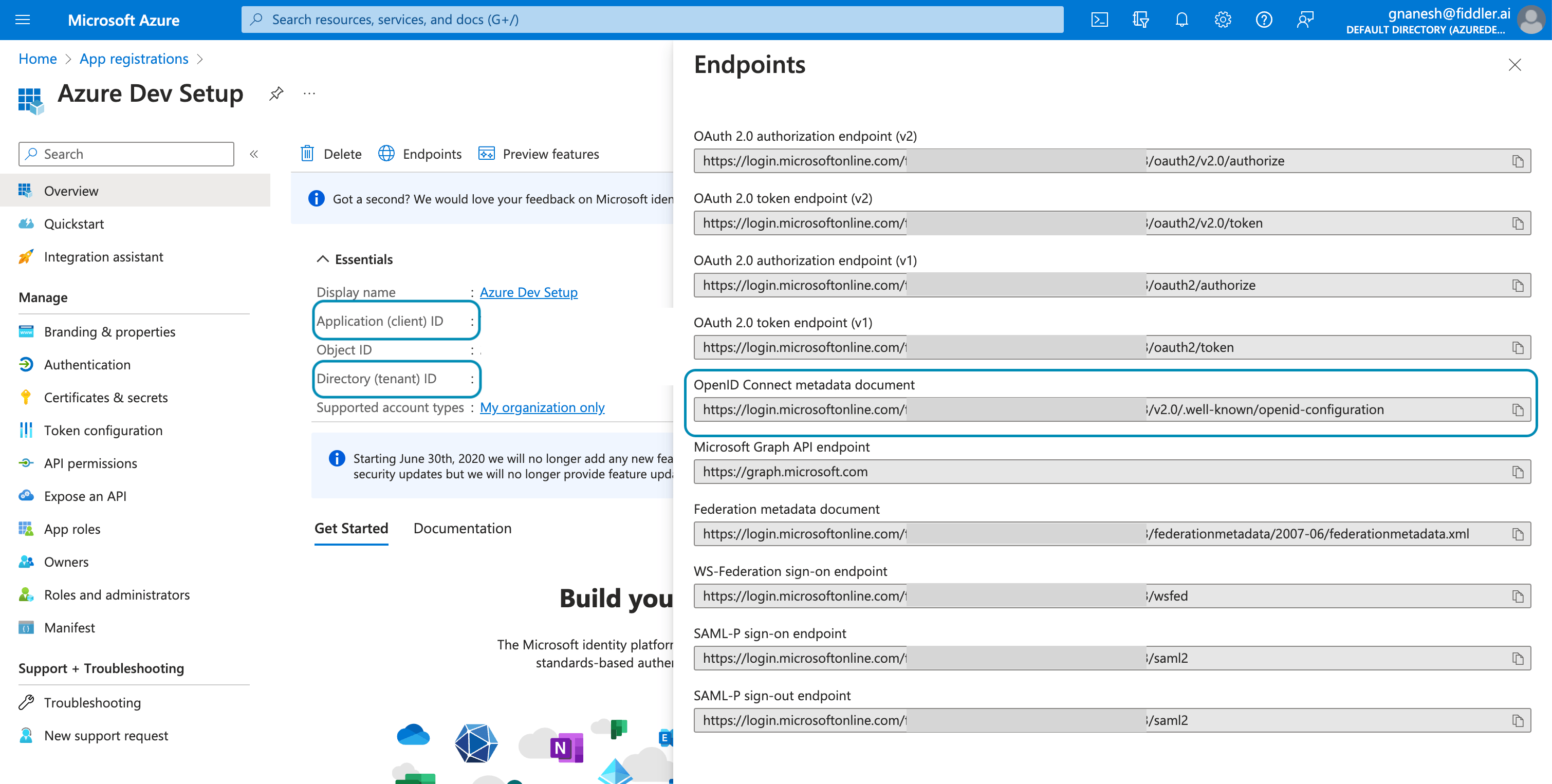

OpenID Connect metadata Document can be found under Endpoints under the overview section.

The metadata URL format is: https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration

Step 2: Configure Fiddler Authentication Console

Access Authentication Management Console

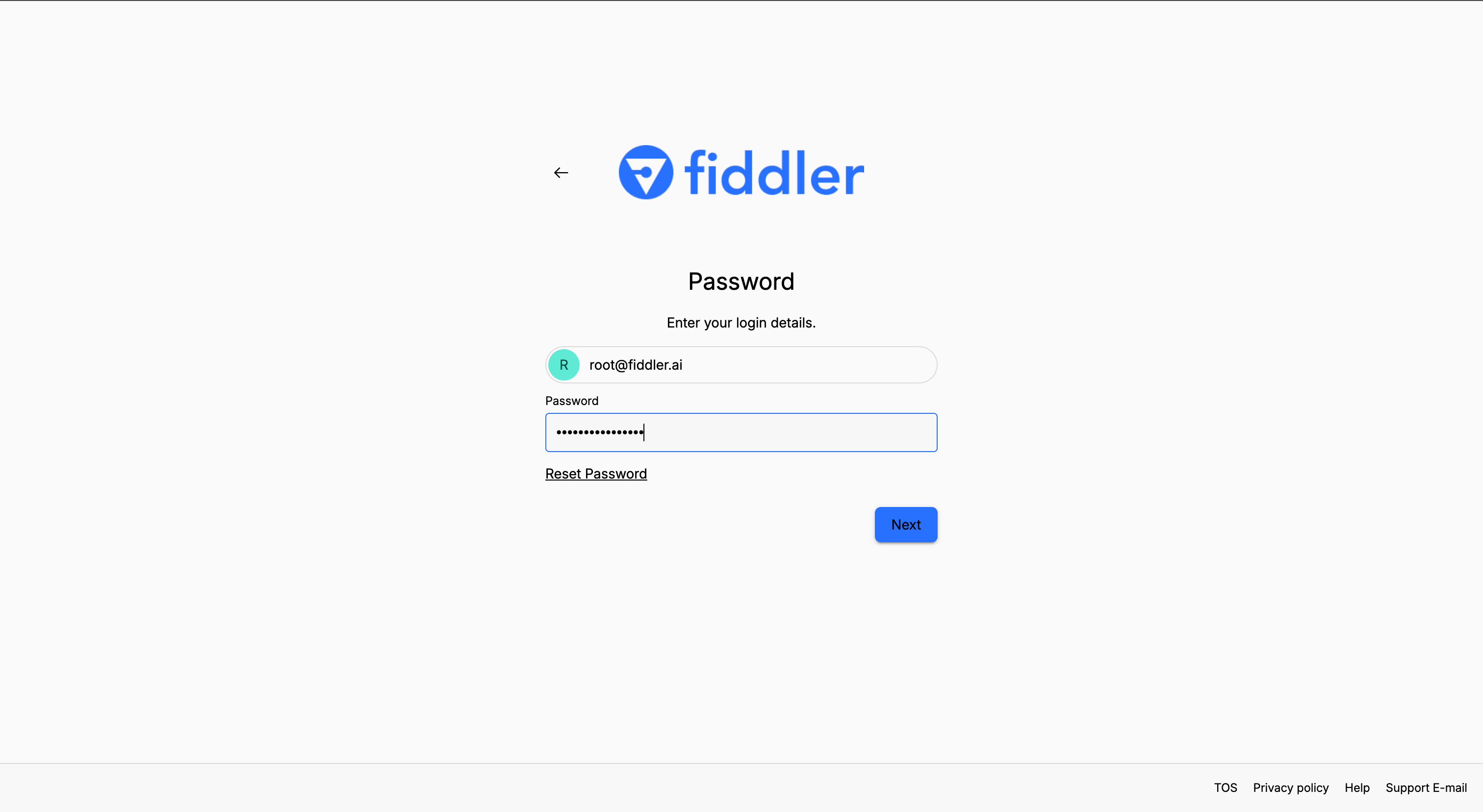

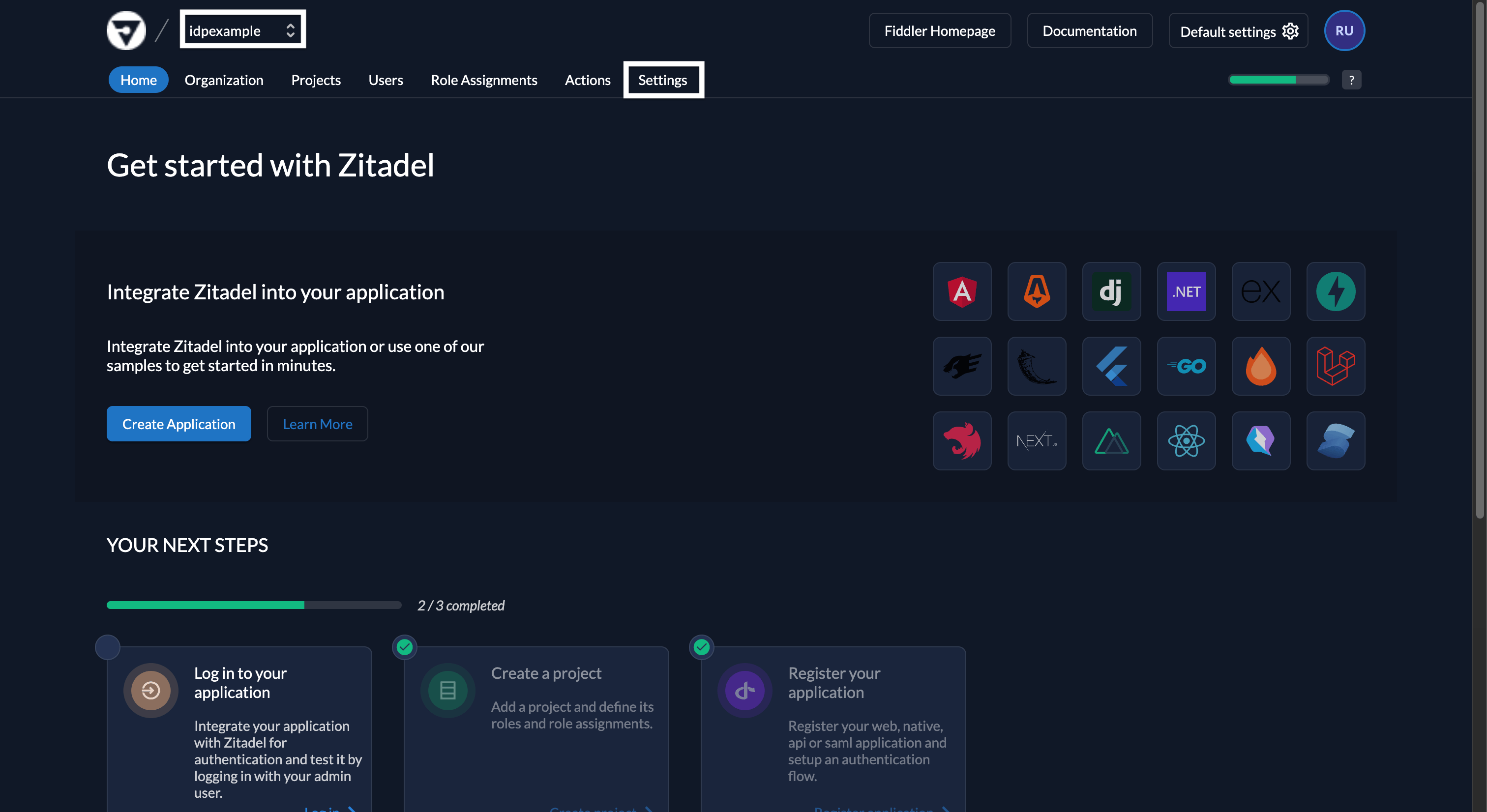

  1. Log into the Fiddler authentication management console

  2. Select your customer organization from the dropdown

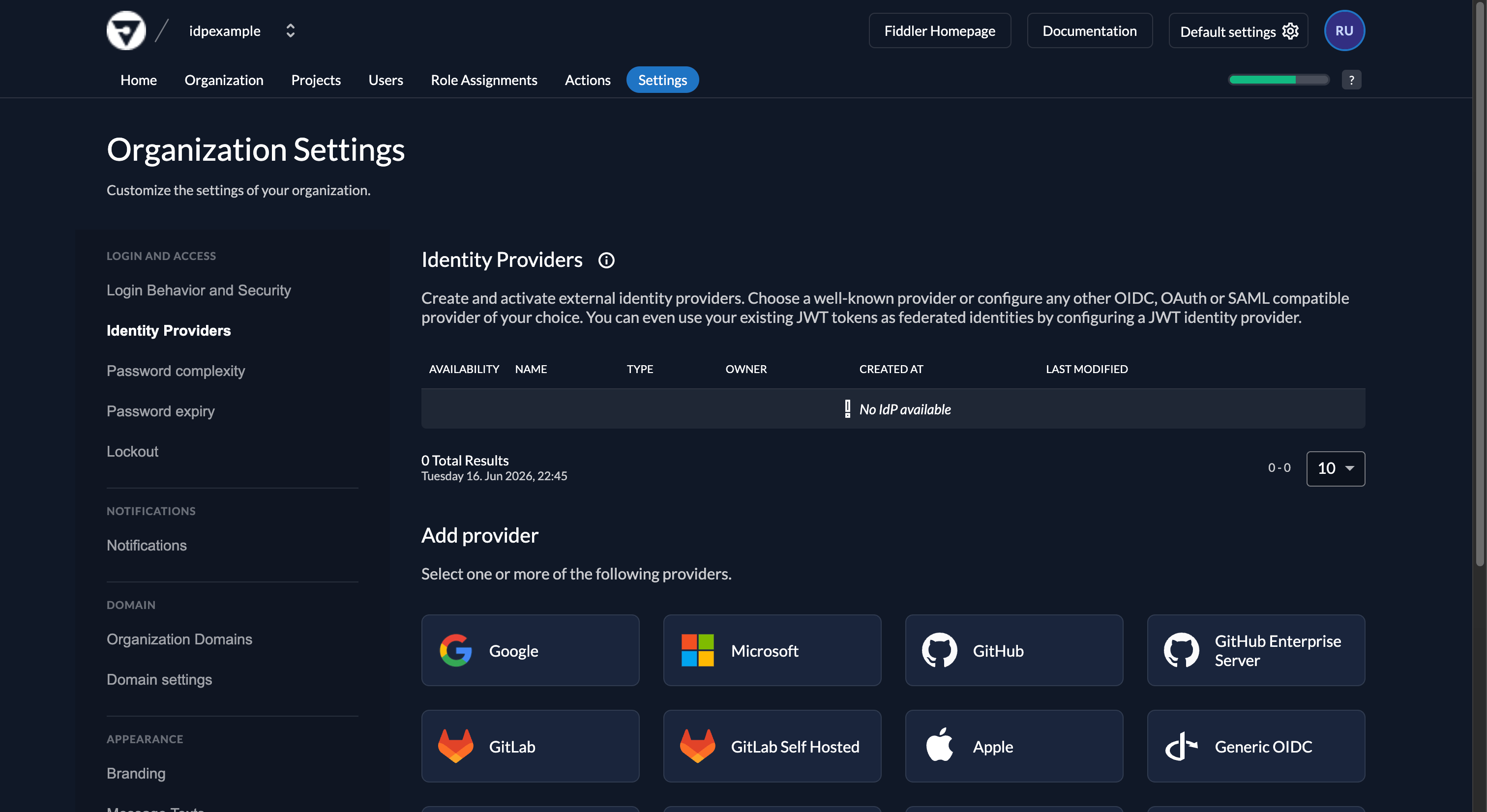

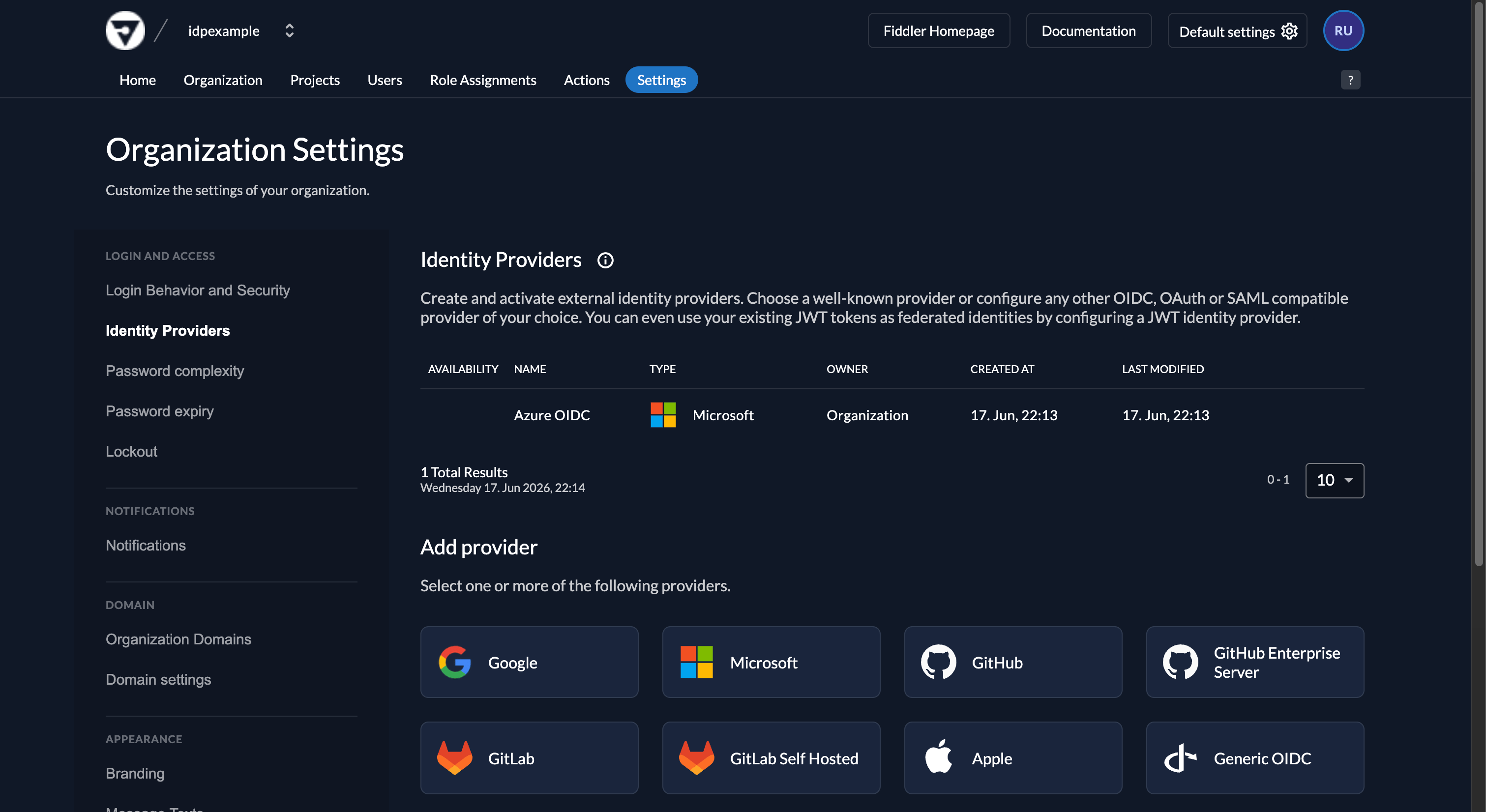

  3. Navigate to Settings > Login and Access > Identity Providers

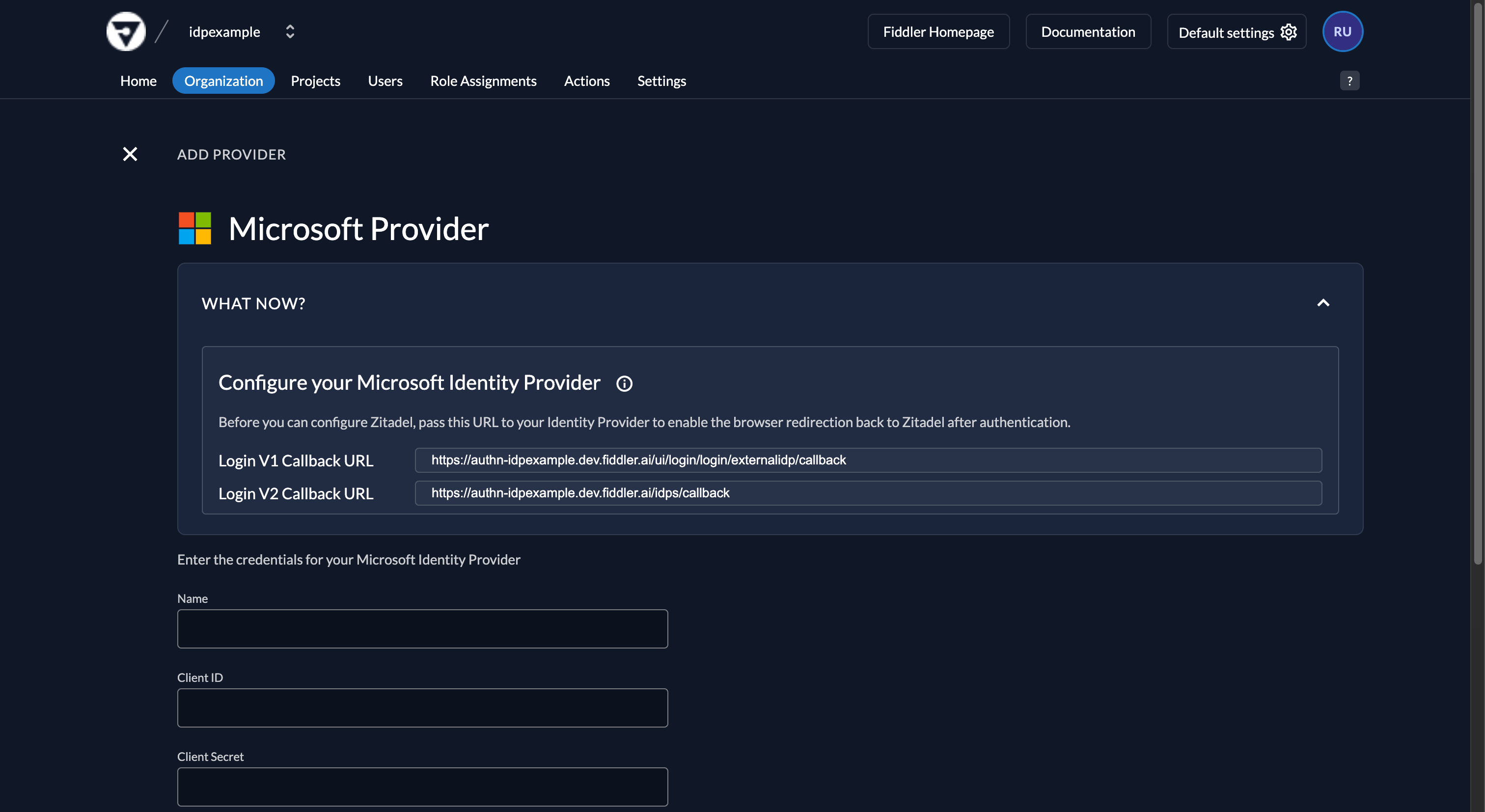

  4. Click Add Provider

Configure Entra ID Integration

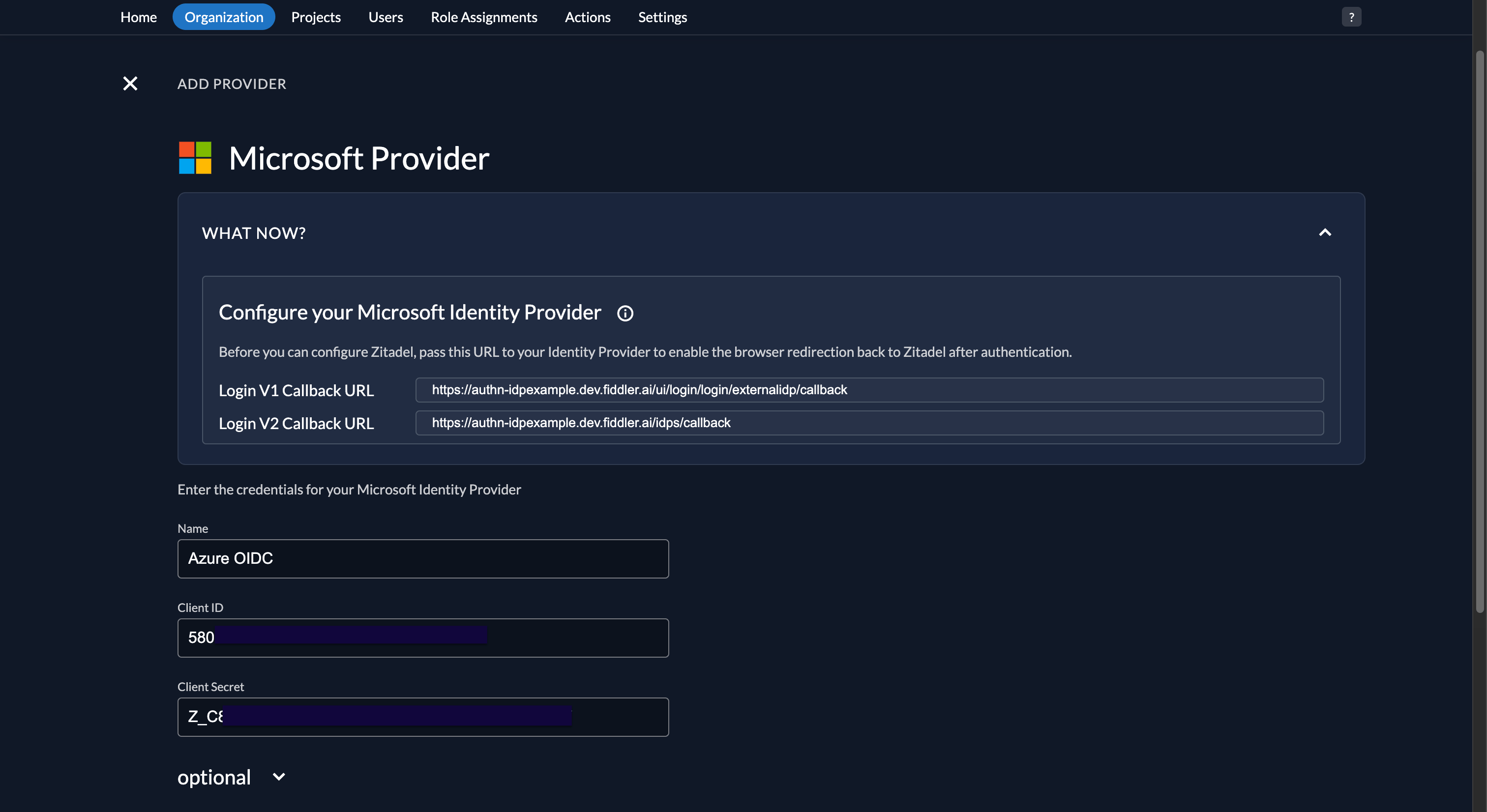

Provider Configuration:

  • Provider name: Enter a descriptive name (e.g., "Microsoft Entra ID")

  • Provider type: Select Azure AD or OIDC provider type

  • Client ID: Enter the Application (client) ID from your Entra ID application

  • Client Secret: Enter the client secret value you created

  • Metadata URL: https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration (replace {tenant-id} with your Directory tenant ID)

  • Tenant ID: Enter your Directory (tenant) ID

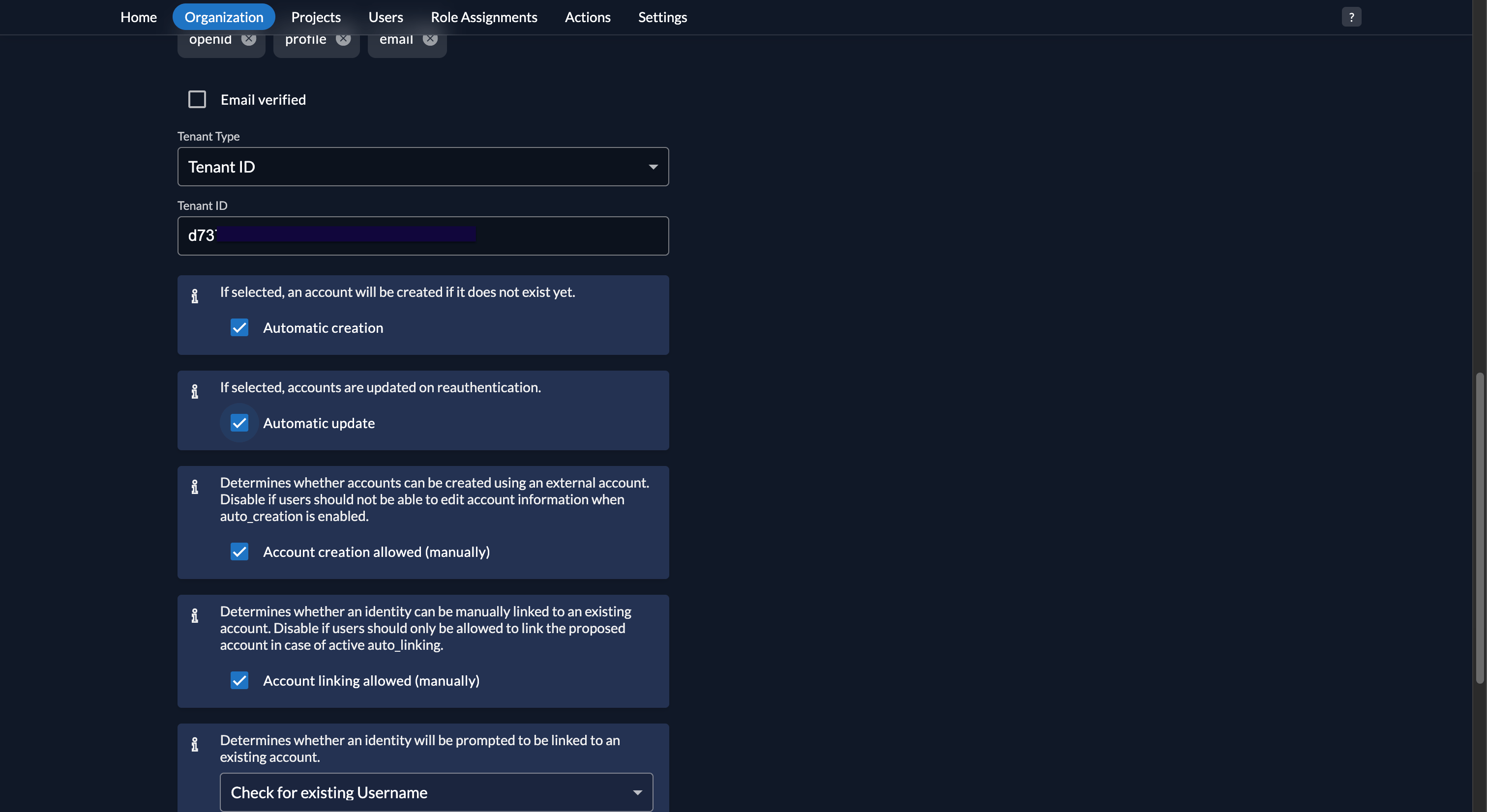

User Provisioning Settings:

  • ✅ Enable "Automatic creation" - Creates new users on first successful login

  • ✅ Enable "Automatic update" - Updates user information from Entra ID

  • ✅ Select "Check for existing username" - Links identities to existing accounts when appropriate

Configure Attribute Mapping

Ensure proper mapping of user attributes from Entra ID to Fiddler:

Required Mappings:

  • First Name: given_name

  • Last Name: family_name

  • Email: email

Optional Mappings:

  • Groups: groups (for automated group-based access control)

Configure Scopes

In the identity provider configuration, ensure the scope list includes:

  • openid (required for OIDC)

  • profile (for user profile information)

  • email (for email address)

  • offline_access (for refresh tokens)

Step 3: Test and Validate Integration

Test Authentication Flow

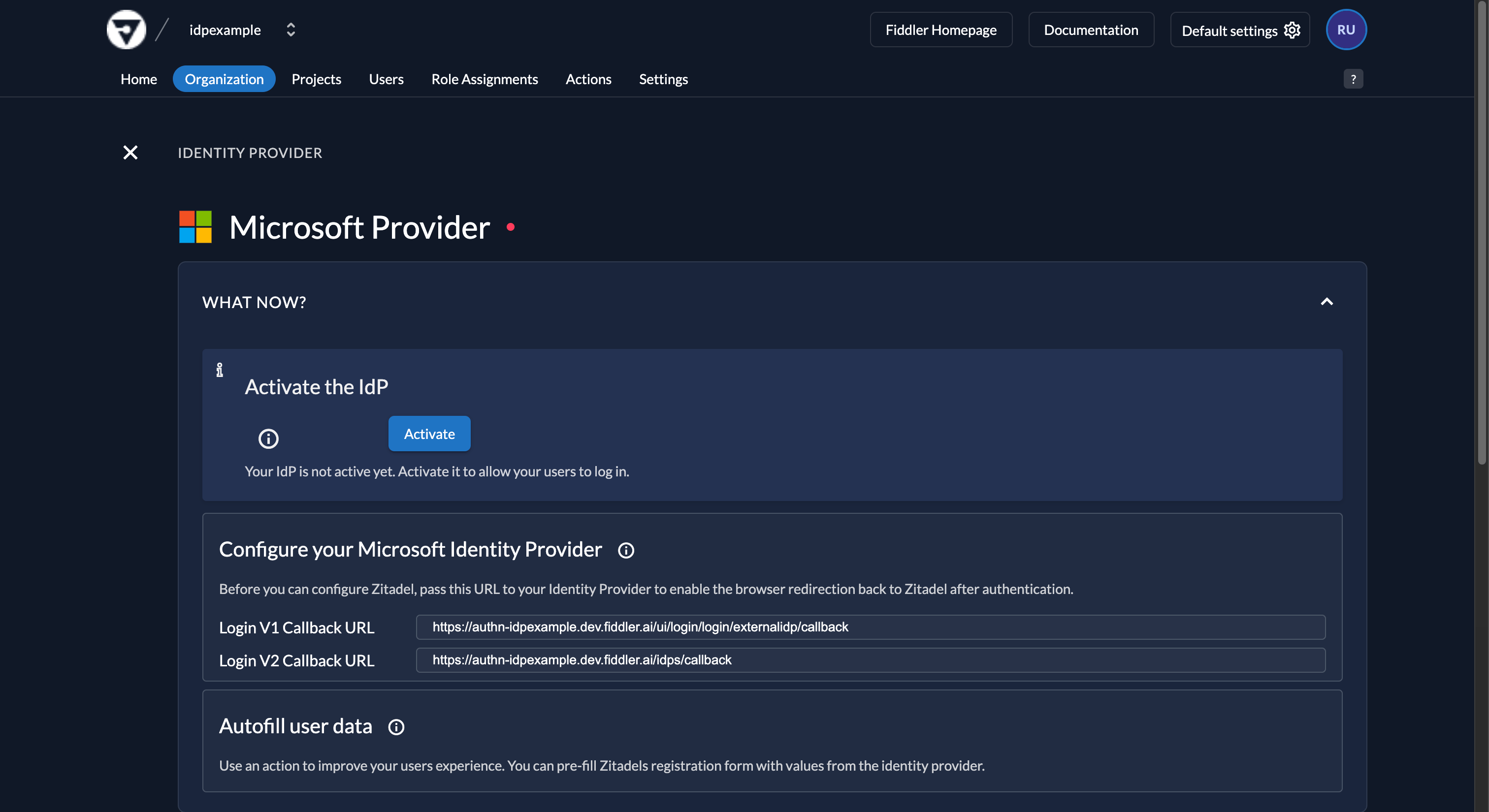

  1. Save your SSO configuration in the authentication management console

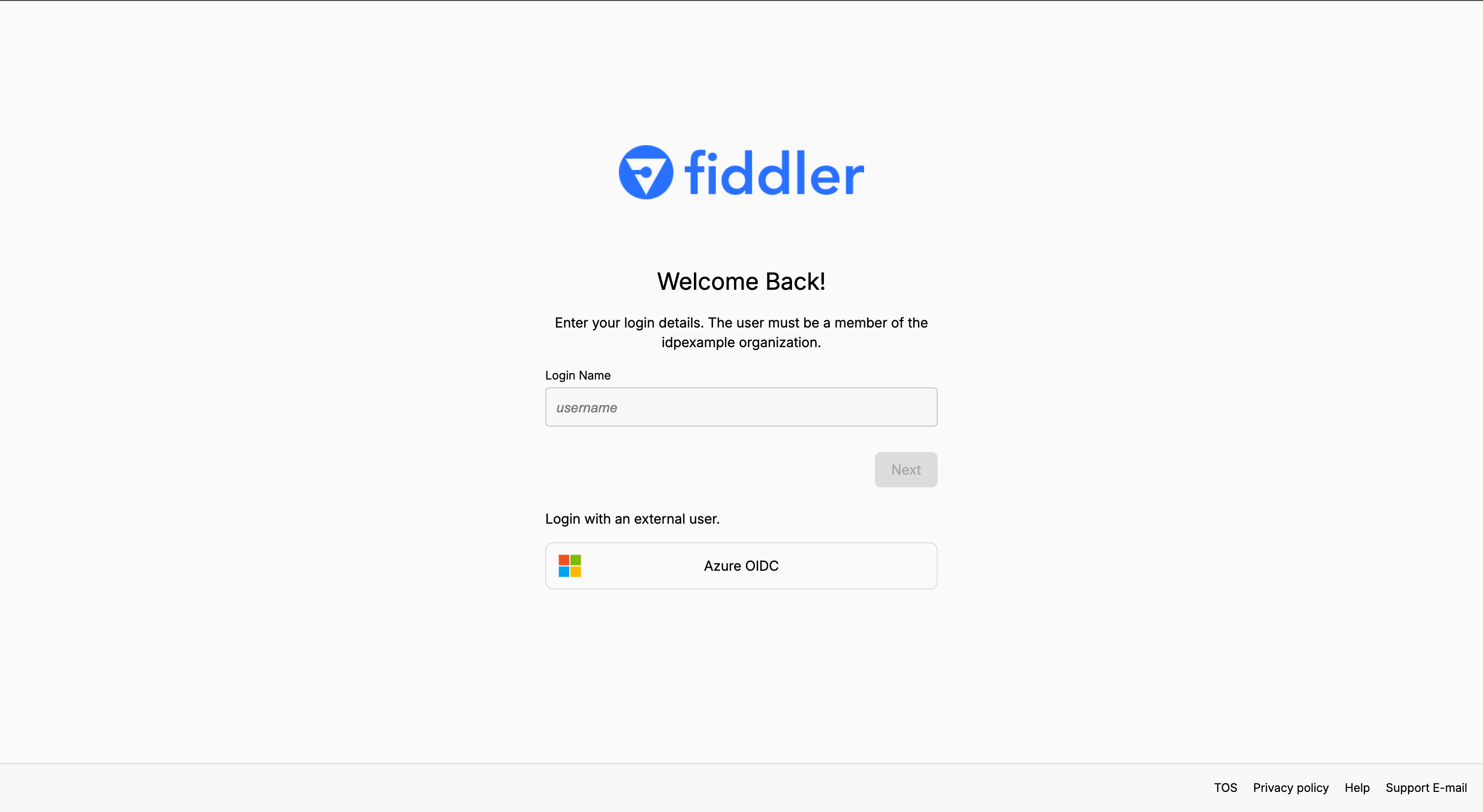

  2. Navigate to your Fiddler login page

  3. Click "Sign in with SSO"

  4. You should be redirected to Microsoft Entra ID for authentication

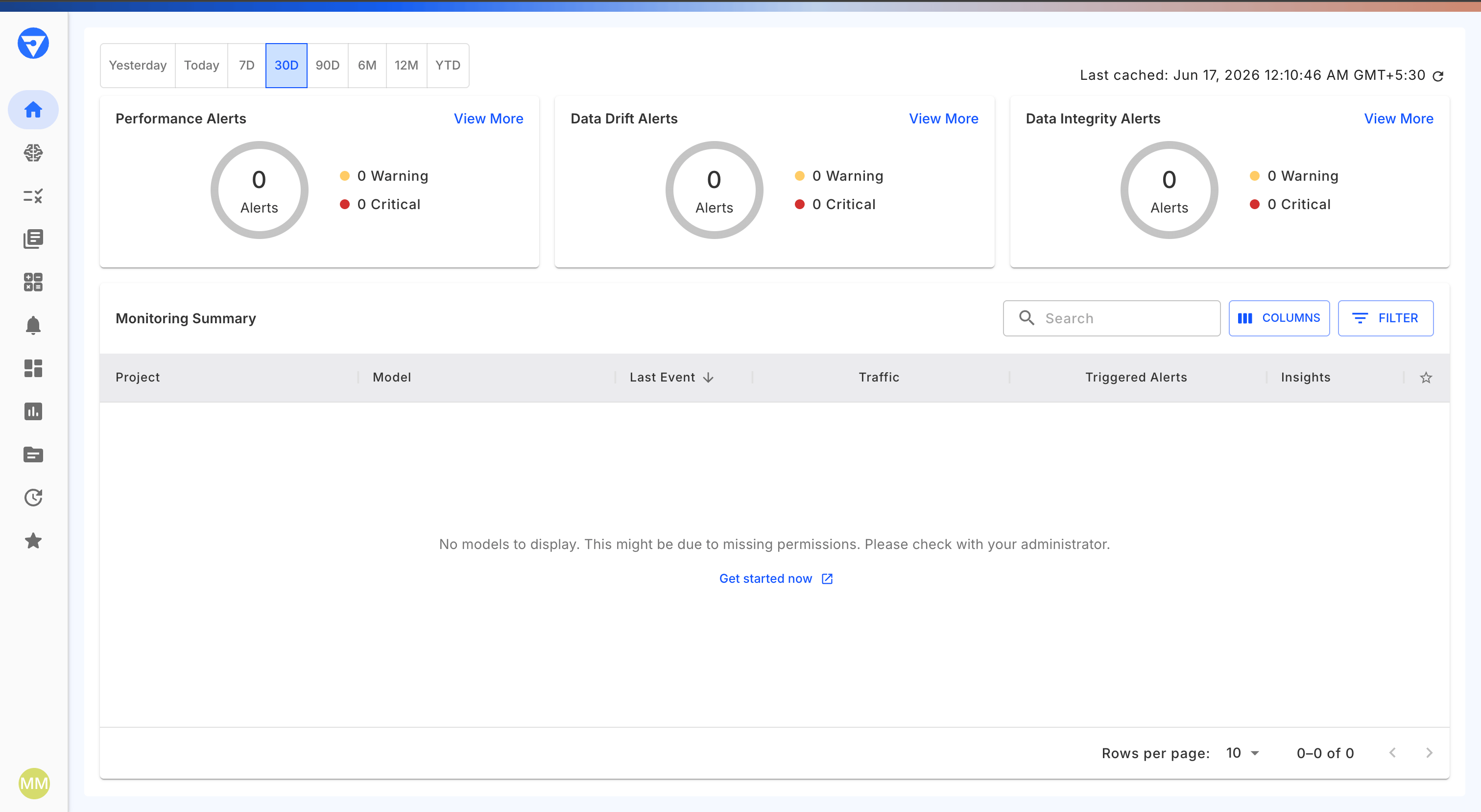

  5. After successful authentication, you should be redirected back to Fiddler

Verify User Provisioning

  1. Log in with a test user account

  2. Verify the user account is automatically created in Fiddler

  3. Check that user information (name, email) is properly populated

  4. If using group sync, verify group memberships are correctly mapped

Advanced Configuration

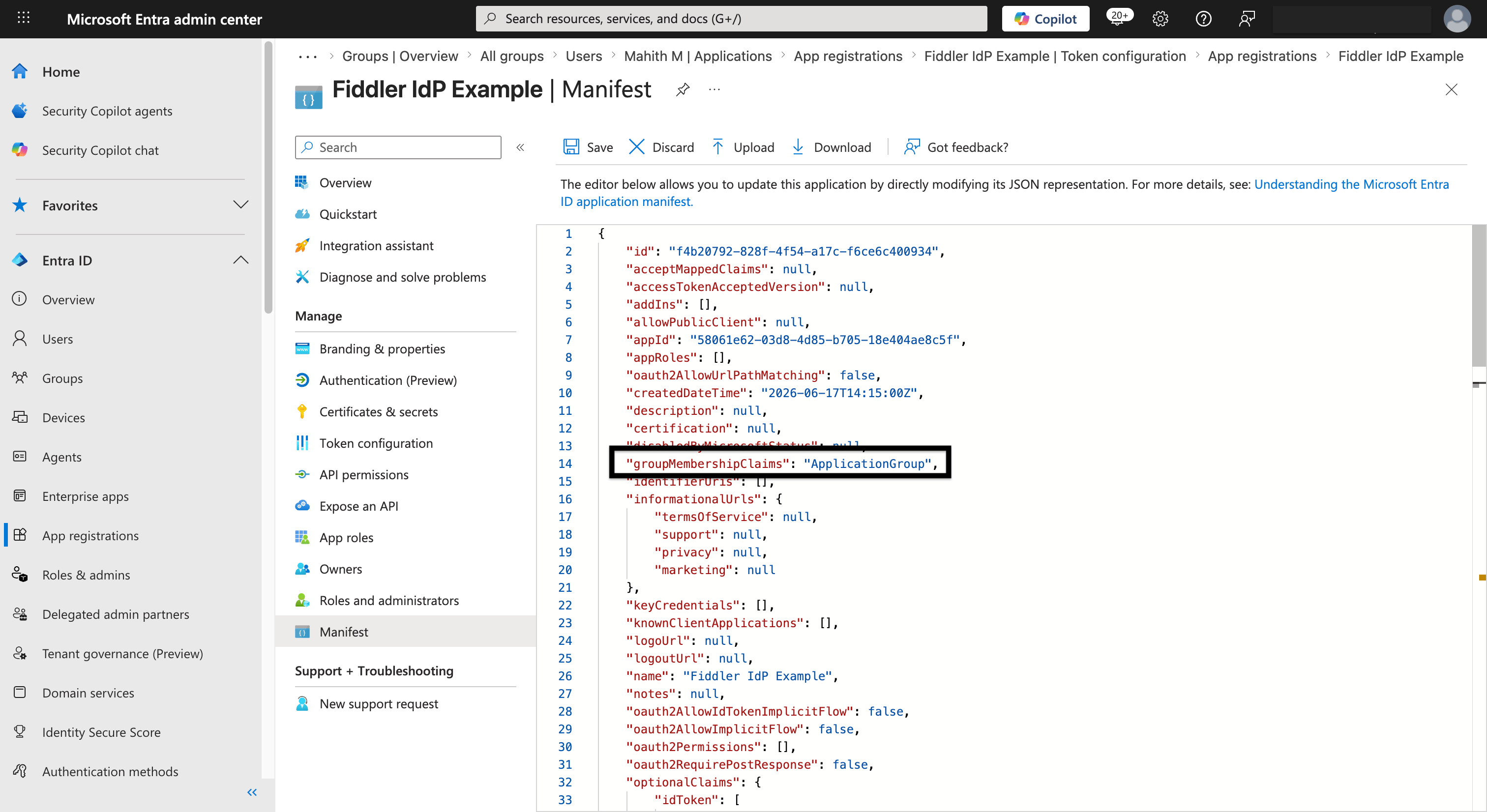

Group Synchronization

To enable automatic group synchronization:

In Microsoft Entra ID:

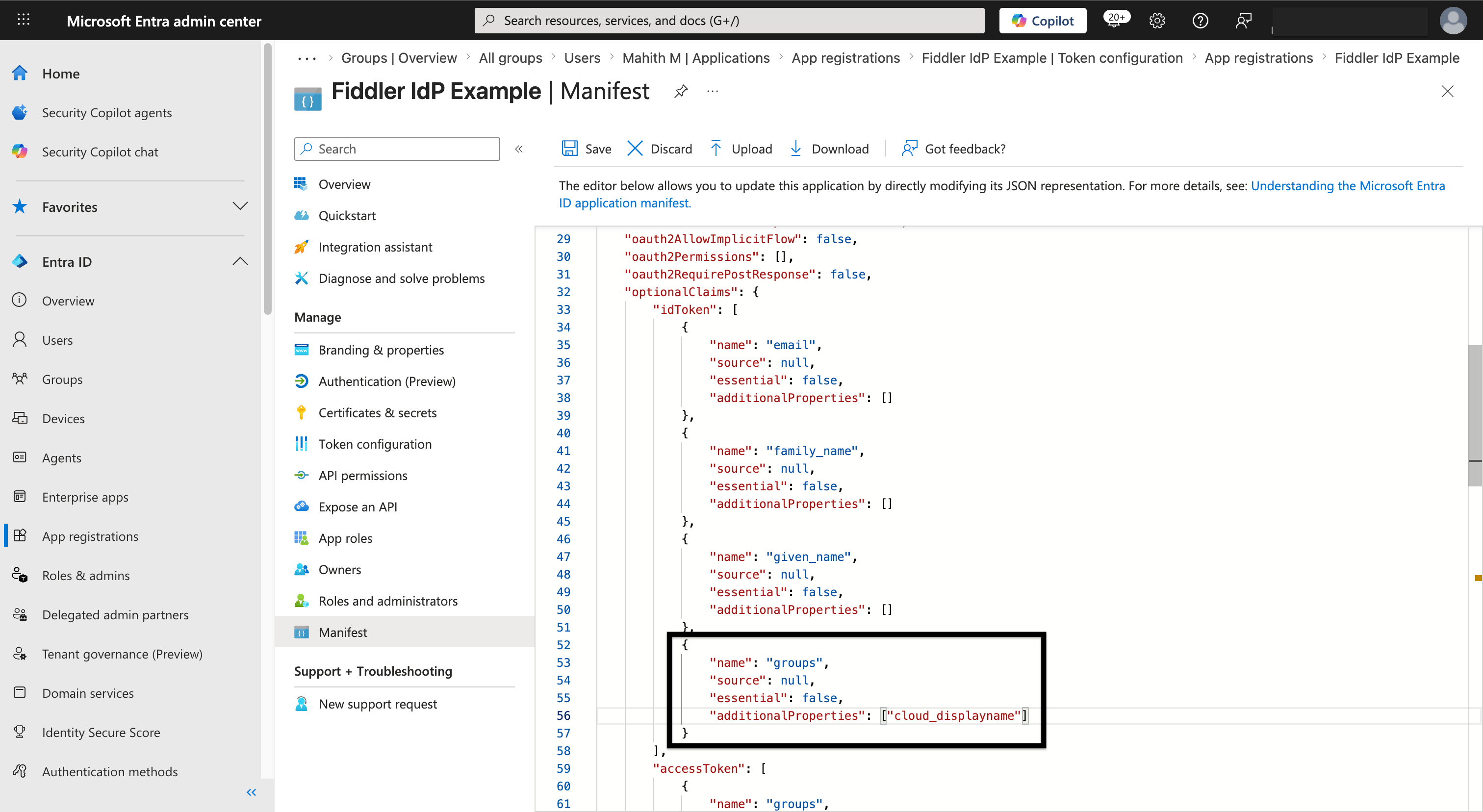

  1. Ensure the groups claim is configured in Token configuration (as described in Step 1)

  2. Grant GroupMember.Read.All and Directory.Read.All API permissions

  3. Verify admin consent has been granted for these permissions

In Fiddler:

  1. Create corresponding teams in Fiddler that match your Entra ID group names

  2. Verify the groups attribute is mapped in your identity provider configuration

  3. Test with a user who belongs to mapped groups

Conditional Access Integration

Microsoft Entra ID Conditional Access policies will apply to Fiddler access:

  • Multi-factor authentication requirements

  • Device compliance policies

  • Location-based access controls

  • Risk-based access policies

Custom Domain Configuration

If using a custom domain in Microsoft Entra ID:

  • Update all URLs to use your custom domain

  • Ensure the metadata URL reflects your custom domain

  • Update redirect URIs accordingly

Troubleshooting

Common Issues

Authentication Failures:

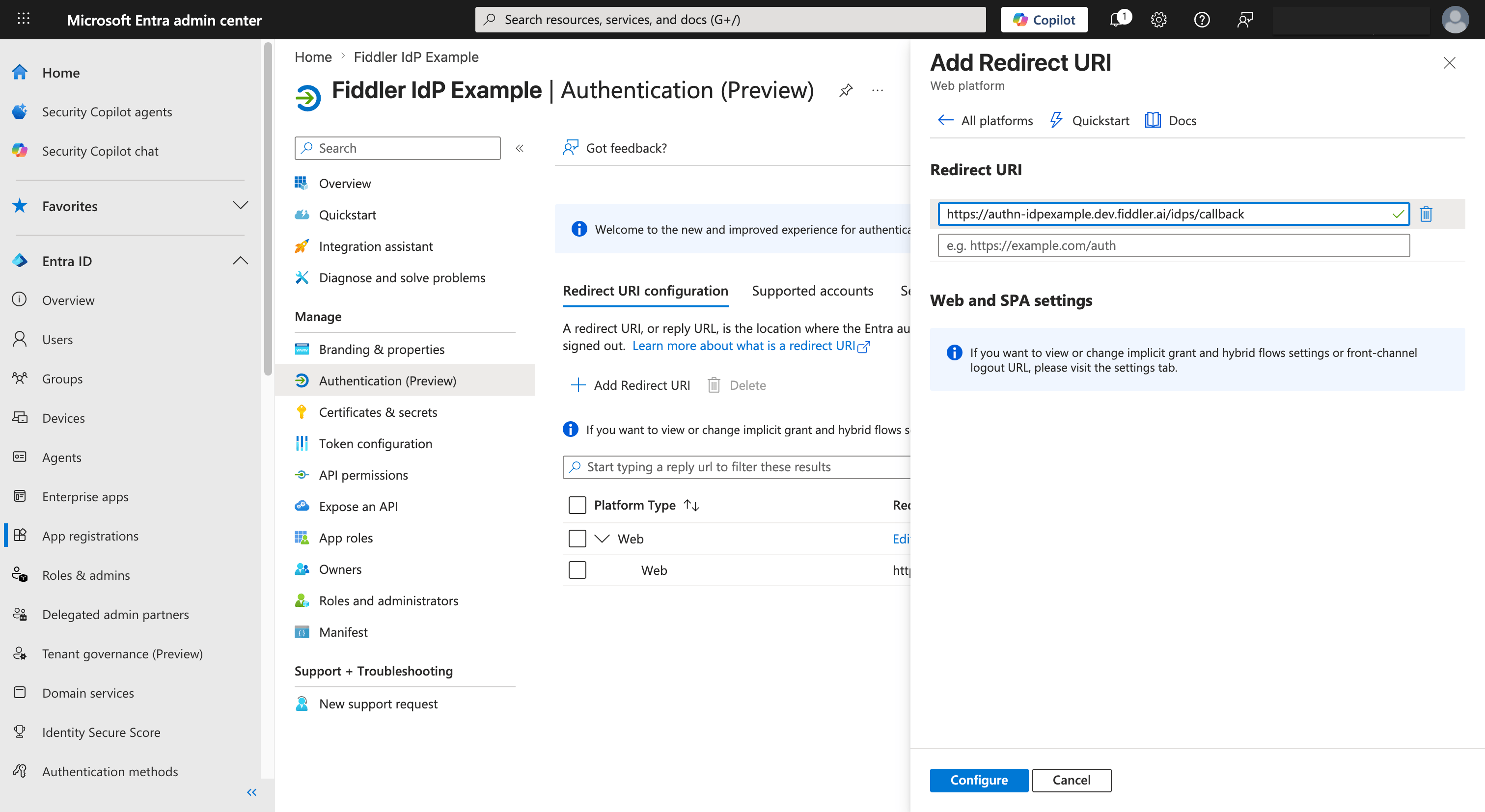

  • Redirect URI Mismatch: Verify the redirect URI in Entra ID exactly matches {base_url}/api/sso/azuread/callback

  • Client Secret Expiration: Client secrets typically expire after 6-24 months—check expiration date in Entra ID

  • Missing Permissions: Verify all required API permissions are granted with admin consent

  • Token Configuration: Ensure ID tokens are enabled in Authentication settings

User Provisioning Issues:

  • Users Not Auto-Created: Verify "Automatic creation" is enabled in Fiddler configuration

  • Missing User Information: Check attribute mappings and ensure required claims are included in tokens

  • Group Sync Not Working: Verify Groups claim is configured and corresponding teams exist in Fiddler

Permission Issues:

  • Admin Consent Required: Some permissions require admin consent—check API permissions page

  • Insufficient Directory Permissions: Ensure Directory.Read.All is granted for group synchronization

Common Error Messages

  • AADSTS50105: User not assigned to application - assign users/groups to the application

  • AADSTS700016: Application not found - verify Application ID is correct

  • AADSTS90094: Admin consent required - grant admin consent for API permissions

Getting Help

For additional assistance:

  • Check authentication logs in the Fiddler authentication management console

  • Review Microsoft Entra ID sign-in logs for detailed error information

  • Verify network connectivity between Fiddler and Microsoft endpoints

  • Contact your Fiddler representative with specific error messages

Reference Documentation

For detailed configuration guidance, refer to the official documentation:

Important Notes

  • Automatic User Provisioning: Users are automatically created on first successful login—no manual invitations required

  • Data Storage: Fiddler stores only the user's first name, last name, email address, and OIDC token from Entra ID

  • API Access: For programmatic API access, users must create access tokens from the "Credentials" tab in Fiddler's Settings page

  • Single Authentication Method: Users can only authenticate via either SSO or email authentication, not both

  • Client Secret Expiration: Monitor client secret expiration dates and update before expiry to avoid service disruptions

  • Group Sync Requirements: Group synchronization requires additional API permissions and proper token configuration

Next Steps

After successful integration:

  1. Train Users: Provide guidance on accessing Fiddler through Microsoft Entra ID SSO

  2. Configure Teams: Set up Fiddler teams to match your organizational structure

  3. Test Group Sync: Verify automatic group synchronization is working as expected

  4. Set Up Monitoring: Monitor authentication logs and set up alerts for client secret expiration

  5. Review Conditional Access: Ensure any existing Conditional Access policies work appropriately with Fiddler access
