Okta OIDC SSO Integration

Create New Okta Application Integration

1. On the Okta admin console, navigate to Applications and select the Create App Integration button:

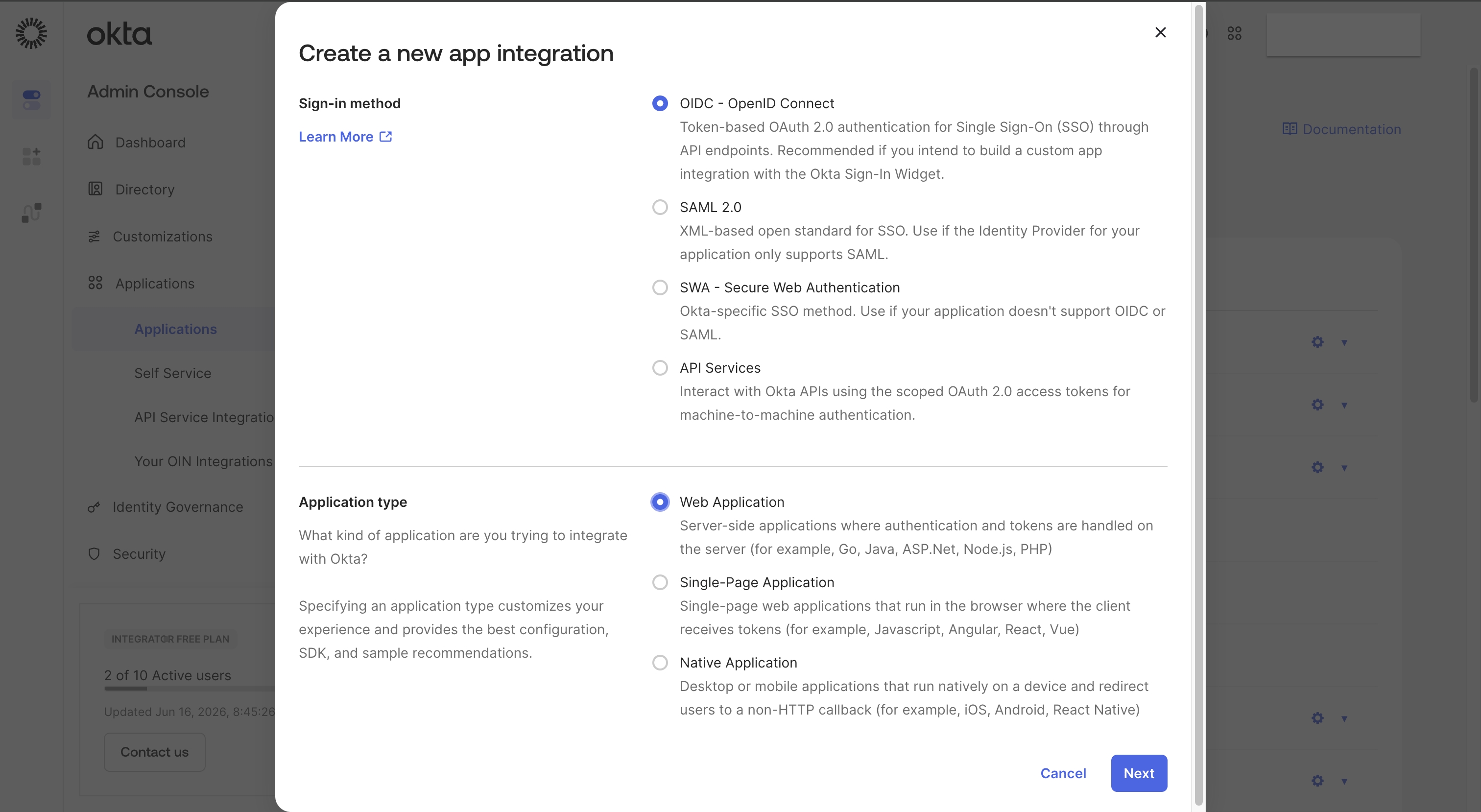

2. Select OIDC - OpenID Connect for the Sign-in method, select Web Application for the Application type, and then select the Next button to create the new application:


3. Assign a name for your application integration in the App integration name text box

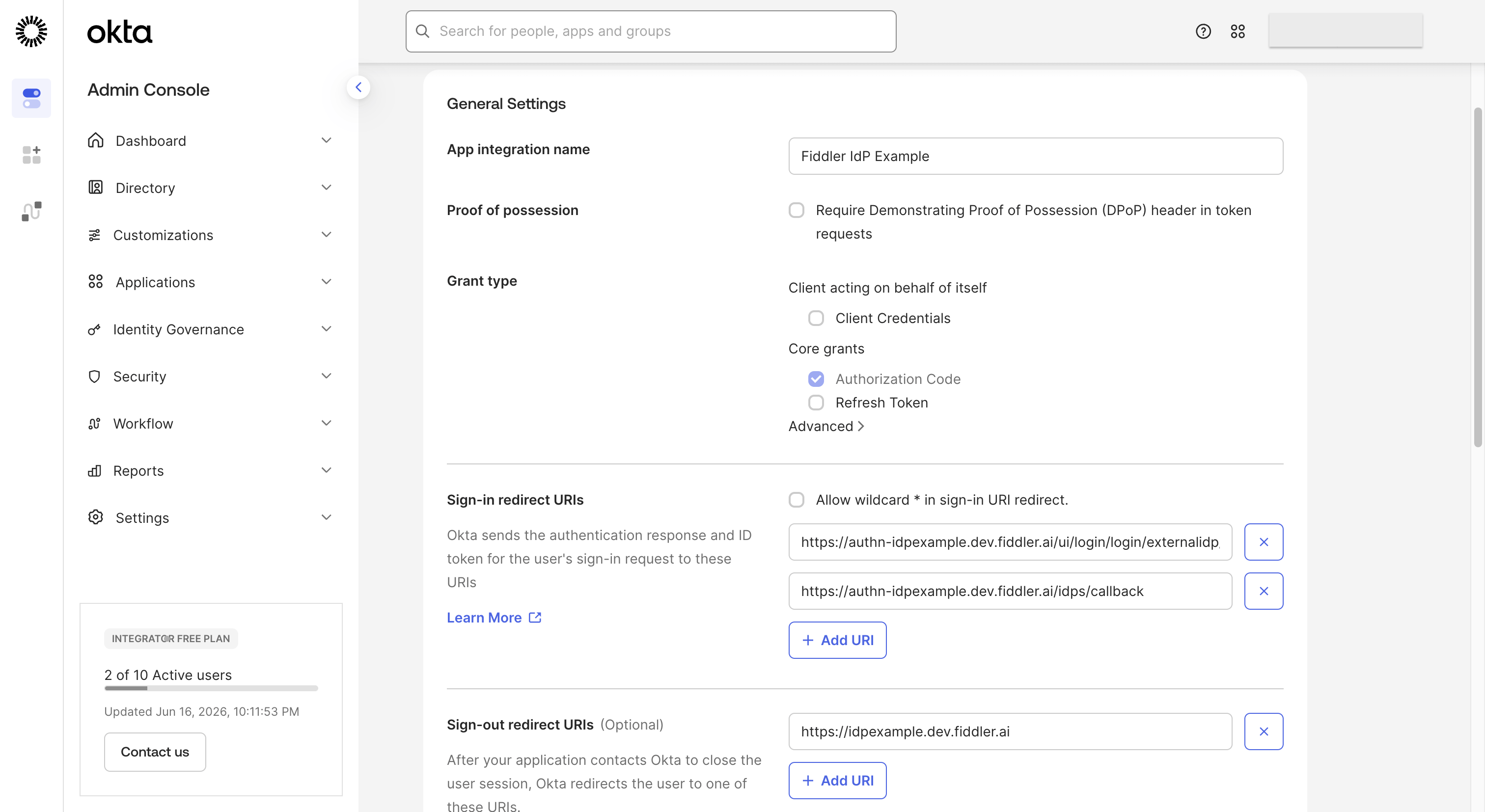

   1. Enter the first Redirect URI into the Sign-in redirect URIs text box, e.g. https://authn-example2.dev.fiddler.ai/ui/login/login/externalidp/callback

   2. Select the + Add URI button and add the second Redirect URI, e.g. https://authn-example2.dev.fiddler.ai/idps/callback

   3. Enter your base Fiddler URL into the Sign-out redirect URIs text box, e.g. https://example2.dev.fiddler.ai :


4. Select the Save button to create the application

5. With the application integration created, copy the following values to use in configuring the identity provider in the Fiddler AuthN console:

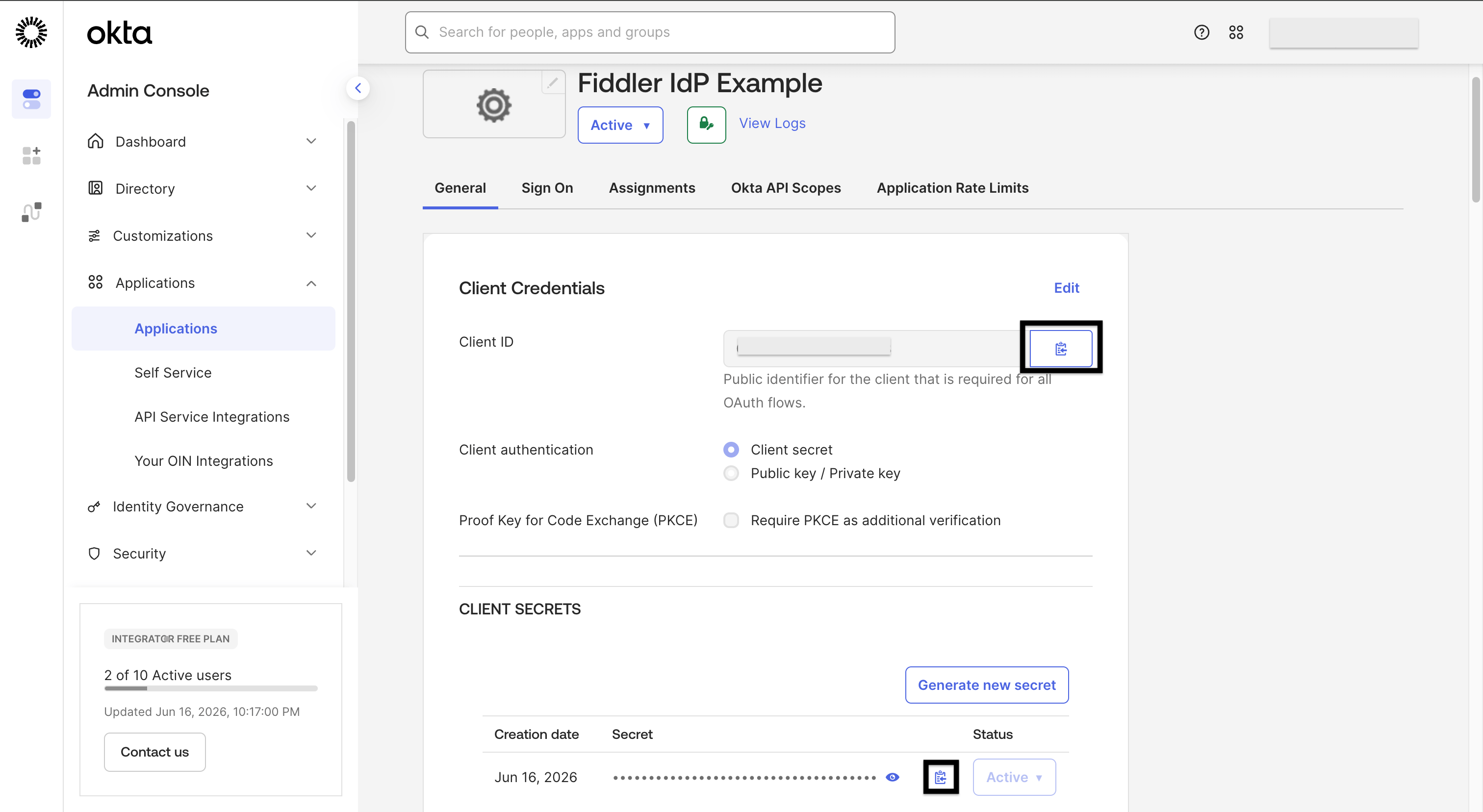

   1. On the General tab, copy the Client ID and Secret values:

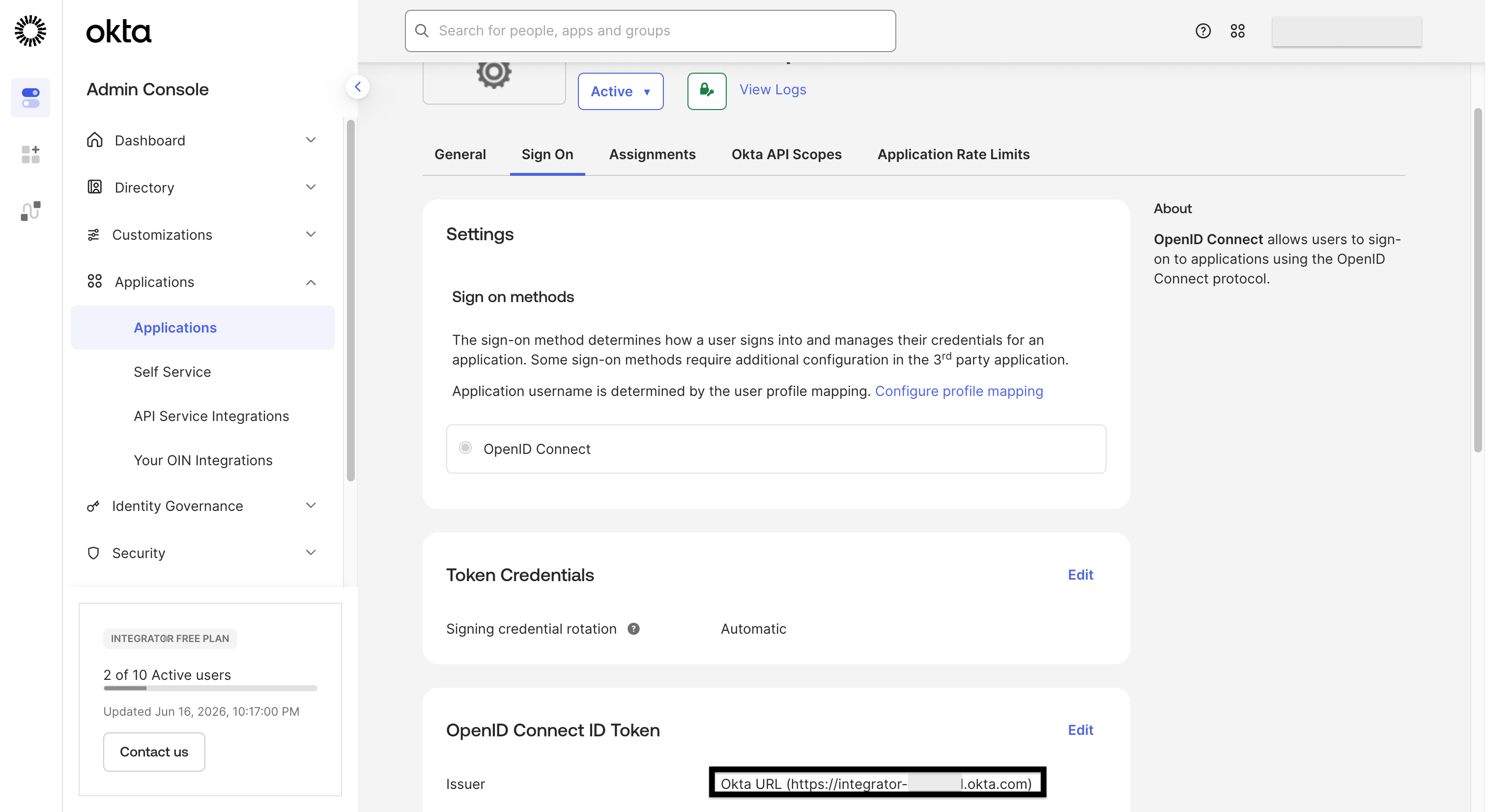

   2. On the Sign On tab, copy the Issuer URL:



Fiddler AuthN Console Sign-in

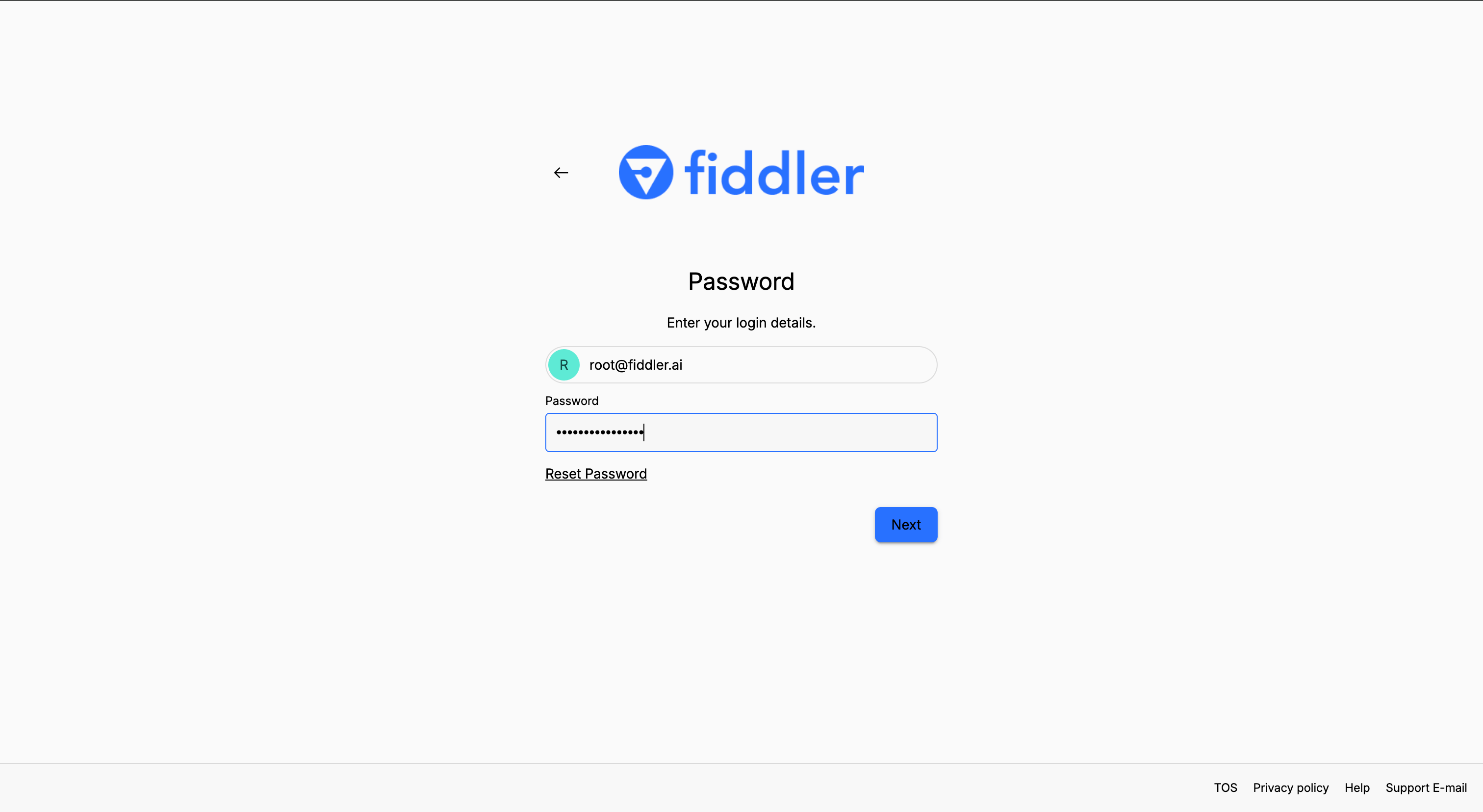

Sign in using the AuthN Console Org Owner user account credentials provided by your Fiddler representative:

Select Your Organization

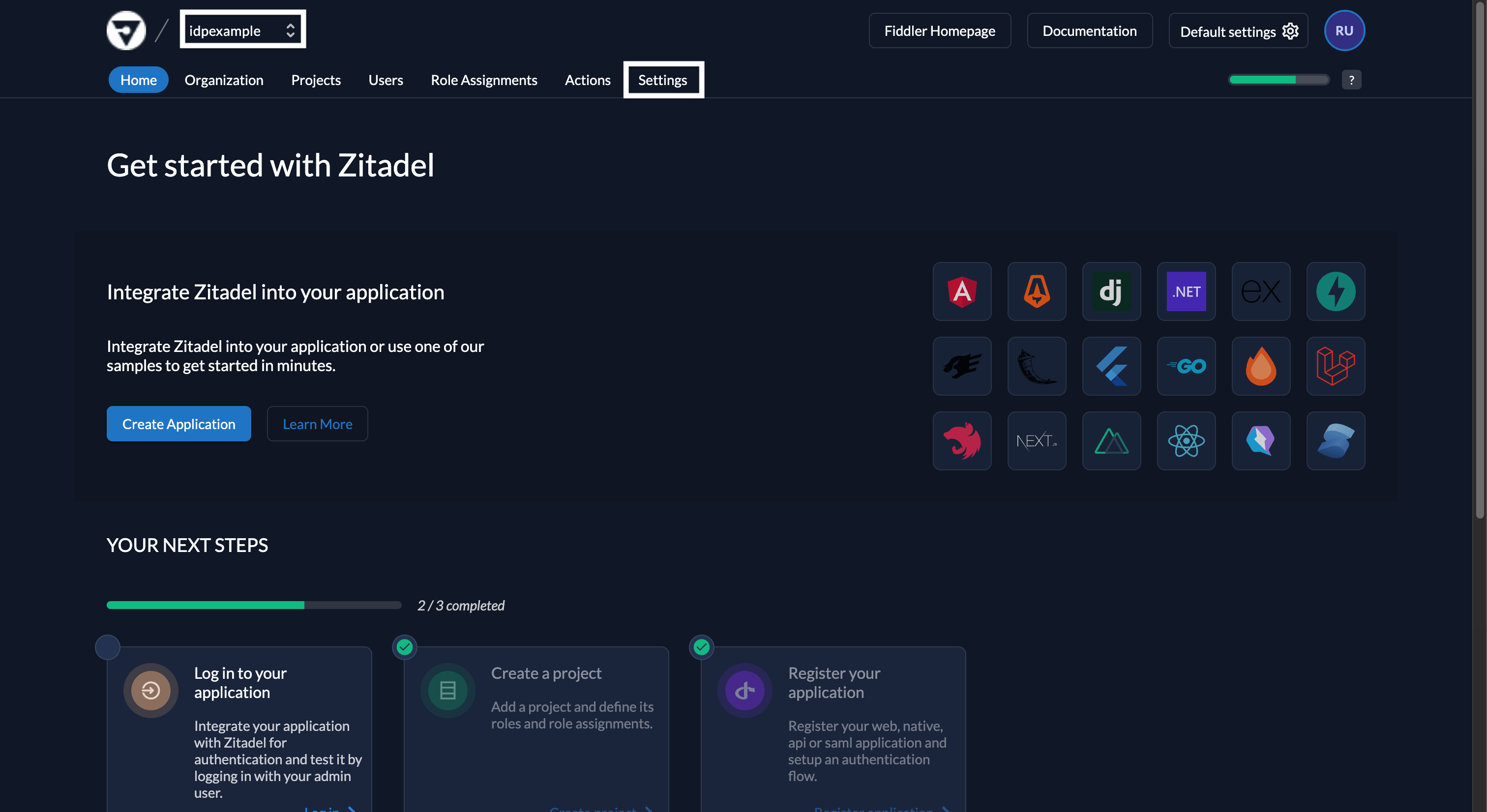

Ensure your organization is selected in the dropdown. You may see the fiddler organization, but this is reserved for system use and should not be edited. Here we are using the example1 organization:

Navigate to Identity Providers in Settings

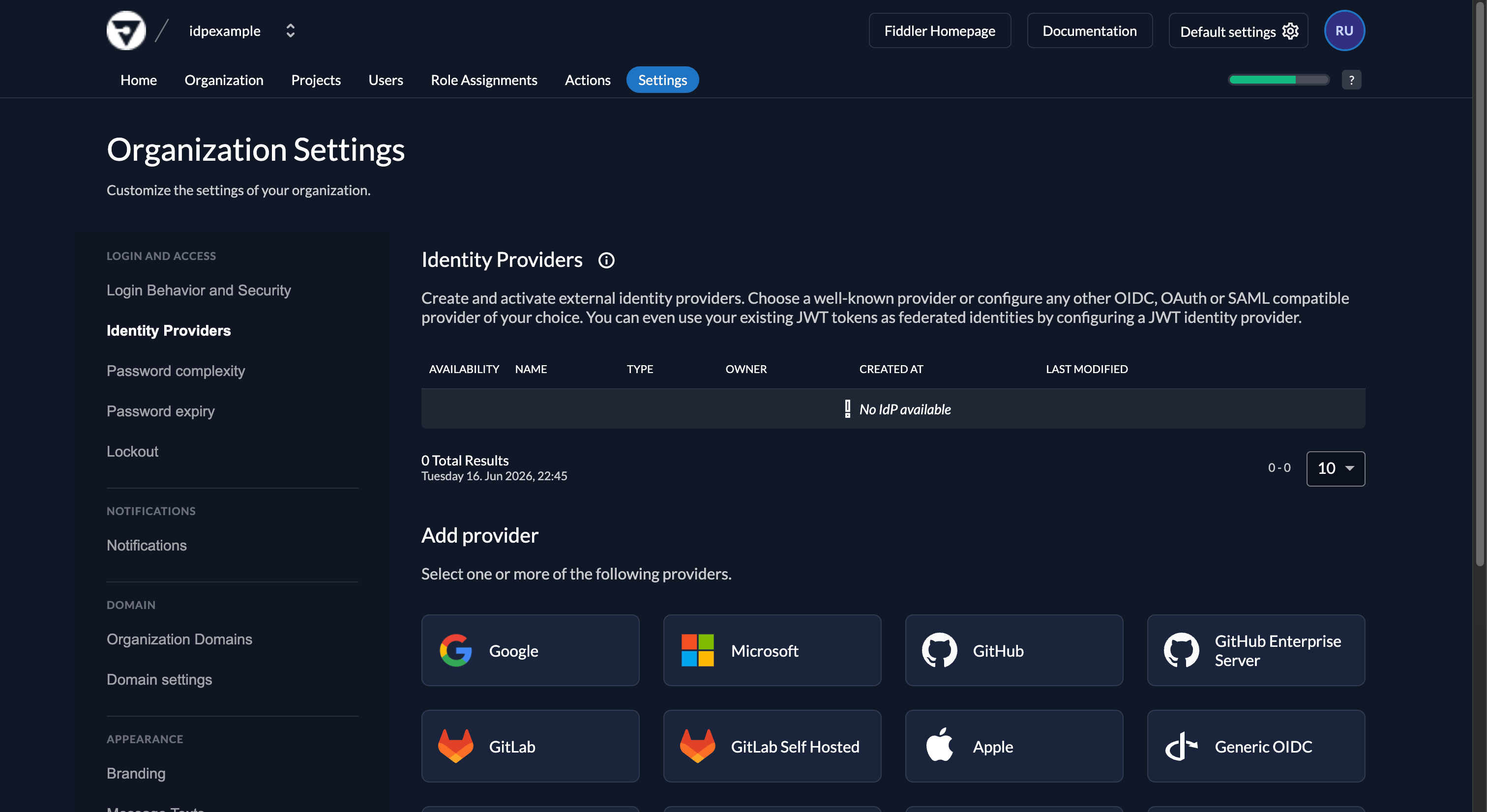

Select Settings tab from the top menu and then select Identity Providers from the left navigation menu:

Add and Configure New OIDC Provider

1. Select the Generic OIDC option in the Add provider section which brings up the OIDC Provider form.

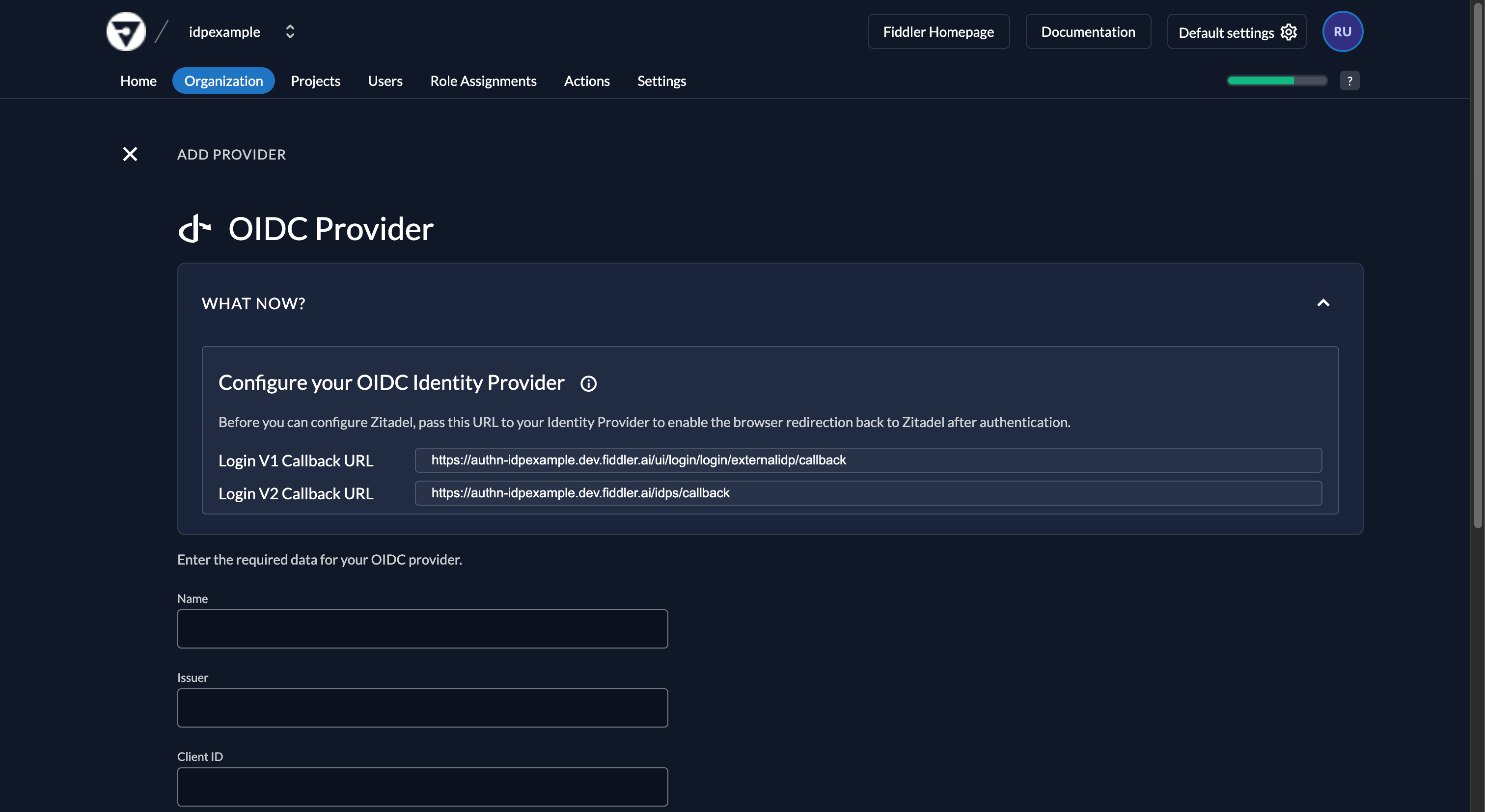

2. Copy the Callback URL and then navigate to your Okta admin console

Configure the Identity Provider in Fiddler

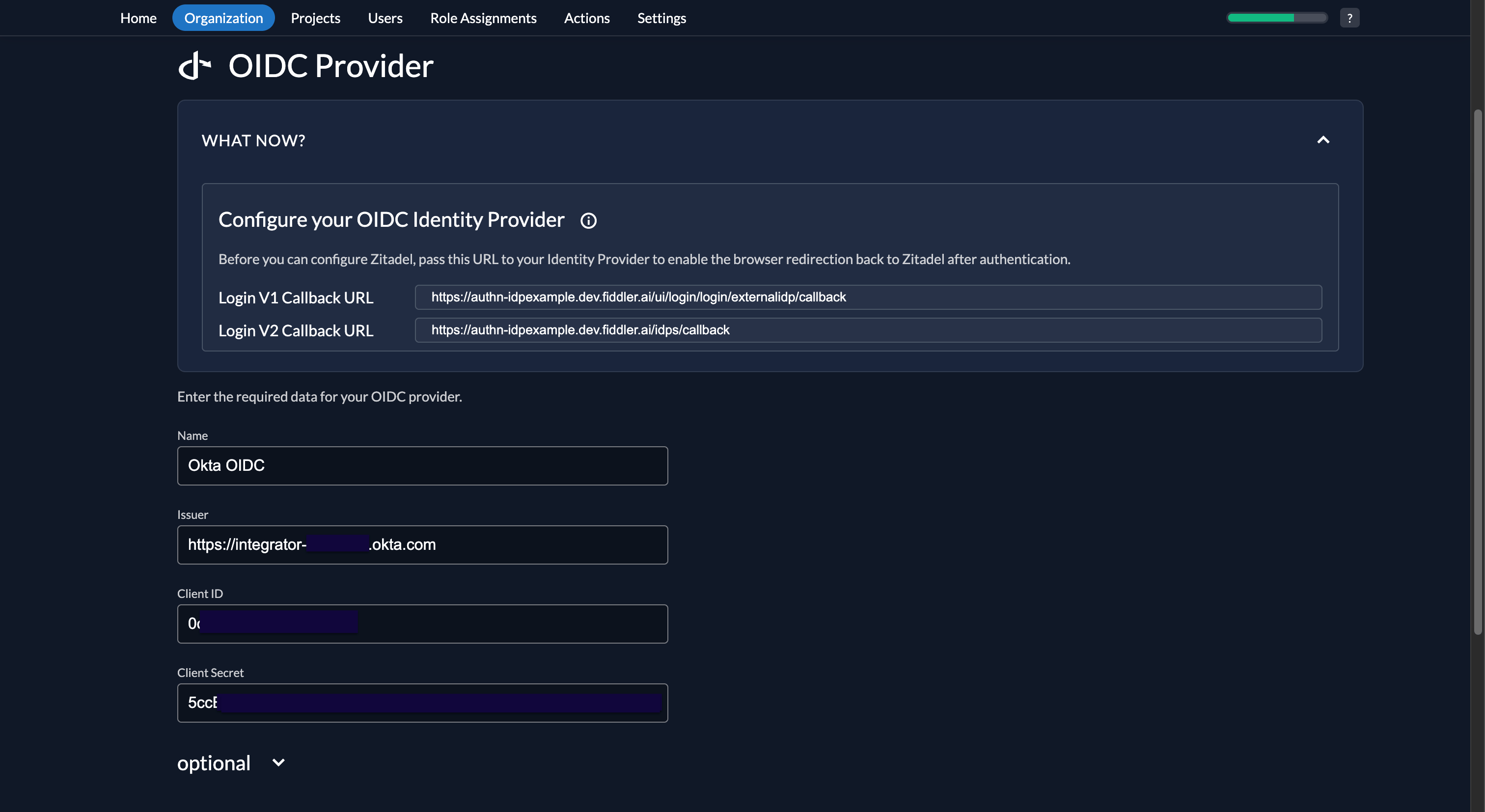

1. Return to the Fiddler AuthN console where we left off and enter the following values:

   1. Assign a name and enter it in the Name text box. Note that this name will be displayed on the SSO login button on the Fiddler sign-in page so choose a name your users will recognize.

   2. In the Issuer text box, paste the Issuer URL copied from the Okta admin console

   3. In the Client ID and Client Secret, past those values copied from the Okta admin console:



Configure Additional Parameters

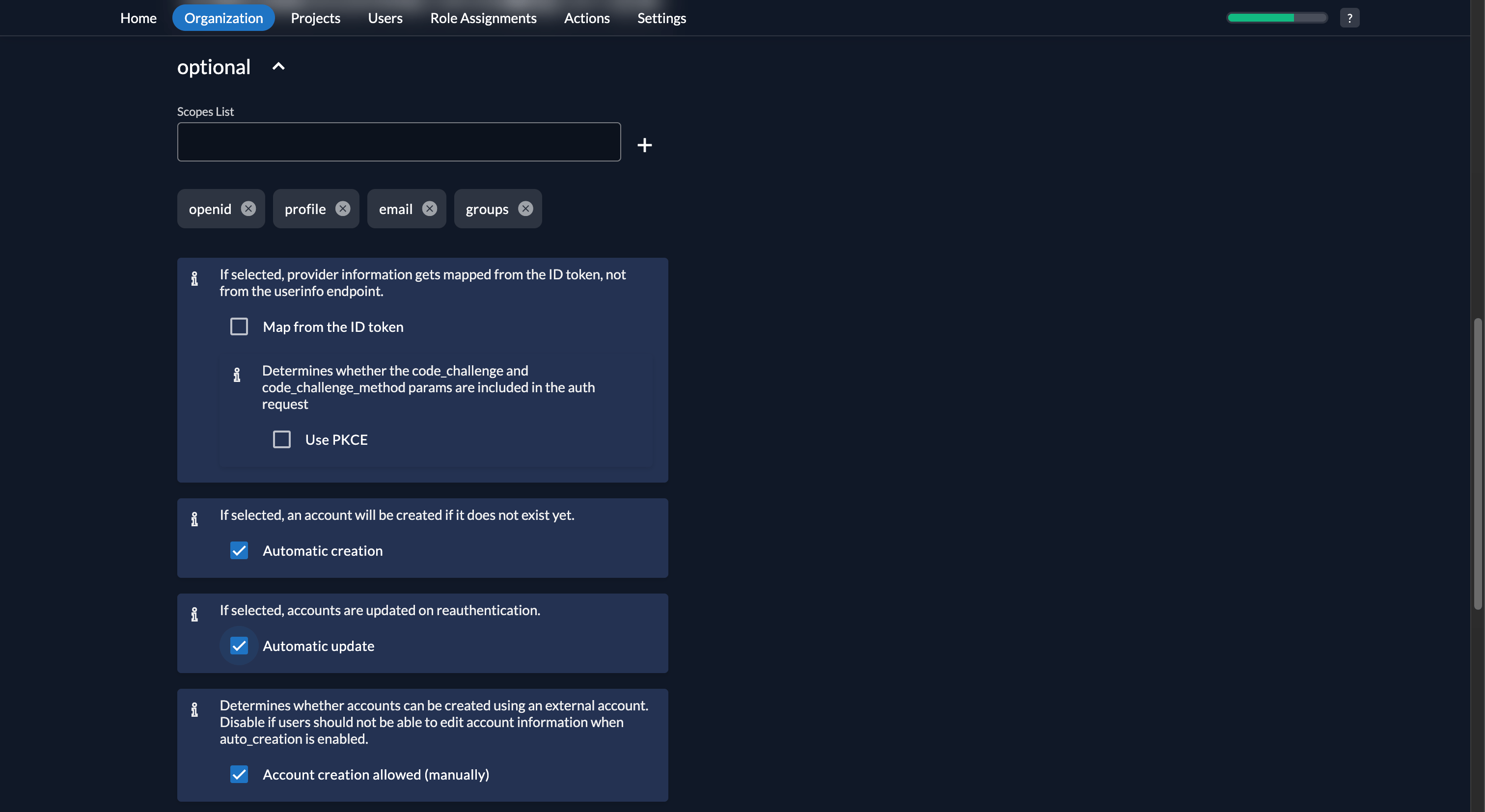

1. Expand the optional section

2. Add the text groups to the Scopes List text box and ensure it is listed along with openid, profile, and email

3. Ensure the Automatic create and Automatic update checkboxes are selected

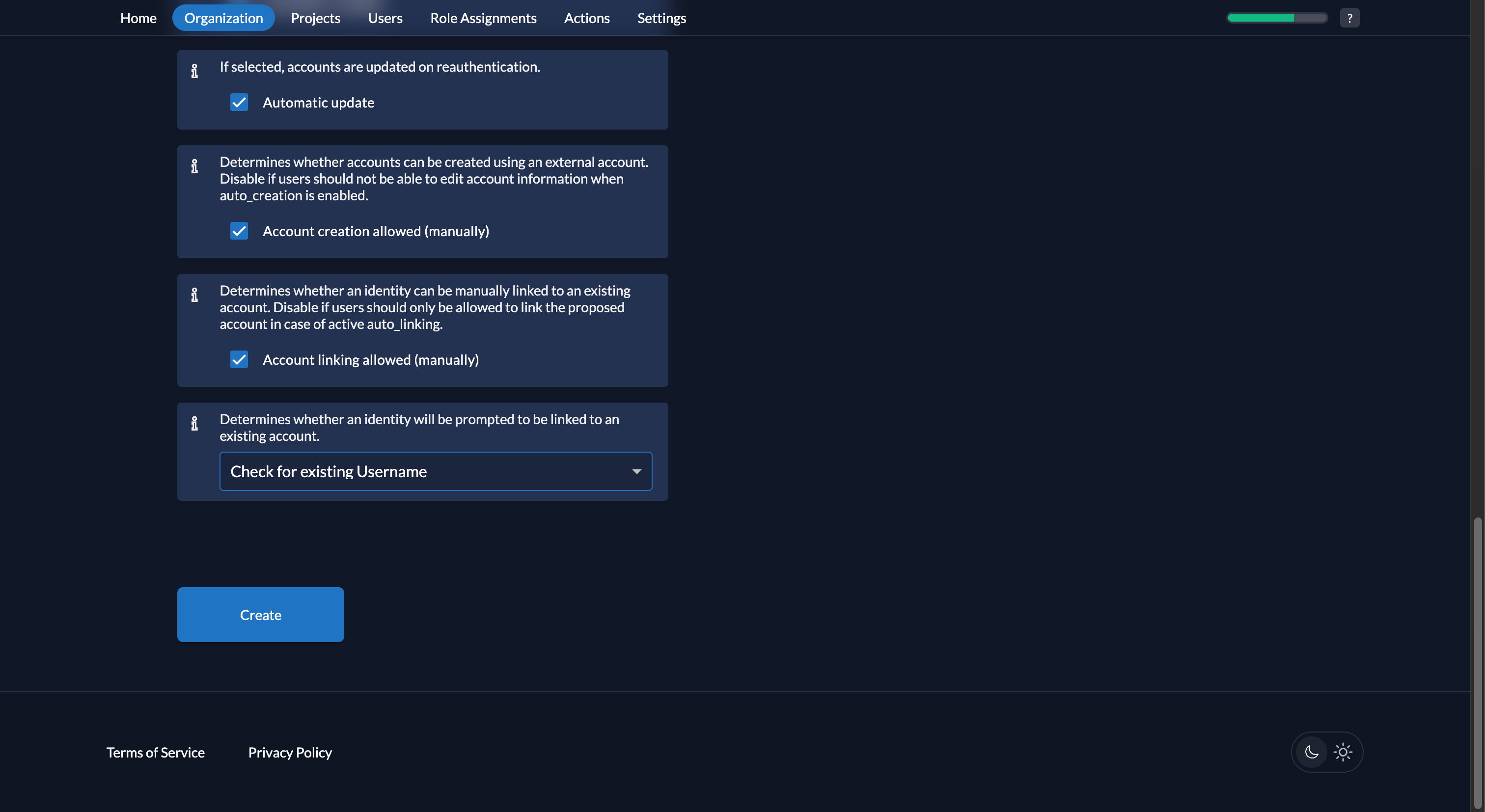

4. Set the Determines whether an identity will be prompted to be linked to an existing account dropdown to Check for existing Username

5. Select the Create button and the select the Save button

Save the Configuration Changes

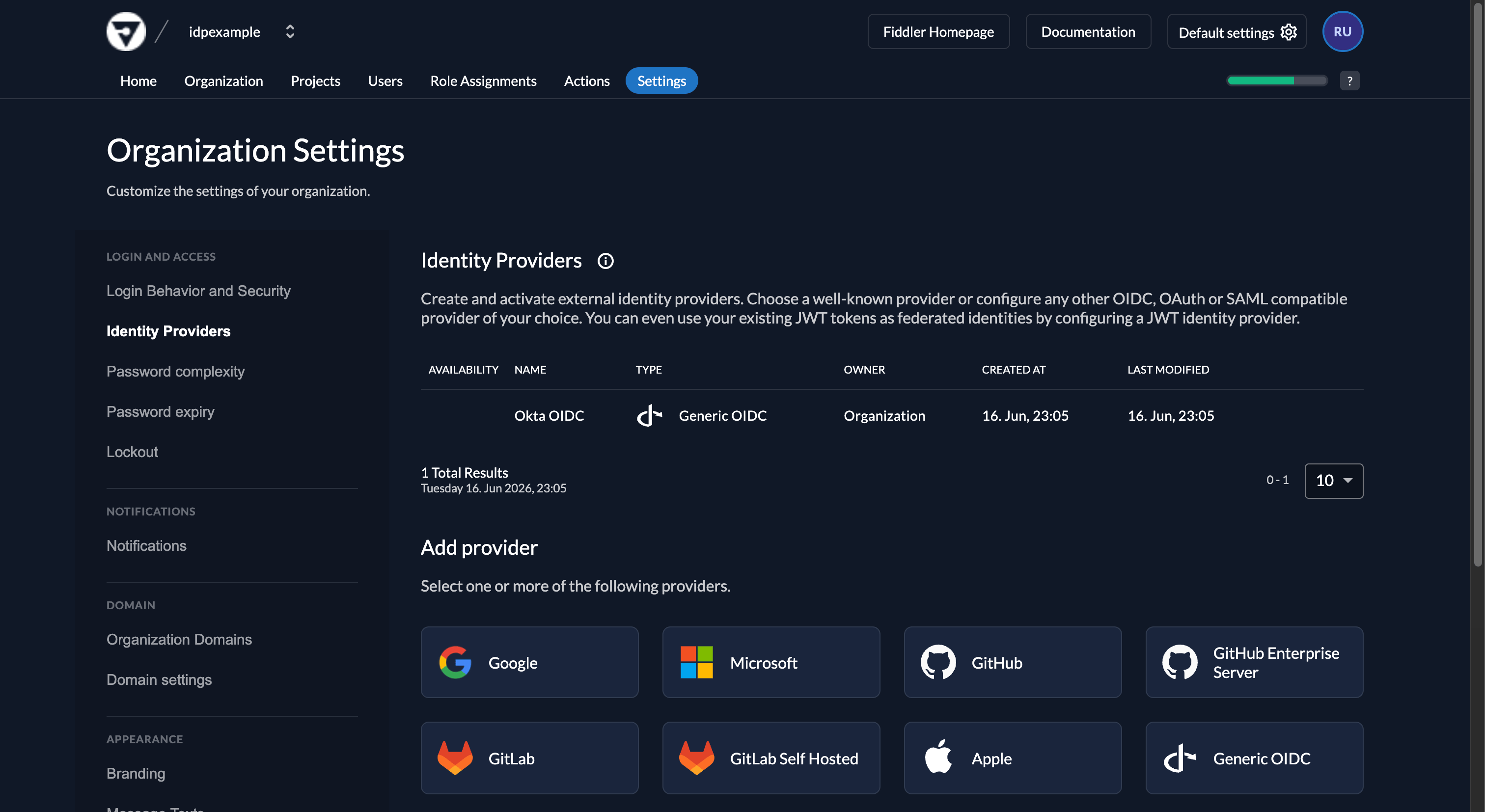

Select the Create button and then select the Save button. You will be returned to the Organization Settings page:

Activate the Okta OIDC IdP

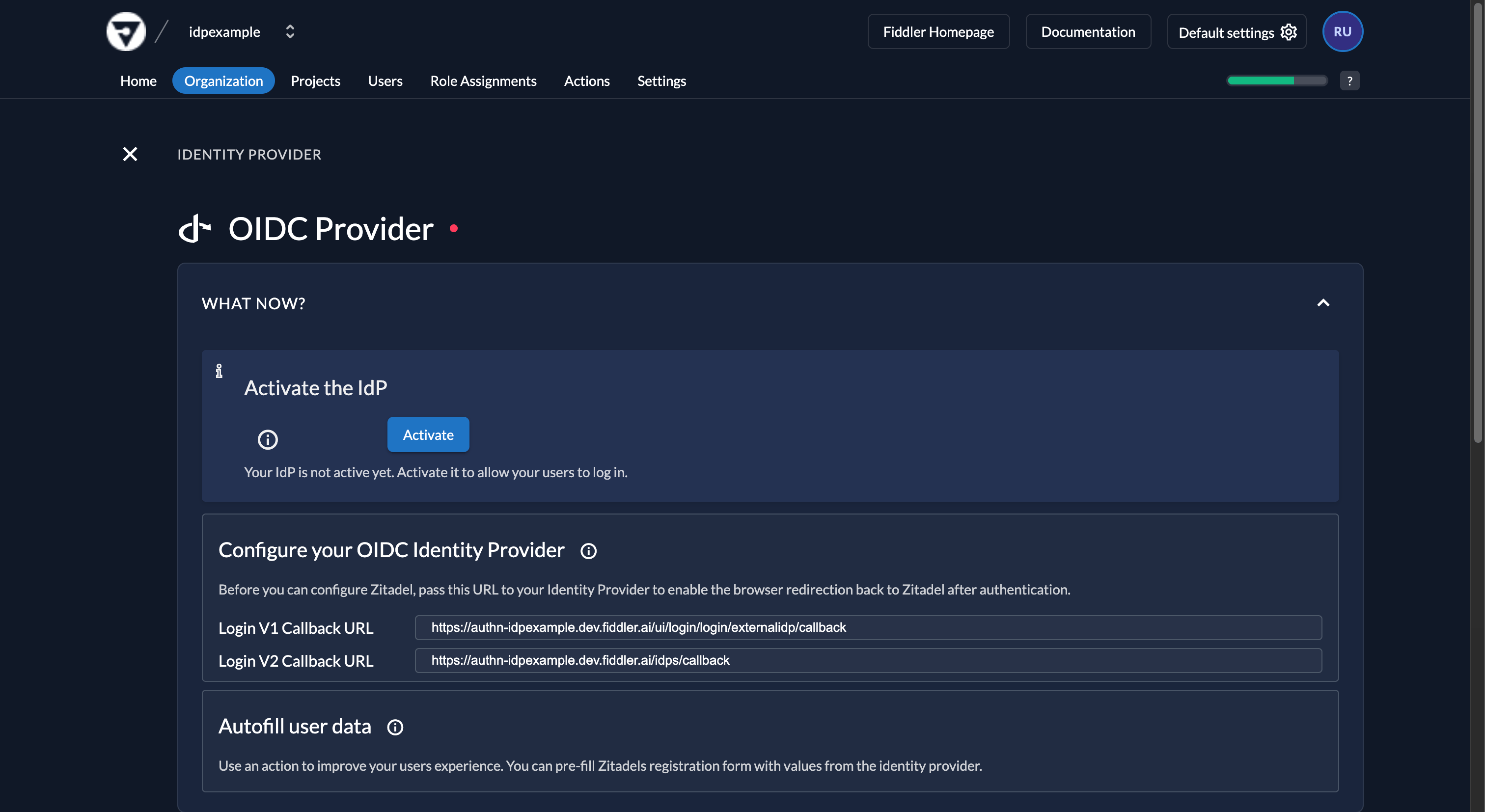

1. Select your IdP from the list and select the Activate button on the identity provider settings page:

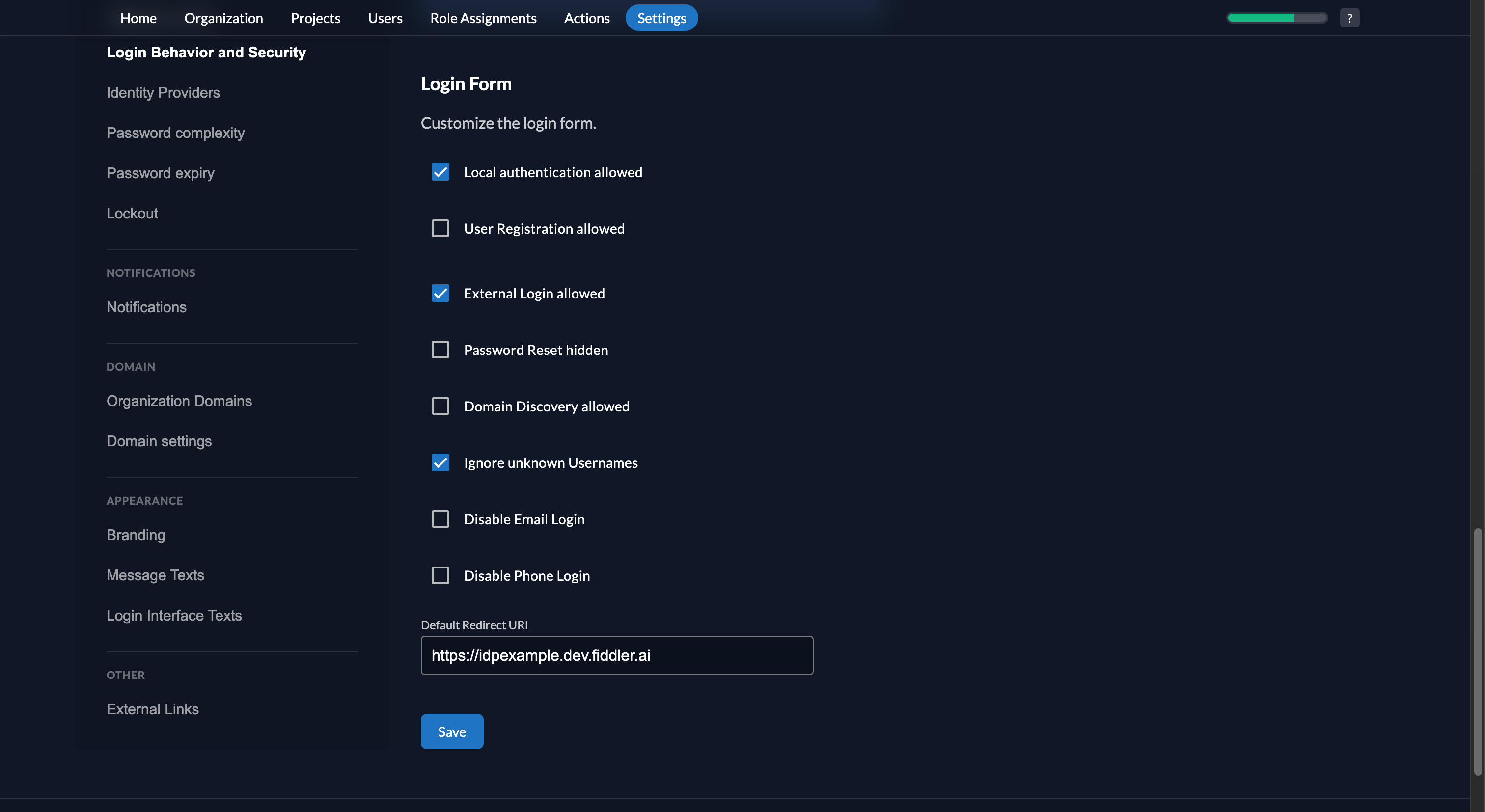

2. Close the settings and then select Login Behavior and Security from the left nav menu and ensure the External login allowed checkbox is selected.

3. Select the Save button



Create a Custom Action

Select the Actions tab from the top menu

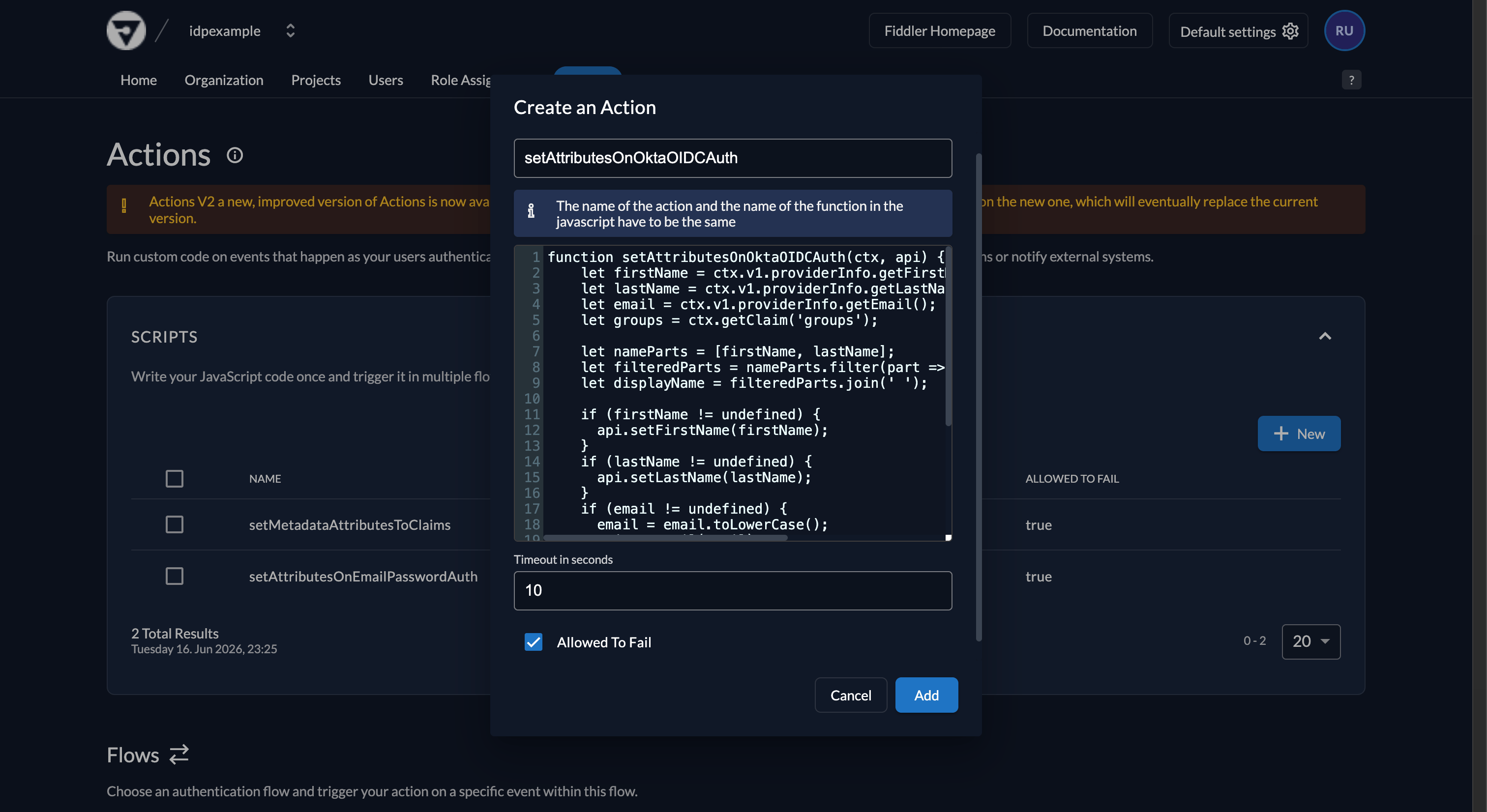

1. Select the New button in the Scripts section to create a new action script

2. Copy the Okta OIDC Action Script below and paste it into the script text area

3. Enter setAttributesOnOktaOIDCAuth in the Name text box

4. Select the Add button

function setAttributesOnOktaOIDCAuth(ctx, api) {
    let firstName = ctx.v1.providerInfo.given_name;
    let lastName = ctx.v1.providerInfo.family_name;
    let email = ctx.v1.providerInfo.email;
    let groups = ctx.getClaim('groups');

    let nameParts = [firstName, lastName];
    let filteredParts = nameParts.filter(part => part);
	  let displayName = filteredParts.join(' ');

    if (firstName != undefined) {
      api.setFirstName(firstName);
    }
    if (lastName != undefined) {
      api.setLastName(lastName);
    }
    if (email != undefined) {
      email = email.toLowerCase();
      api.setEmail(email);
      api.setEmailVerified(true);
      api.setPreferredUsername(email);
    }

    api.v1.user.appendMetadata('fiddler_authentication_type', 'SSO:OKTA:OIDC');
    if (groups === null || groups === undefined){
      groups = []
    }
    api.v1.user.appendMetadata('fiddler_groups', groups);
}

Configure the Action Trigger

Scroll down to the Flows section

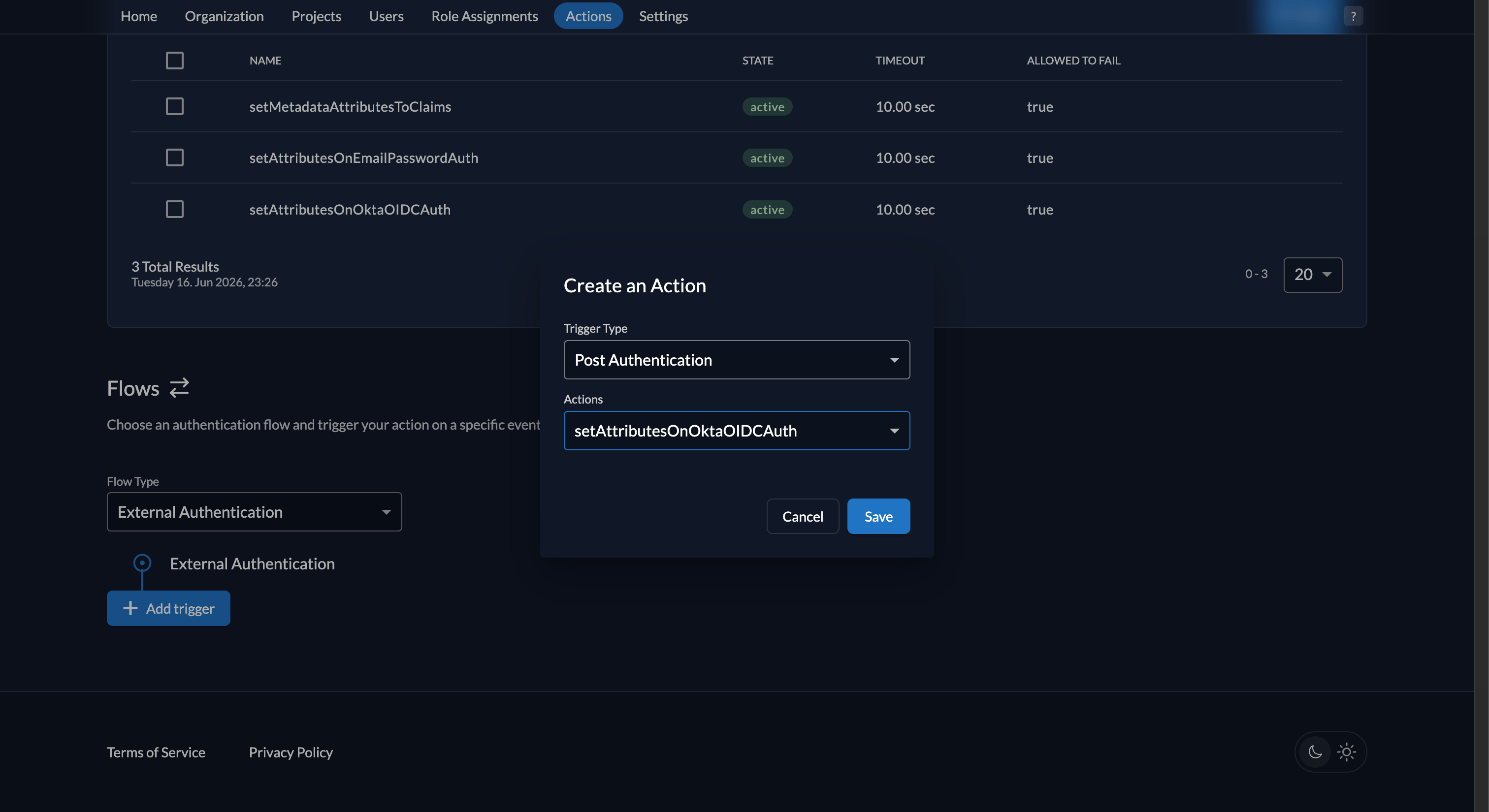

1. Select the + Add trigger button

2. Select the Post Authentication option for the Trigger Type dropdown

3. Select the setAttributesOnOktaOIDCAuth option for the Actions dropdown

4. Select the Save button

Validate the Integration

1. Enter your Fiddler URL. This is https://example2.dev.fiddler.ai in our example. Your Fiddler URL will vary according to your company name and the Fiddler deployment type.

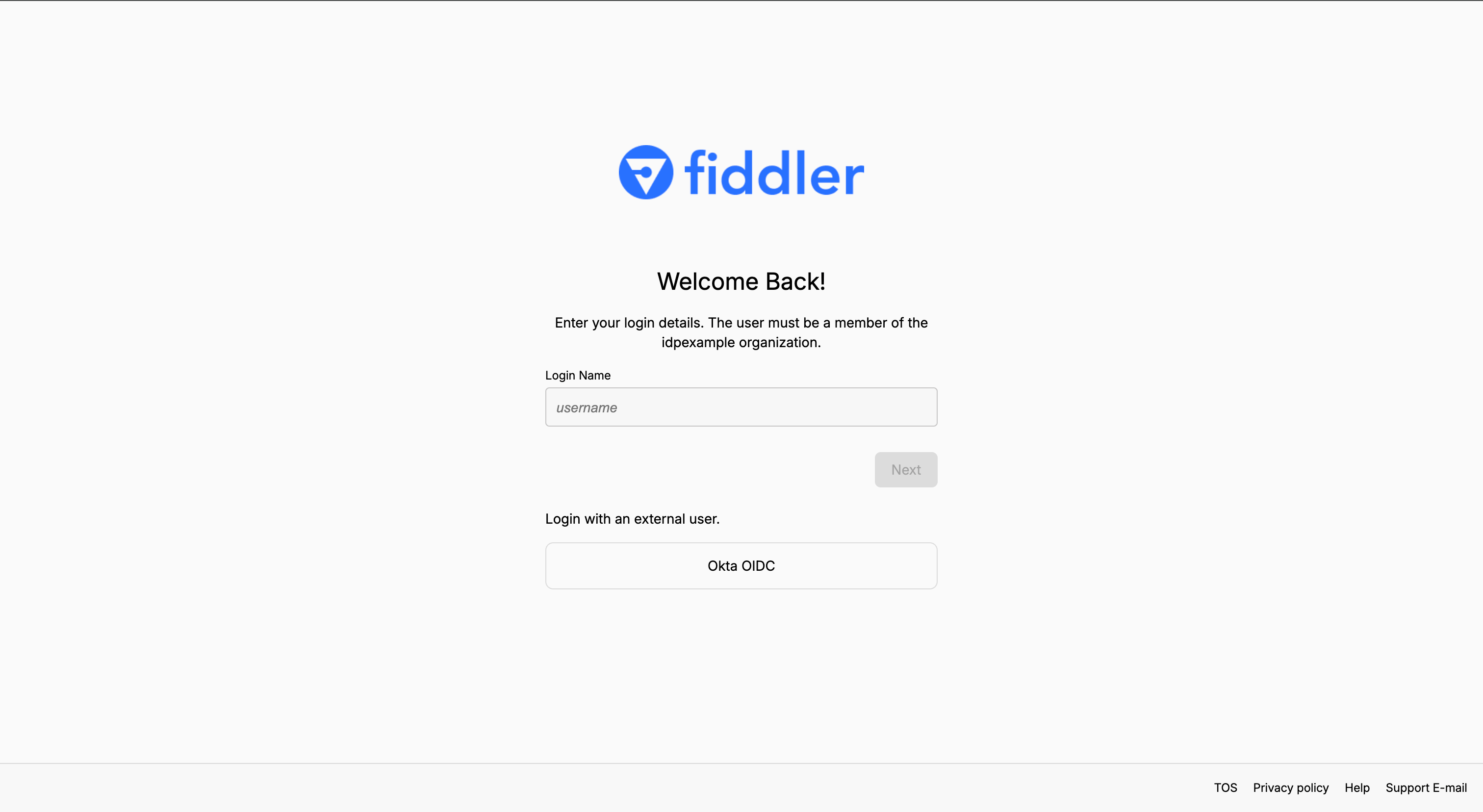

2. Ensure you see the Fiddler Sign-on page and that the page displays the SSO Login - Okta OIDC button:

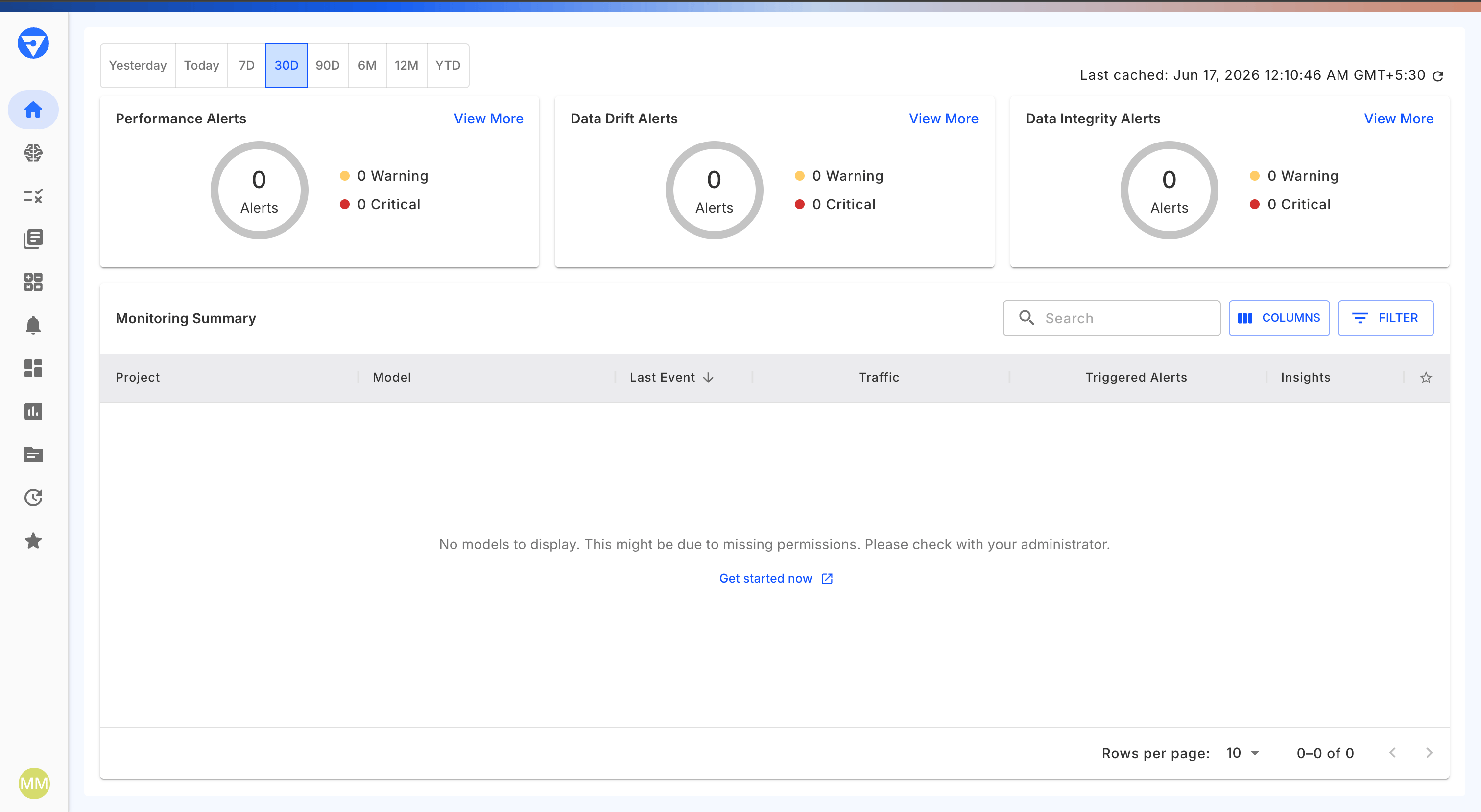

3. Select the button and confirm that the Fiddler application loads:
