Strands Agent SDK Quick Start

Learn how to integrate Strands agents with Fiddler using the Fiddler Strands SDK for automatic instrumentation and comprehensive observability of your AI agent workflows.

What You'll Learn

In this guide, you'll learn how to:

• Set up a Fiddler application for monitoring Strands agents

• Install and configure the Fiddler Strands SDK

• Instrument Strands agents with automatic telemetry

• Use helper functions to add custom metadata

• Verify monitoring is working correctly

• Troubleshoot common integration issues

Time to complete: ~15 minutes

Prerequisites

Before you begin, ensure you have:

• Fiddler Account: An active account with access to create applications

• Python 3.10+: Verify your version:

  python --version

• Fiddler Strands SDK: Install the SDK (includes Strands agents and OpenTelemetry):

  # Using uv (recommended)
  uv add fiddler-strands

  # Or using pip
  pip install fiddler-strands

• OpenAI API Key: For running the example agent:

  export OPENAI_API_KEY=<your-openai-key>

If you prefer using a notebook, download it directly from GitHub or open it in Google Colab to get started.

1

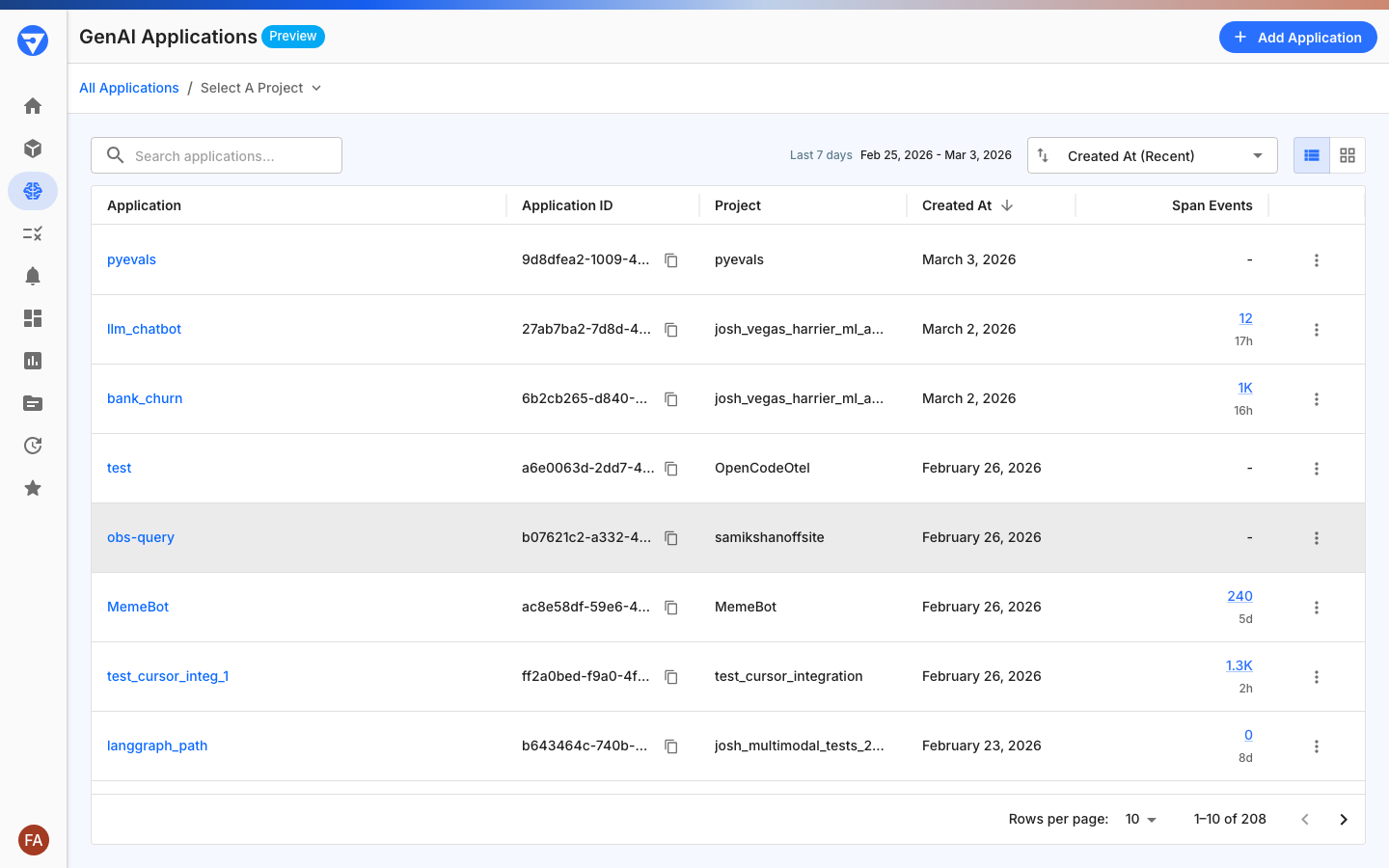

Create a Fiddler Application

First, create a dedicated application in Fiddler to receive your agent traces.

1. Sign in to your Fiddler instance

2. Navigate to Gen AI Apps in the left sidebar

3. Click Create Application

4. Enter the application details:

   • Name: strands-agent-monitoring

   • Project: Select a project from the dropdown or press Enter to create a new one

5. Click Create and copy the Application UUID (you'll need this for configuration)

2

Configure Environment Variables

Set up the required environment variables for Fiddler integration. Replace the placeholder values with your actual credentials.

Instructions for generating or retrieving your personal access token can be found in the Access guide.

# Fiddler URL (adjust domain for your instance)
export OTEL_EXPORTER_OTLP_ENDPOINT="http://demo.fiddler.ai"

# Your application UUID from Step 1
export OTEL_RESOURCE_ATTRIBUTES=application.id=<APPLICATION_UUID>

# Authentication headers (get access token from Fiddler settings)
export OTEL_EXPORTER_OTLP_HEADERS="authorization=Bearer <BEARER_TOKEN>,fiddler-application-id=<APPLICATION_UUID>"

# Your OpenAI API key
export OPENAI_API_KEY=<OPENAI_KEY>

Tip: Save these environment variables in a .env file for easy reuse:

# Save to .env file
cat > .env << 'EOF'
OTEL_EXPORTER_OTLP_ENDPOINT=http://demo.fiddler.ai
OTEL_RESOURCE_ATTRIBUTES=application.id=<APPLICATION_UUID>
OTEL_EXPORTER_OTLP_HEADERS=authorization=Bearer <BEARER_TOKEN>,fiddler-application-id=<APPLICATION_UUID>
OPENAI_API_KEY=<OPENAI_KEY>
EOF

# Load in your shell
source .env

3

Set Up Strands Telemetry and Instrumentation

Now configure the Strands telemetry system with automatic Fiddler instrumentation using the SDK.

Create agent_monitoring.py:

import os
from strands.telemetry import StrandsTelemetry
from fiddler_strandsagents import StrandsAgentInstrumentor

# Initialize Strands telemetry
strands_telemetry = StrandsTelemetry()

# Setup exporters
strands_telemetry.setup_console_exporter()  # For local debugging
strands_telemetry.setup_otlp_exporter()     # For Fiddler export

# Enable automatic instrumentation with Fiddler integration
StrandsAgentInstrumentor(strands_telemetry).instrument()

Configuration Breakdown:

• Console Exporter: Prints traces to terminal for debugging

• OTLP Exporter: Sends traces to Fiddler via OpenTelemetry Protocol

• StrandsAgentInstrumentor: Automatically instruments agents with proper attribute propagation and Fiddler integration

What the SDK Does Automatically:

• Injects logging hooks into Strands agents

• Propagates agent attributes (name, ID, system prompt) to all child spans

• Processes spans with Fiddler-specific enhancements

• Handles all OpenTelemetry complexity behind the scenes

4

Create and Instrument Your Agent

With telemetry configured, create a Strands agent that's fully instrumented for Fiddler monitoring.

Add to agent_monitoring.py:

from strands import Agent, tool
from strands.models.openai import OpenAIModel

# Initialize OpenAI model
model = OpenAIModel(
    client_args={"api_key": os.getenv("OPENAI_API_KEY")},
    model_id="gpt-4o-mini"
)

# Define example tools
@tool
def get_weather(city: str) -> str:
    """Get the current weather for a city.

    Args:
        city: The name of the city

    Returns:
        Weather information as a string
    """
    # In production, call a real weather API
    return f"The weather in {city} is sunny with a temperature of 72°F"

@tool
def search_knowledge_base(query: str) -> str:
    """Search the knowledge base for information.

    Args:
        query: The search query

    Returns:
        Relevant information from the knowledge base
    """
    # In production, implement actual search logic
    return f"Search results for '{query}': [relevant documentation snippets]"

# Create the agent with telemetry enabled
agent = Agent(
    model=model,
    system_prompt="""You are a helpful assistant that can check weather
    and search a knowledge base. Always be concise and accurate in your responses.""",
    tools=[get_weather, search_knowledge_base]
)

# Use the agent
if __name__ == "__main__":
    # Example 1: Simple query
    response = agent("What's the weather like in San Francisco?")
    print(f"Response: {response}")

    # Example 2: Knowledge base query
    response = agent("Search for information about model monitoring")
    print(f"Response: {response}")

Run your instrumented agent:

python agent_monitoring.py

5

Verify Monitoring in Fiddler

After running your agent, verify that traces are appearing in Fiddler.

1. Navigate to your application in Fiddler

2. Click on the Traces tab

3. You should see traces from your agent executions

4. Click on a trace to view detailed span information

5. Verify that agent attributes are present:

   • gen_ai.agent.name

   • gen_ai.agent.id

   • system_prompt

Success Indicators:

• ✅ Traces appear within 30 seconds of agent execution

• ✅ Parent and child spans are properly linked

• ✅ Agent attributes appear on all relevant spans

• ✅ Tool calls are captured as separate spans

• ✅ System prompts are visible in trace metadata

Troubleshooting

Traces Not Appearing in Fiddler

Issue: No traces show up after running your agent.

Solutions:

1. Verify environment variables:

   echo $OTEL_EXPORTER_OTLP_ENDPOINT
   echo $OTEL_RESOURCE_ATTRIBUTES
   echo $OTEL_EXPORTER_OTLP_HEADERS

2. Check network connectivity:

   curl -I $OTEL_EXPORTER_OTLP_ENDPOINT

3. Validate authentication:

   • Ensure your access token is valid and not expired

   • Verify Application UUID matches your Fiddler application

4. Review console exporter output:

   • Check the terminal for trace output

   • Look for error messages in console logs

Missing Agent Attributes on Child Spans

Issue: Tool calls and sub-spans don't have agent context.

Solutions:

1. Verify SDK instrumentation is enabled:

   # Should be in your code
   from fiddler_strandsagents import StrandsAgentInstrumentor

   StrandsAgentInstrumentor(strands_telemetry).instrument()

2. Check instrumentation status:

   from fiddler_strandsagents import StrandsAgentInstrumentor

   instrumentor = StrandsAgentInstrumentor(strands_telemetry)
   print(f"Instrumented: {instrumentor.is_instrumented_by_opentelemetry}")

3. Add custom attributes using helper functions:

   from fiddler_strandsagents import set_span_attributes

   # Add custom attributes to ensure they appear on spans
   set_span_attributes(agent, custom_attr="value")
   set_span_attributes(model, environment="production")

OTLP Export Errors

Issue: Error messages about OTLP export failures.

Solutions:

1. Check endpoint format:

   # Should be https://, not include /v1/traces
   export OTEL_EXPORTER_OTLP_ENDPOINT="http://demo.fiddler.ai"

2. Verify headers format:

   # Headers should be comma-separated key=value pairs
   export OTEL_EXPORTER_OTLP_HEADERS="authorization=Bearer TOKEN,fiddler-application-id=UUID"

3. Test with a minimal example:

   from opentelemetry import trace
   from opentelemetry.sdk.trace import TracerProvider
   from opentelemetry.sdk.trace.export import BatchSpanProcessor
   from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter

   provider = TracerProvider()
   processor = BatchSpanProcessor(OTLPSpanExporter())
   provider.add_span_processor(processor)
   trace.set_tracer_provider(provider)

   tracer = trace.get_tracer(__name__)
   with tracer.start_as_current_span("test-span"):
       print("Test trace sent")

Performance Issues

Issue: Agent response times are slower after adding monitoring.

Solutions:

1. Use batch span processor (already default in StrandsTelemetry):

   # Batching reduces overhead
   from opentelemetry.sdk.trace.export import BatchSpanProcessor

2. Disable console exporter in production:

   # Only use OTLP exporter
   # strands_telemetry.setup_console_exporter()  # Comment out
   strands_telemetry.setup_otlp_exporter()

3. Adjust sampling rate if needed:

   from opentelemetry.sdk.trace.sampling import TraceIdRatioBased

   # Sample 10% of traces
   sampler = TraceIdRatioBased(0.1)

Configuration Options

Basic Configuration

For most use cases, the basic configuration is sufficient:

from strands.telemetry import StrandsTelemetry
from fiddler_strandsagents import StrandsAgentInstrumentor

strands_telemetry = StrandsTelemetry()
strands_telemetry.setup_otlp_exporter()
StrandsAgentInstrumentor(strands_telemetry).instrument()

Adding Custom Metadata with Helper Functions

The SDK provides helper functions to enrich your traces with custom business context:

from fiddler_strandsagents import (
    set_conversation_id,
    set_session_attributes,
    set_span_attributes,
    set_llm_context
)

# Set conversation ID for tracking related interactions
set_conversation_id(agent, 'session_1234567890')

# Add session-level attributes for business context
set_session_attributes(agent,
    role='customer_support',
    cost_center='travel_desk',
    region='us-west'
)

# Add attributes to specific components (models or tools)
set_span_attributes(model, model_id='gpt-4o-mini', temperature=0.7)
set_span_attributes(search_tool, department='search', version='2.0')

# Set LLM context for additional background information
set_llm_context(model, 'Available hotels: Hilton, Marriott, Hyatt...')

Helper Functions Available:

• set_conversation_id(agent, conversation_id) - Track multi-turn conversations

• set_session_attributes(agent, **kwargs) - Add session-level business context

• set_span_attributes(obj, **kwargs) - Add attributes to models, tools, or agents

• set_llm_context(model, context) - Add background information for LLM interactions

• get_conversation_id(agent) - Retrieve conversation ID

• get_session_attributes(agent) - Retrieve session attributes

• get_span_attributes(obj) - Retrieve span attributes

• get_llm_context(model) - Retrieve LLM context

Advanced Configuration

For production deployments with custom resource metadata and batch settings:

import os
from strands.telemetry import StrandsTelemetry
from fiddler_strandsagents import StrandsAgentInstrumentor
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.resources import Resource

# Create custom resource with additional metadata
resource = Resource.create({
    "service.name": "strands-agent-service",
    "service.version": "1.0.0",
    "deployment.environment": os.getenv("ENVIRONMENT", "production"),
    "application.id": os.getenv("FIDDLER_APP_ID"),
})

# Initialize tracer provider with custom resource
provider = TracerProvider(resource=resource)

# Configure OTLP exporter with custom settings
otlp_exporter = OTLPSpanExporter(
    endpoint=os.getenv("OTEL_EXPORTER_OTLP_ENDPOINT"),
    headers={
        "authorization": f"Bearer {os.getenv('FIDDLER_BEARER_TOKEN')}",
        "fiddler-application-id": os.getenv("FIDDLER_APP_ID"),
    },
    timeout=10,  # Custom timeout in seconds
)

# Add batch processor with custom settings
batch_processor = BatchSpanProcessor(
    otlp_exporter,
    max_queue_size=2048,        # Max spans in queue
    max_export_batch_size=512,  # Spans per export batch
    schedule_delay_millis=5000, # Export every 5 seconds
)
provider.add_span_processor(batch_processor)

# Initialize Strands telemetry with custom provider
strands_telemetry = StrandsTelemetry(tracer_provider=provider)

# Enable Fiddler instrumentation
StrandsAgentInstrumentor(strands_telemetry).instrument()

Advanced Options Explained:

• Custom Resource: Add service metadata for better organization

• Batch Settings: Tune for your throughput requirements

• Timeout Configuration: Adjust for network conditions

• Environment Tagging: Separate dev/staging/prod traces

• SDK Integration: Works seamlessly with custom OpenTelemetry configurations

Multi-Agent Configuration

For systems with multiple agents:

from strands import Agent
from strands.models.openai import OpenAIModel

# Create multiple agents with distinct identities
research_agent = Agent(
    model=OpenAIModel(model_id="gpt-4o"),
    system_prompt="You are a research specialist...",
    tools=[search_tool, analyze_tool],
    agent_id="research-agent",  # Unique identifier
    agent_name="Research Specialist"
)

writing_agent = Agent(
    model=OpenAIModel(model_id="gpt-4o"),
    system_prompt="You are a writing specialist...",
    tools=[write_tool, edit_tool],
    agent_id="writing-agent",
    agent_name="Writing Specialist"
)

# Agents will appear separately in Fiddler traces

Multi-Agent Benefits:

• ✅ Distinct agent identification in traces

• ✅ Separate performance metrics per agent

• ✅ Clear visualization of agent interactions

• ✅ Easier debugging of complex workflows

Next Steps

Now that you have Strands agents integrated with Fiddler, explore these advanced capabilities:

Advanced Observability and Evaluation

• Evaluations: Score and enrich your agent telemetry

---

❓ Questions? Talk to a product expert or request a demo.

💡 Need help? Contact us at [email protected].
