Create a Project and Model

What is a Project?

A project helps organize models under observation and serves as the authorization unit to manage access to your models. To onboard a model to Fiddler, you need to have a project to associate it with. Once Fiddler's Python client is connected to your environment, you can either create a new project or use an existing one to onboard your model.

Create a Project

Using the Python client, you can create a project by calling the Project object's create function after setting the desired project name.

# Please be mindful that the Project name must be unique and should not have spaces or special characters.

PROJECT_NAME = 'quickstart_example'

## Create the Project
project = fdl.Project(name=PROJECT_NAME)
project.create()
print(f'New project created with id = {project.id}')

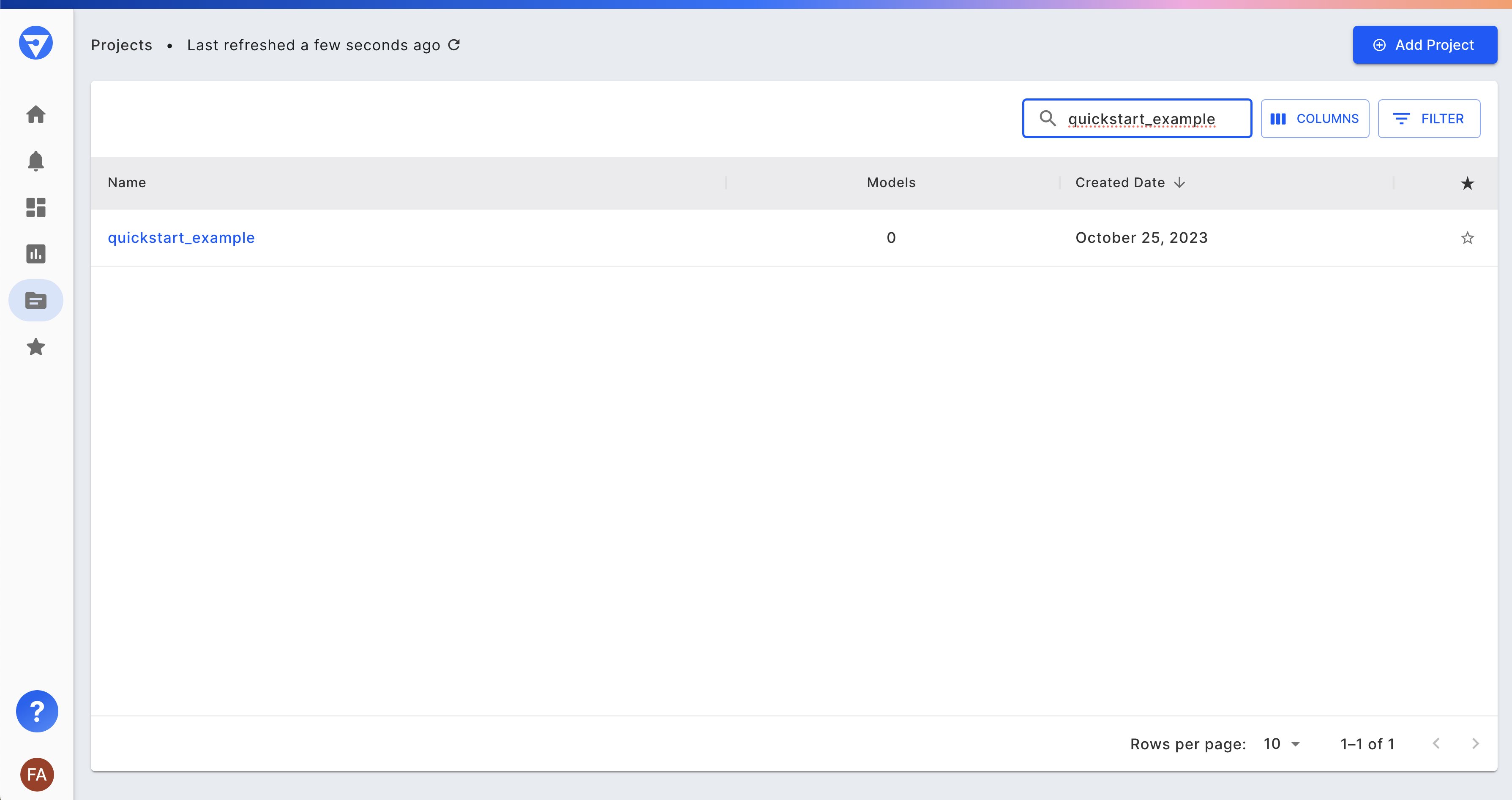

You should now see the newly created project on the Projects page in the Fiddler UI.

List All Projects

Using an existing project, you may list all the projects that you are authorized to view.

for project in fdl.Project.list():
    print(f'Project: {project.id} - {project.name}')

## This will print ALL project IDs and Names that you have access to.

Onboarding a Model

To onboard a model you need to define a ModelSpec and optionally a Model Task. If you do not specify a model task during Model creation it can be set later or left unset.

Define the ModelSpec

A ModelSpec object defines what role each column of your inference data serves in your model.

Fiddler supports five column roles:

1. Inputs (features),

2. Outputs (predictions),

3. Targets (ground truth labels),

4. Metadata (additional information passed along with the inference)

5. Custom features (additional information that Fiddler should generate like embeddings or enrichments)

model_spec = fdl.ModelSpec(
    inputs=['CreditScore', 'Geography', 'Gender', 'Age', 'Tenure', 'Balance', 'NumOfProducts', 'HasCrCard', 'IsActiveMember', 'EstimatedSalary'],
    outputs=['probability_churned'],
    targets=['Churned'],
    decisions=[],
    metadata=[],
    custom_features=[],
)

Define the Model Task

Fiddler supports a variety of model tasks. Create a ModelTask object and an additional ModelTaskParams object to specify the ordering of labels.

model_task = fdl.ModelTask.BINARY_CLASSIFICATION
task_params = fdl.ModelTaskParams(target_class_order=['no', 'yes'])

Infer the Model Schema

Onboard the model schema to Fiddler by passing in:

1. the data sample dataframe, called sample_df below

2. the ModelSpec object

3. the ModelTask and ModelTaskParams objects

4. the event/inference ID column and event/inference timestamp columns

MODEL_NAME = 'my_model'

model = fdl.Model.from_data(
    name=MODEL_NAME,
    project_id=fdl.Project.from_name(PROJECT_NAME).id,
    source=sample_df,
    spec=model_spec,
    task=model_task,
    task_params=task_params,
    event_id_col=id_column,
    event_ts_col=timestamp_column
)

Depending on the input size this step might take a moment to complete. It is not a local operation, but requires uploading the sample dataframe to the Fiddler HTTP API.

Review and Edit the Schema

Schema inference is just a helping hand. The resulting schema needs human review and potentially some edits, as documented in the section titled Customizing your Model Schema.

Define Model Columns Using Pandas DataFrame Column Types

When defining the columns of a model, use the data types from a Pandas DataFrame. Note that no type inference is performed; it is the responsibility of the user to ensure that the DataFrame's column types are correct. The mapping of column types is as follows:

Pandas	Fiddler (fdl.DataType)
int8	INTEGER
int16	INTEGER
int32	INTEGER
int64	INTEGER
uint8	INTEGER
uint16	INTEGER
uint32	INTEGER
uint64	INTEGER
float16	FLOAT
float32	FLOAT
float64	FLOAT
complex64	STRING
complex128	STRING
string	STRING
object	STRING
bool	BOOLEAN
boolean	BOOLEAN
datetime64[ns]	TIMESTAMP
datetime64[ns, UTC]	TIMESTAMP
timedelta64[ns]	STRING
period[freq]	STRING
category	CATEGORY
interval	STRING

MODEL_NAME = 'my_model'

model_schema = fdl.utils.column_generator.create_columns_from_df(sample_df)

model = fdl.Model(
    name=MODEL_NAME,
    project_id=project.id,
    schema=model_schema,
    spec=model_spec,
    task=model_task,
    task_params=task_params)

The resulting model's schema should be reviewed by the user. Any necessary edits should be made according to the guidelines outlined in the preceding section.

Onboard the Model

After making sure the schema looks good, the model can be onboarded with the following API call:

model.create()
